S.Bus Inverter R2
by
TimJC.
2
layer board of
0.36x0.91
inches
(9.09x23.11
mm).
Shared on
August 17th, 2014 00:50.

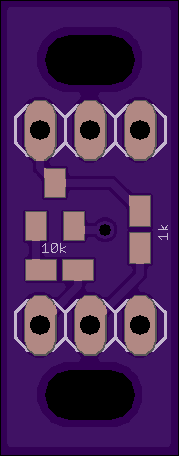

Futaba SBUS to serial inverter. This is used for connecting SBUS compatible RC RXs with Naze32/Flip32 multirotor flight controllers on input pin 4, and enabling “feature SERIALRX” in the Baseflight CLI. The holes in the board are for cable strain relief when used with standard 26AWG servo wire. The strain relief holes can be removed with flush/side cutters for mounting with pin headers instead. This is useful if you with to mount the inverter directly to the SBus output pins on the my Rx and/or input pins on the flight controller.
Parts:
B Blender
by
dustmason.
2
layer board of
1.77x0.89
inches
(44.91x22.61
mm).
Shared on
August 17th, 2014 00:18.
http://seanm.ca/stomp/bblender.html
S3860M-S Breakout v1.0
by
nickswalker.
2
layer board of
1.12x0.93
inches
(28.40x23.52
mm).
Shared on
August 17th, 2014 00:13.
Stra
Spoke
by
rx.
2
layer board of
1.80x1.74
inches
(45.72x44.15
mm).
Shared on
August 16th, 2014 22:57.
Spoke hub for AC control
BMI055 Breakout
by
sgstair.
2
layer board of
0.70x0.80
inches
(17.78x20.32
mm).
Shared on
August 16th, 2014 20:59.
Simple breakout of partial BMI055 functionality that I made to integrate this part into another project
C1: 1uF
C2: 0.01uF
R1: 10k (interrupt line pullup)
The capacitor values aren’t critical, but this chip should have some bypass cap installed for local power stability.
