Db 9 Breakout
by
2
layer board of
0.88x1.68
inches
(22.40x42.70
mm).
Shared on
June 7th, 2014 17:21.
A breakout board to take signals from a DB-9 output on my LED driver board. Has a status LED to indicate recieving power.

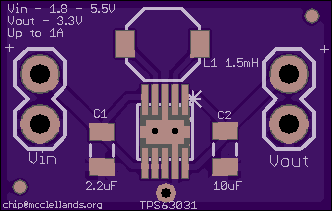

TI Switched Power Supply Eval Board
by
chipmc.
2
layer board of
0.66x0.42
inches
(16.87x10.67
mm).
Shared on
June 7th, 2014 14:45.
Buck - Boost High Efficiency
Aquarium Led Driver
by
2
layer board of
3.73x2.32
inches
(94.77x58.80
mm).
Shared on
June 7th, 2014 11:01.
A LED driver I designed for custom aquarium reef lighting. VCC is 48V, LED dimming is controlled via PWM, outputs 6 channels of up to 1A current controlled driving and one12V rail for driving cooling fans on the LED assemblies..
Output Led Rev 1
by
MakersBox.
2
layer board of
0.45x0.45
inches
(11.46x11.48
mm).
Shared on
June 7th, 2014 03:02.
This is the LED portion of the SnapNsew board. It provides a platform for a sewable LED/resistor with reliable connections for conductive thread through large pads.
More information at http://www.instructables.com/id/SnapNsew-An-Educational-Soft-Circuit-Platform/
or contact 648.ken@gmail.com
3x2 header to breadboard adapter
by
2
layer board of
0.50x0.40
inches
(12.70x10.16
mm).
Shared on
June 7th, 2014 00:10.
3x2 header to breadboard adapter
