Sot 23

by Jubal81.
Top
Bottom

2 layer board of 1.60x1.60 inches (40.72x40.64 mm).
Shared on January 12th, 2014 17:26.

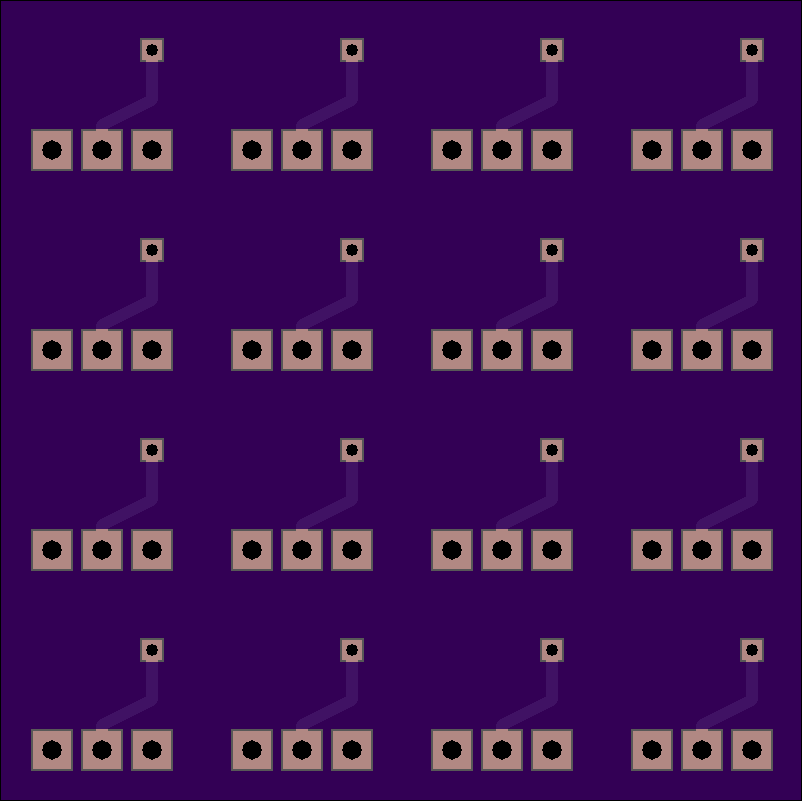

Breakout for J201/5457

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

SD Drive

by Ritronic.
Top
Bottom

2 layer board of 1.97x1.97 inches (50.01x50.01 mm).
Shared on January 12th, 2014 00:31.

SD Card PCB designed to interface easily with microprocessors over SPI. Designed around 3M™ Card Connector SD™

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

njsharkracer.12vdc lead acid battery desulfator

by Warhawk.
Top
Bottom

2 layer board of 1.31x1.80 inches (33.17x45.62 mm).
Shared on January 11th, 2014 11:56.

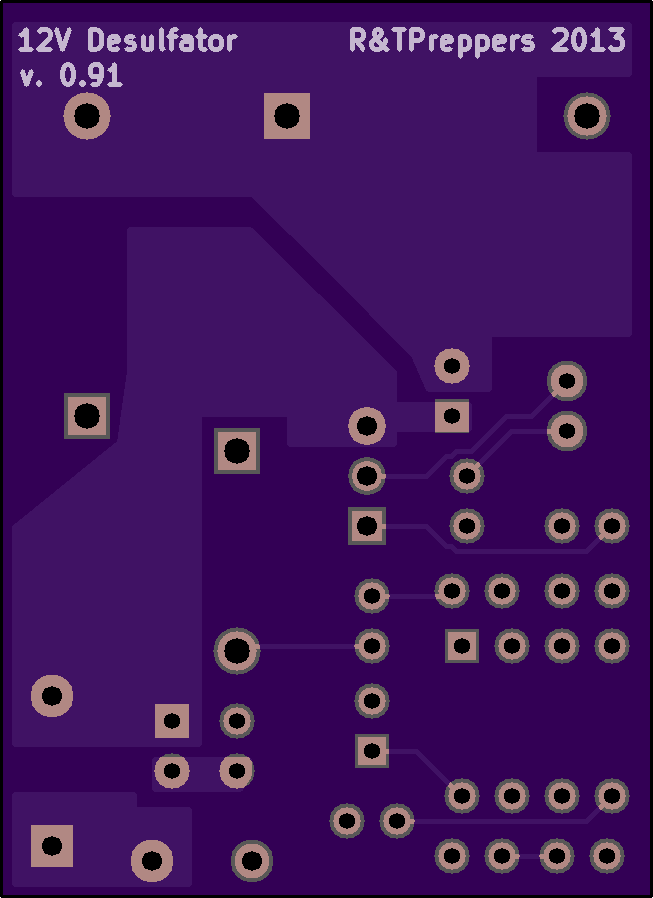

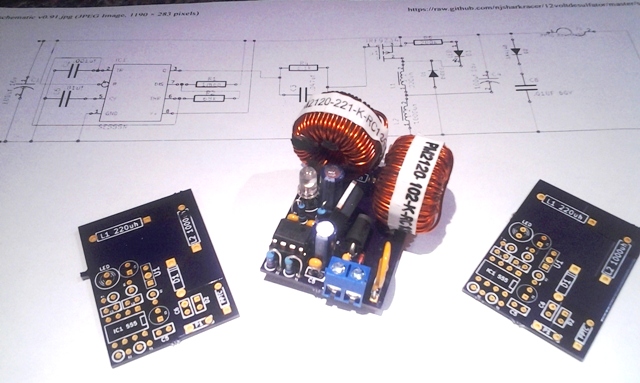

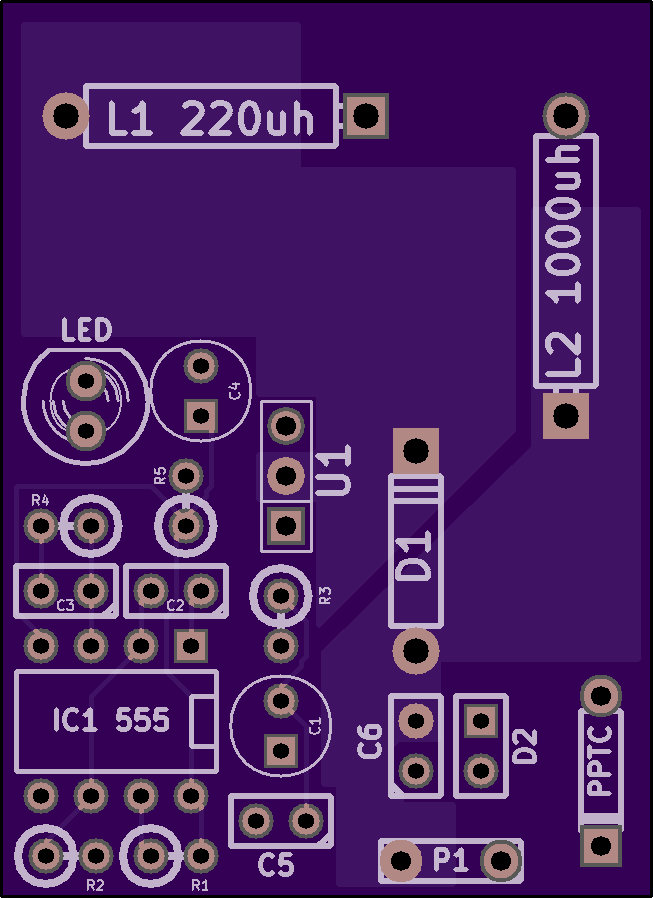

12vdc Desulfator

njsharkracer.12vdc lead acid battery desulfator

https://github.com/njsharkracer/12voltdesulfator

http://www.youtube.com/playlist?list=PL82DFDAD35E4BFC59

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

Haunting Mids V3

by mmolteratx.
Top
Bottom

2 layer board of 1.38x2.16 inches (34.95x54.94 mm).
Shared on January 11th, 2014 05:06.

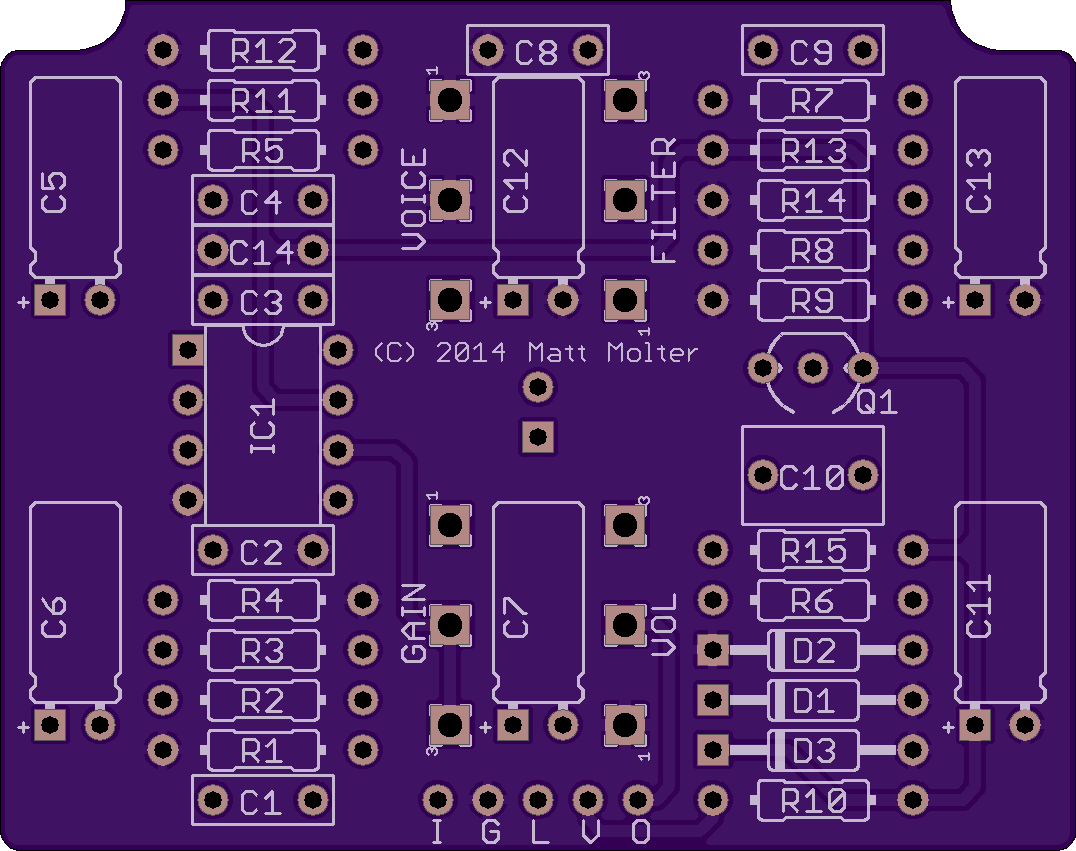

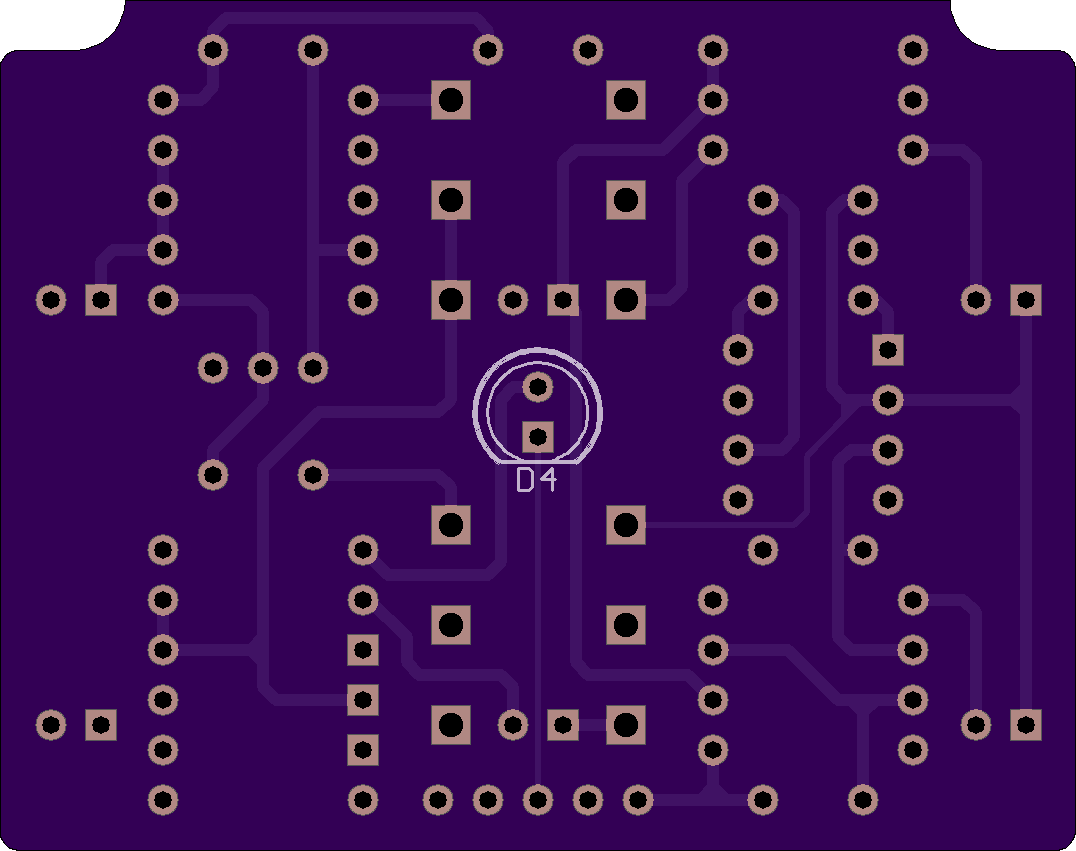

Big Muff without tone control/recovery stage. Internal gain trimmer. Clone of the Haunting Mids V3 Fuzz Pedal sized for a Hammond 1590A type enclosure.

Schem:

https://dl.dropboxusercontent.com/u/8021347/HMv3.png

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

Rat4k

by mmolteratx.
Top
Bottom

2 layer board of 2.15x1.70 inches (54.64x43.18 mm).
Shared on January 11th, 2014 03:24.

Rat with variable Ruetz mod

Schematic: https://dl.dropboxusercontent.com/u/8021347/Rat.png

Order board. Download. Permalink. Embed order link.
