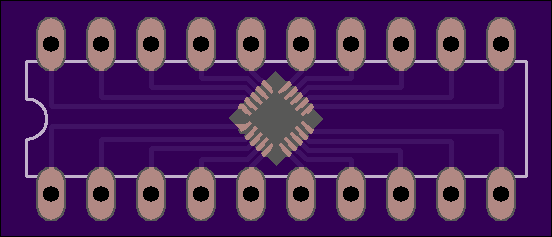

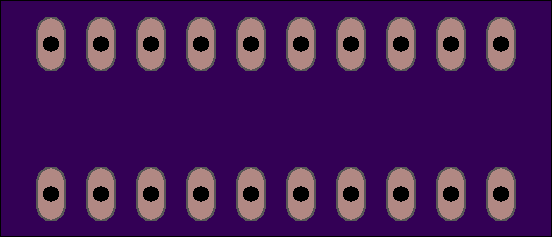

MPR 121 qfn20 to dil20

by mbruck.
Top
Bottom

2 layer board of 1.10x0.47 inches (28.02x12.01 mm).
Shared on January 10th, 2014 22:24.

QFN 20 to DIL20. Project is designed for Freescale mpr121 touch controller, but it can be used as genereral QFN20 DIL20 package.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

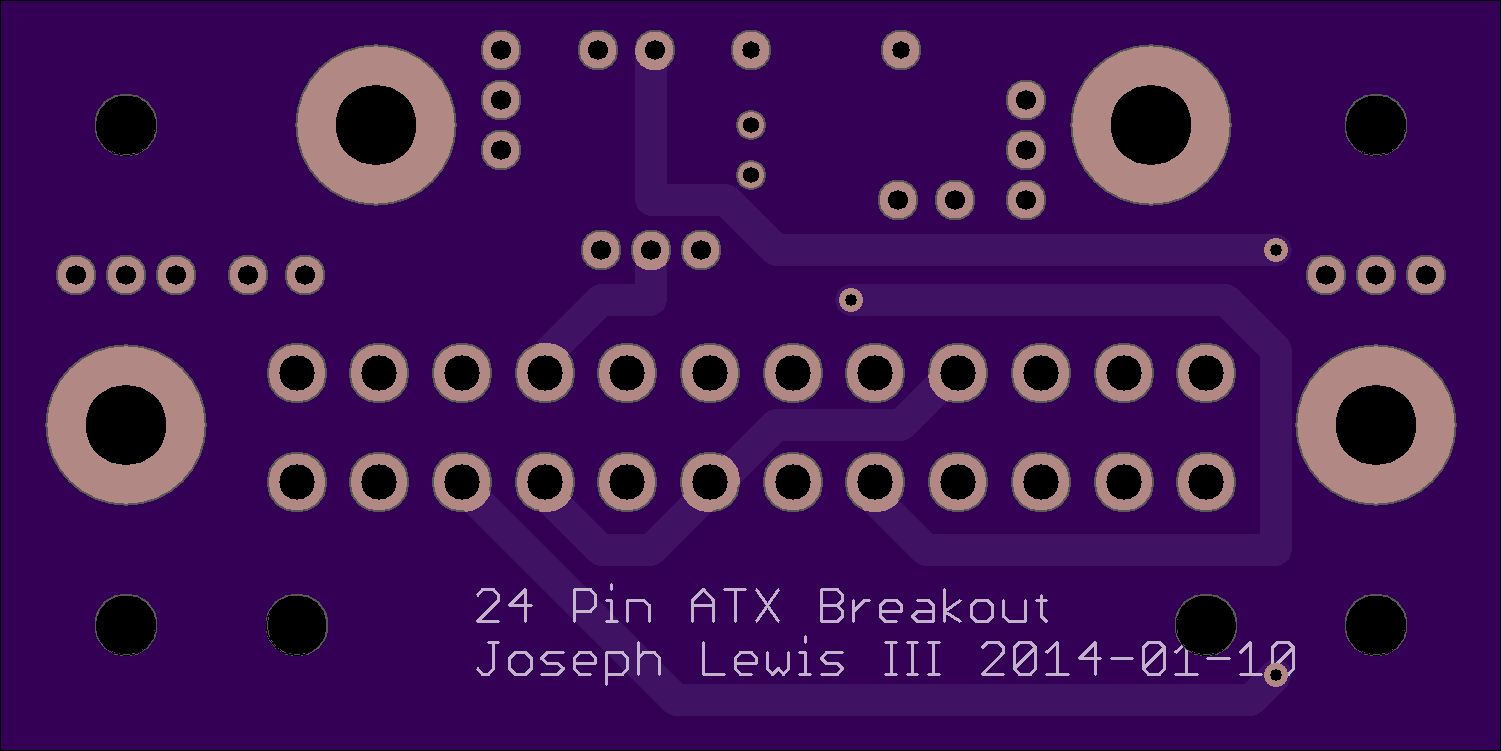

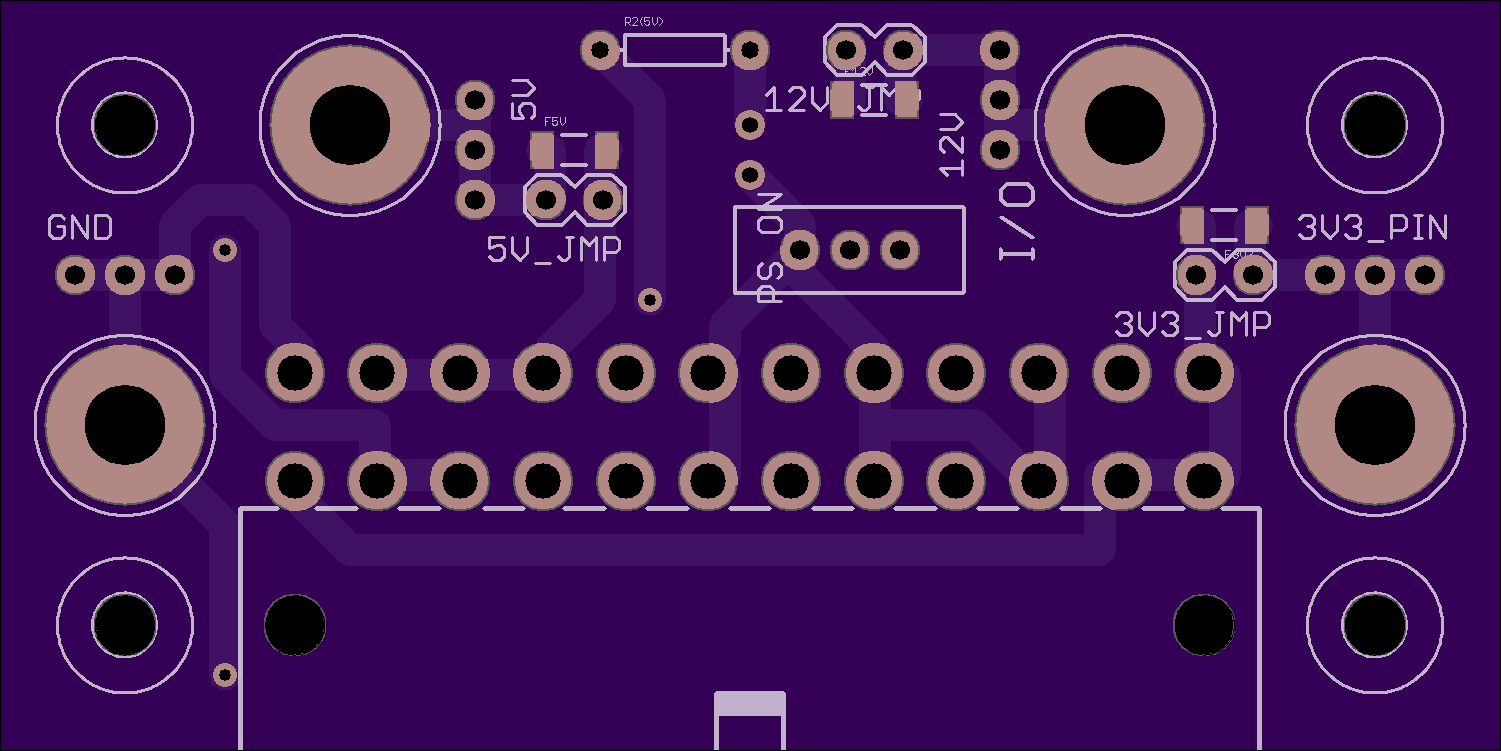

ATX Breakout V2

by joehms22.
Top
Bottom

2 layer board of 3.00x1.50 inches (76.20x38.13 mm).
Shared on January 10th, 2014 19:43.

atx breakout board second edition

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

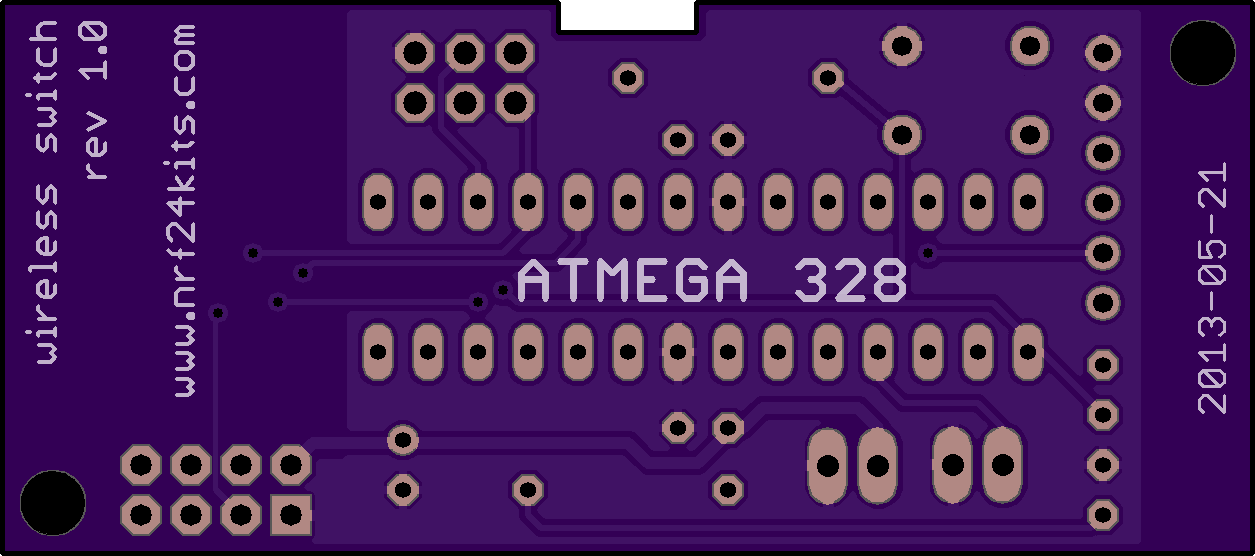

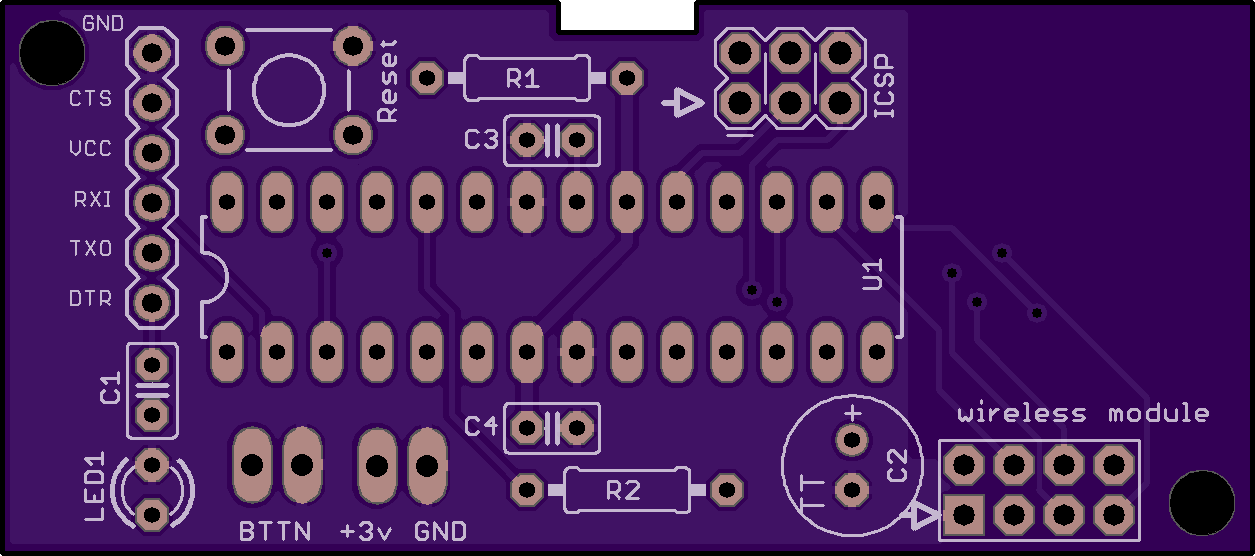

wireless switch

by endy.
Top
Bottom

2 layer board of 2.51x1.11 inches (63.75x28.27 mm).
Shared on January 10th, 2014 12:12.

board with nrf24L01 and ATMEGA328P to turn a [Wall Plate Light Rocker Switch Panel] (http://dx.com/p/1-gang-wall-plate-light-rocker-switch-panel-white-129334) into a wireless switch

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

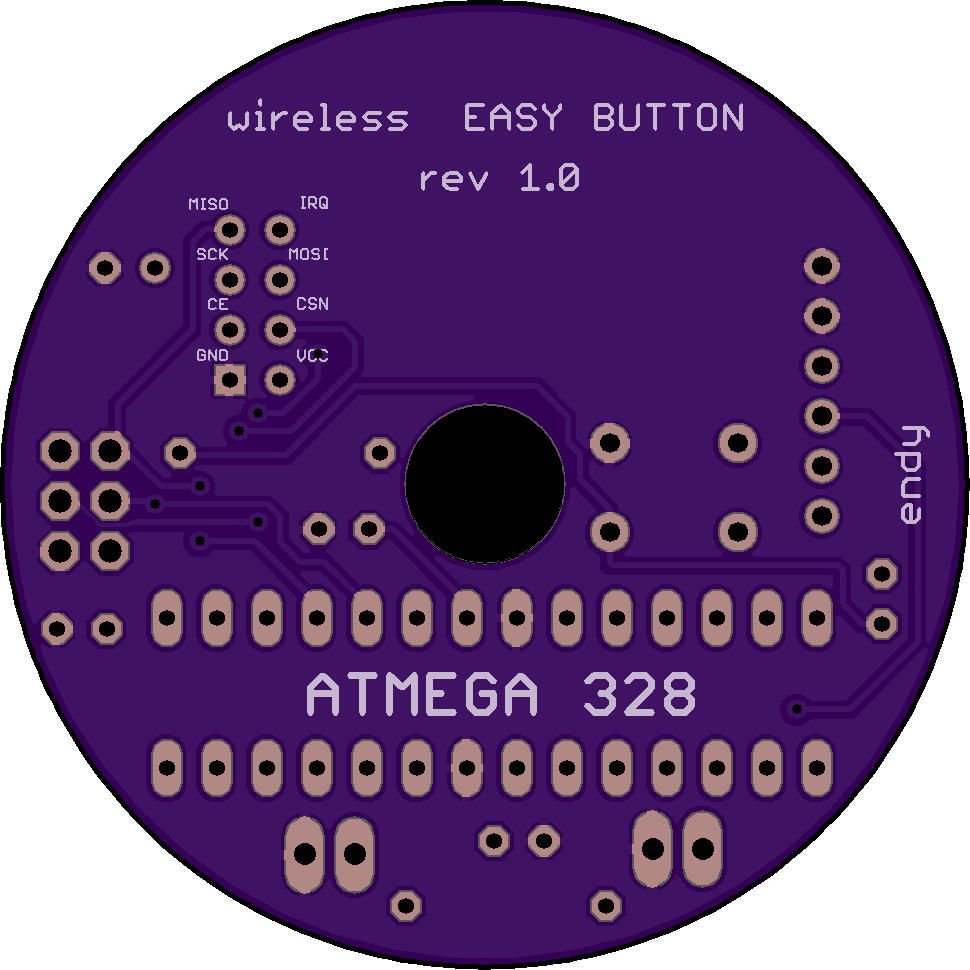

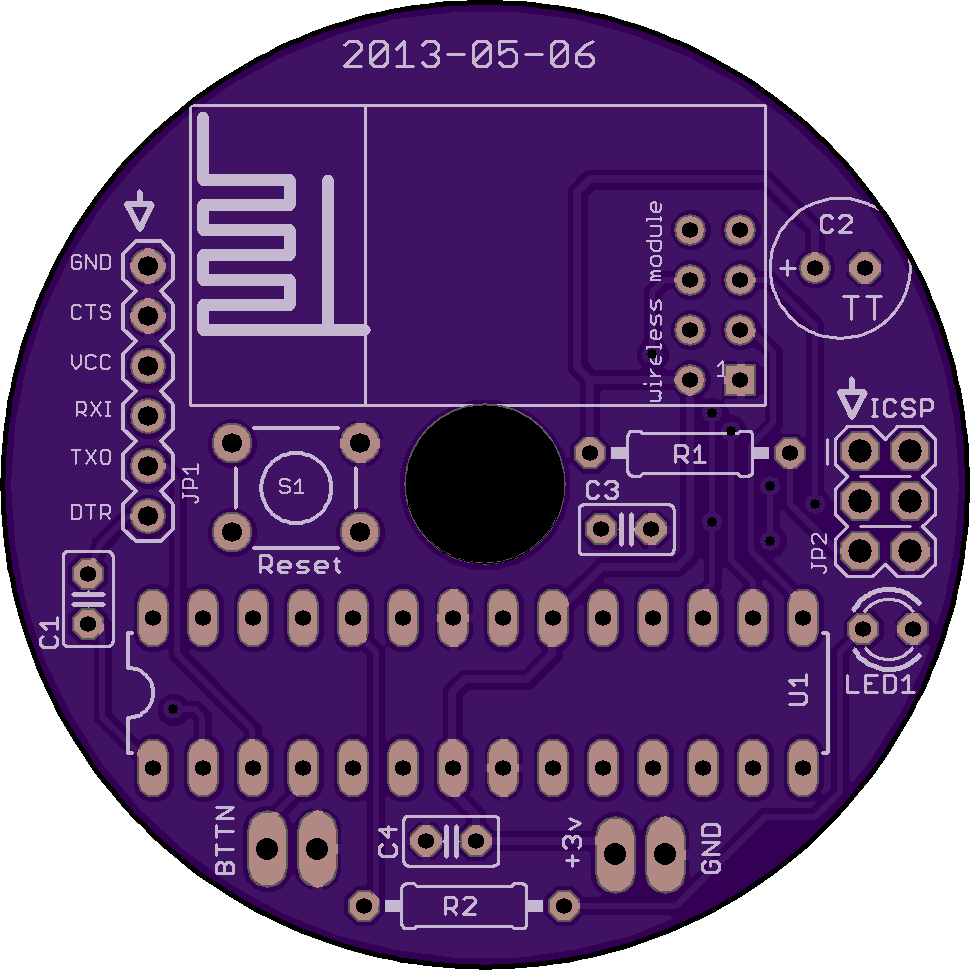

wireless easy button

by endy.
Top
Bottom

2 layer board of 1.94x1.94 inches (49.28x49.28 mm).
Shared on January 10th, 2014 12:11.

board with nrf24L01 and ATMEGA328P which fits into STAPLES Easy button

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

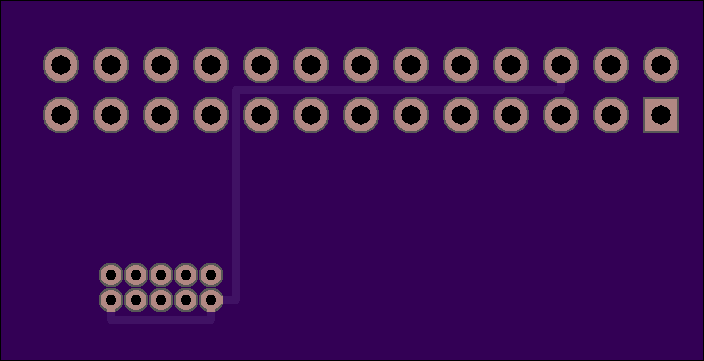

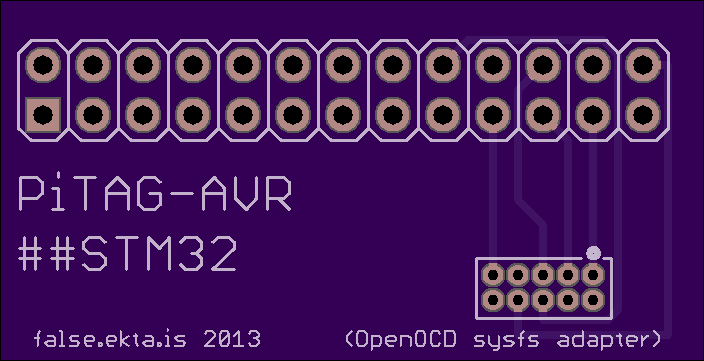

PiTag-AVR

by karlp.
Top
Bottom

2 layer board of 1.41x0.72 inches (35.74x18.29 mm).
Shared on January 10th, 2014 09:42.

raspi openocd sysfs avr jtag adapter

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
