PDuino Control Board 0.3x
by
Tamathumper.
2
layer board of
2.19x0.71
inches
(55.73x17.98
mm).
Shared on
January 8th, 2014 23:50.
PDuino Control Board 0.3x
SOIC-8 Breakout Rev. A1
by
daspilker.
2
layer board of
0.45x0.55
inches
(11.46x13.97
mm).
Shared on
January 8th, 2014 22:42.
RJ45 Breakout Rev. A1
by
daspilker.
2
layer board of
1.00x0.60
inches
(25.43x15.27
mm).
Shared on
January 8th, 2014 19:49.

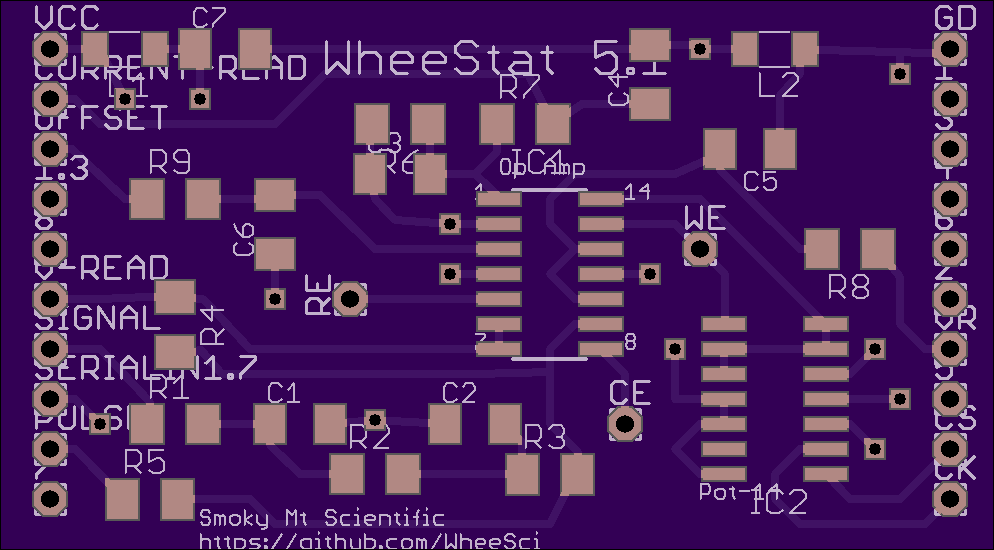

WheeStat5.1
by
SmokyMtSci.
2
layer board of
1.99x1.10
inches
(50.50x27.94
mm).
Shared on
January 8th, 2014 18:34.
Open source potentiostat for science ed.
For schematic, build instructions, open source software, Google “WheeStat” to find Public Lab research notes. Software & GUI are on GitHub (URL in Public Lab notes).

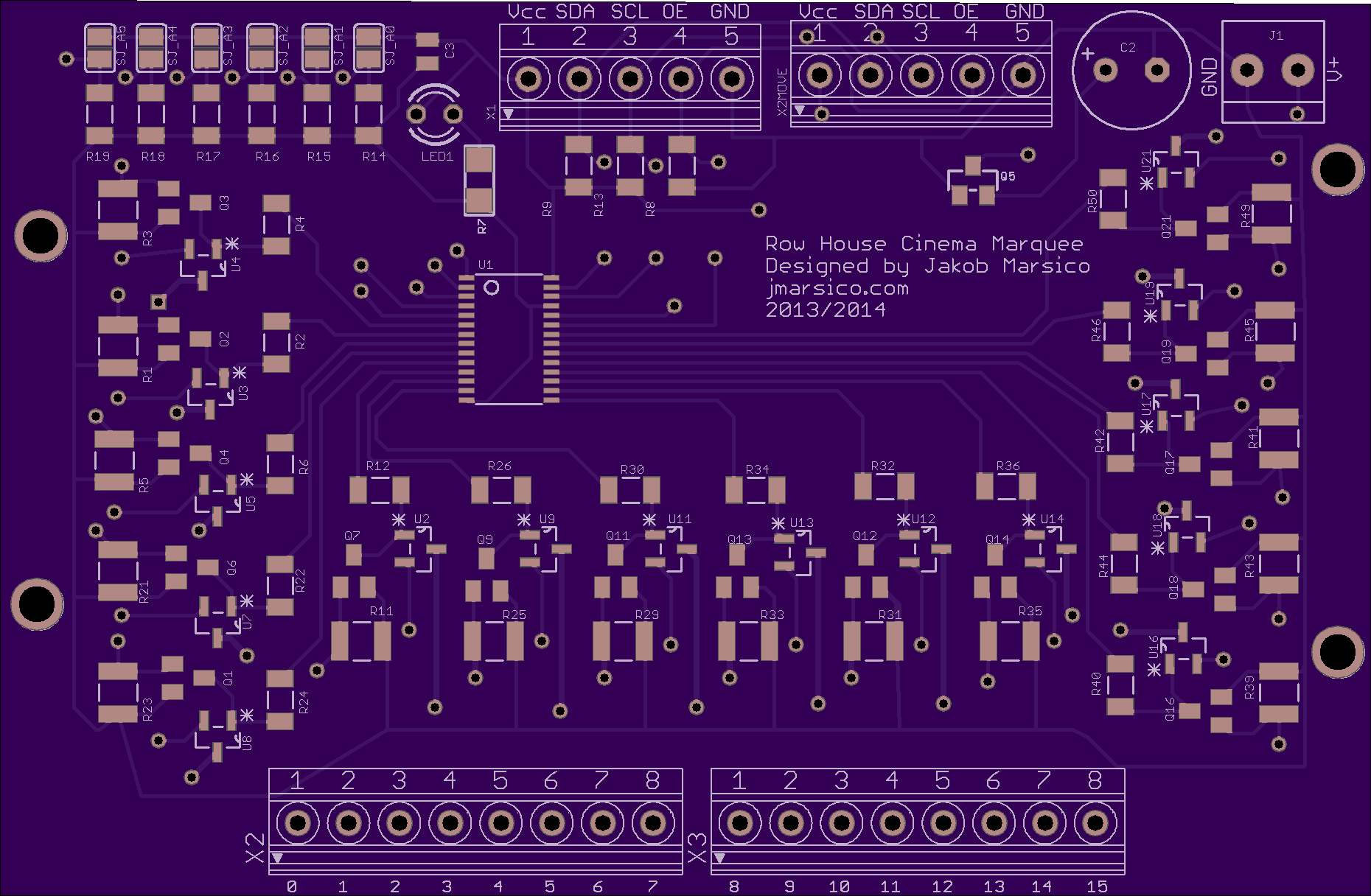

PCA9685_mosfet_v2
by
jmarsico.
2
layer board of
3.72x2.43
inches
(94.41x61.72
mm).
Shared on
January 8th, 2014 15:25.
i2c controlled LED driver board with pca9685 chip and mosfet.
