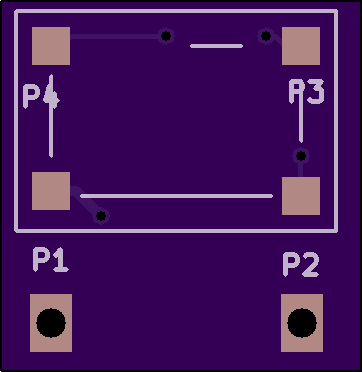

Epic_Pwr_Bkout
by
A_Renner.
2
layer board of
0.72x0.74
inches
(18.39x18.90
mm).
Shared on
December 10th, 2013 20:14.

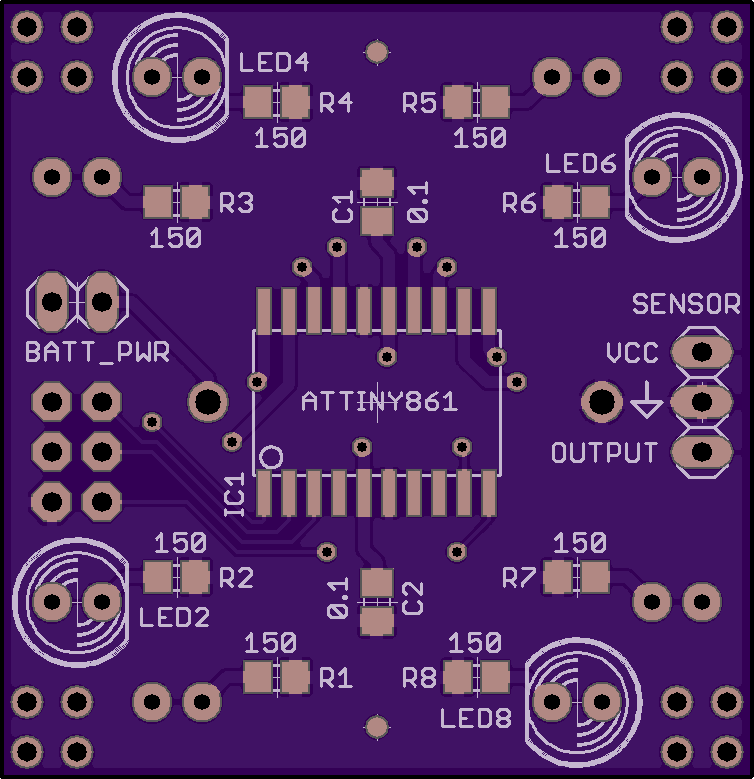

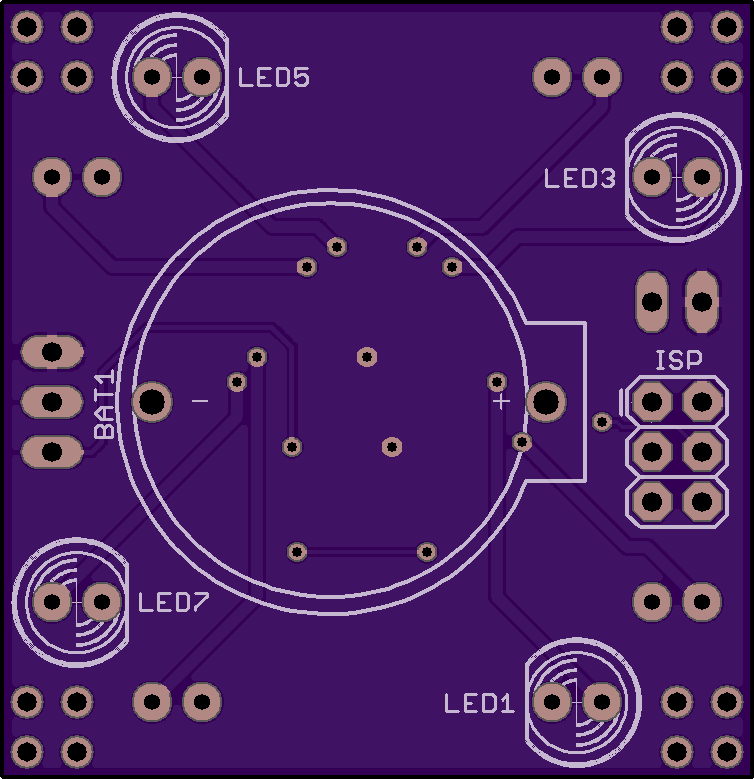

Tesseract2
by
2
layer board of
1.51x1.56
inches
(38.30x39.60
mm).
Shared on
December 10th, 2013 19:08.
From Jotunheim with love, it’s the Tesseract! It pulses with hypnotic blue light!
I put a copy of this board fully populated and programmed inside a standard acrylic baseball presentation case that’s been sanded inside with 1000 grit sandpaper and stuffed with synthetic batting.
It’s controlled by a hall-effect sensor, so there’s no external switch or anything else to detract from the presentation. Just swipe with a magnet to wake it, change modes, and put it back to sleep. It goes to sleep automatically after a period of time. When in sleep mode it only uses a few micro-amperes of current, meaning it’ll sleep for months at least.
Source code for the firmware is available at:
http://code.hix.io/projects/tesseract2/
You can grab a copy to compile and burn with mercurial by running:
hg clone http://code.hix.io/projects/tesseract2/
It should compile cleanly on Linux, OS X, and FreeBSD. You’ll need avr-libc and avrdude installed. The Makefile compiles, burns, and checks the microcontroller! :D

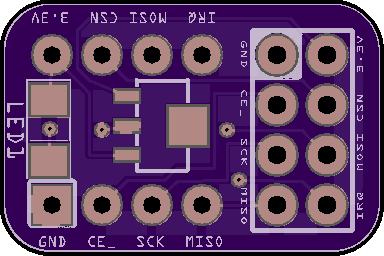

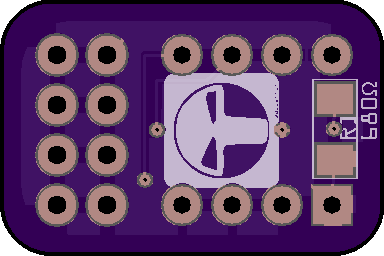

[Tested: OK!] nRF24L01+ module breadboard friendly
by
wallerron.
2
layer board of
0.77x0.51
inches
(19.51x13.03
mm).
Shared on
December 10th, 2013 01:30.
For quite some time now I wanted a converter board for nRF24L01+ module, to work on a breadboard.
Until now I hadn’t the confidence, but here it is. 6 mil tracings, one 3.3v regulator (SOT-89) and (optional) a pwr LED with resistor.

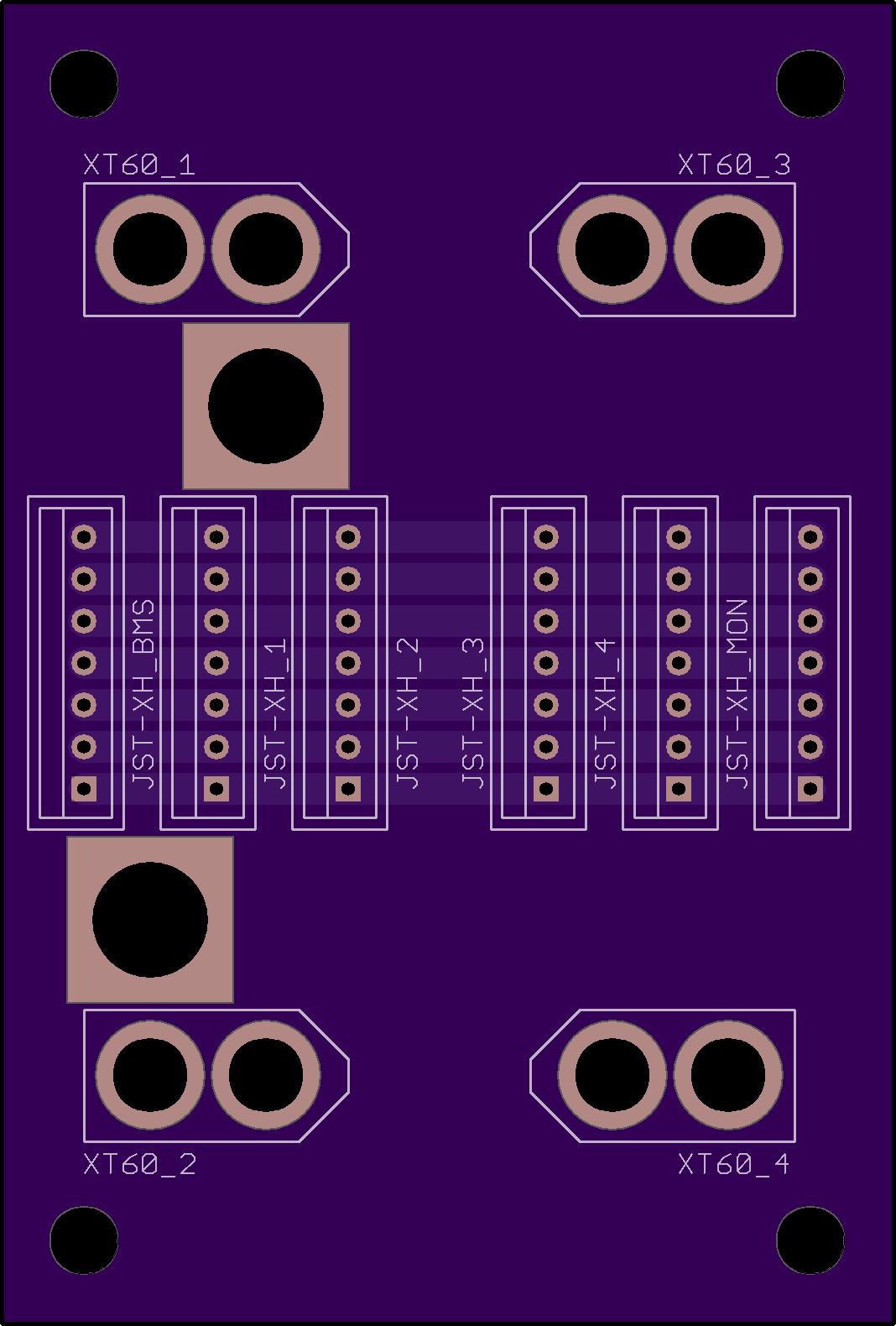

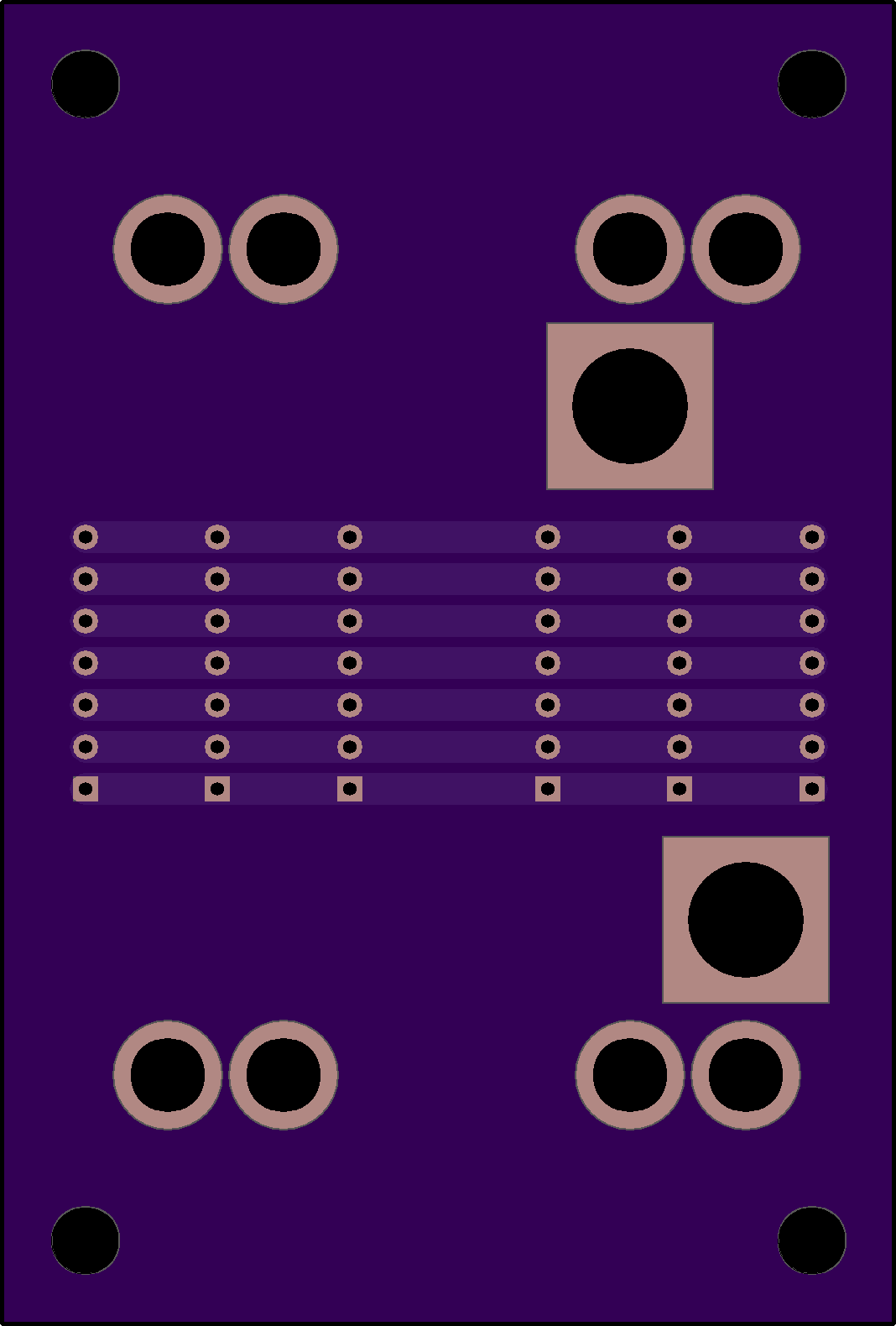

Lipo Balance Board
by
izeman.
2
layer board of
2.14x3.16
inches
(54.28x80.26
mm).
Shared on
December 9th, 2013 10:33.
ebike 6s Balancer Board

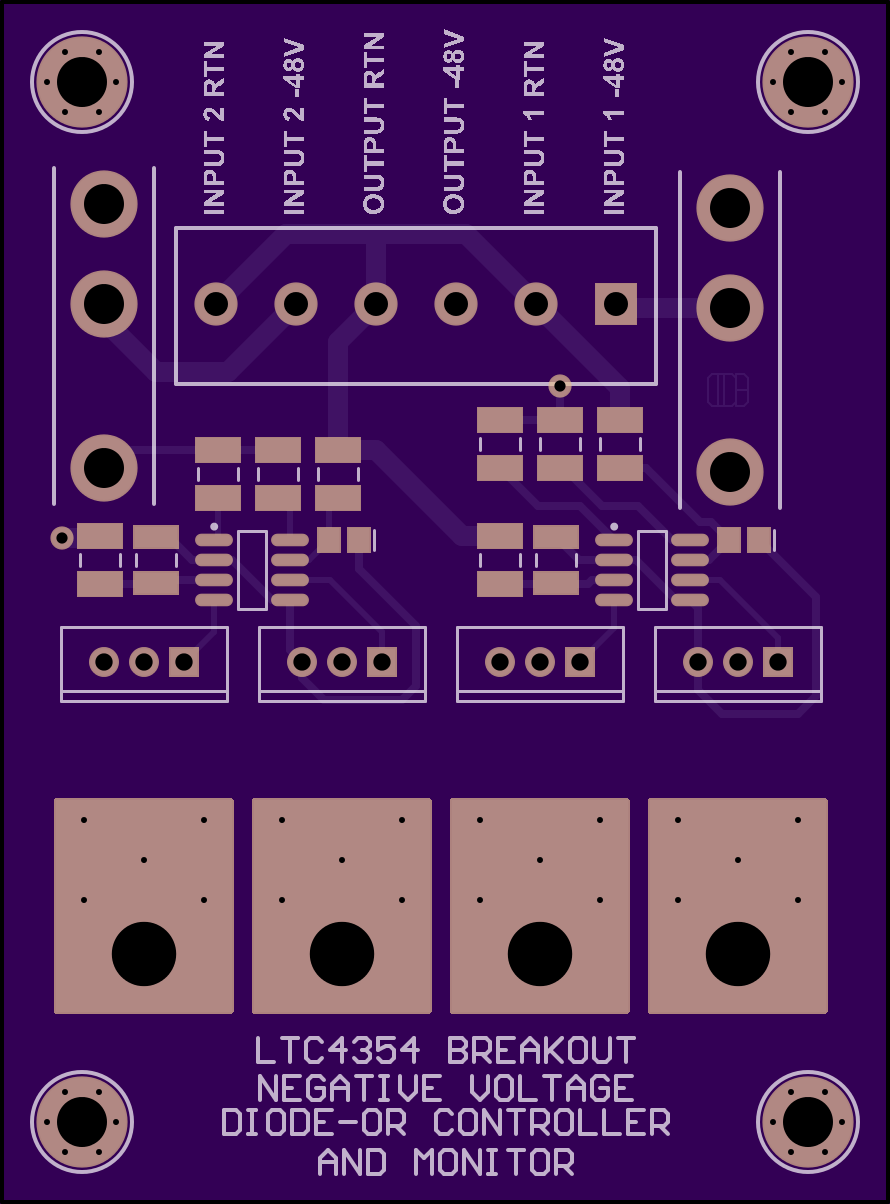

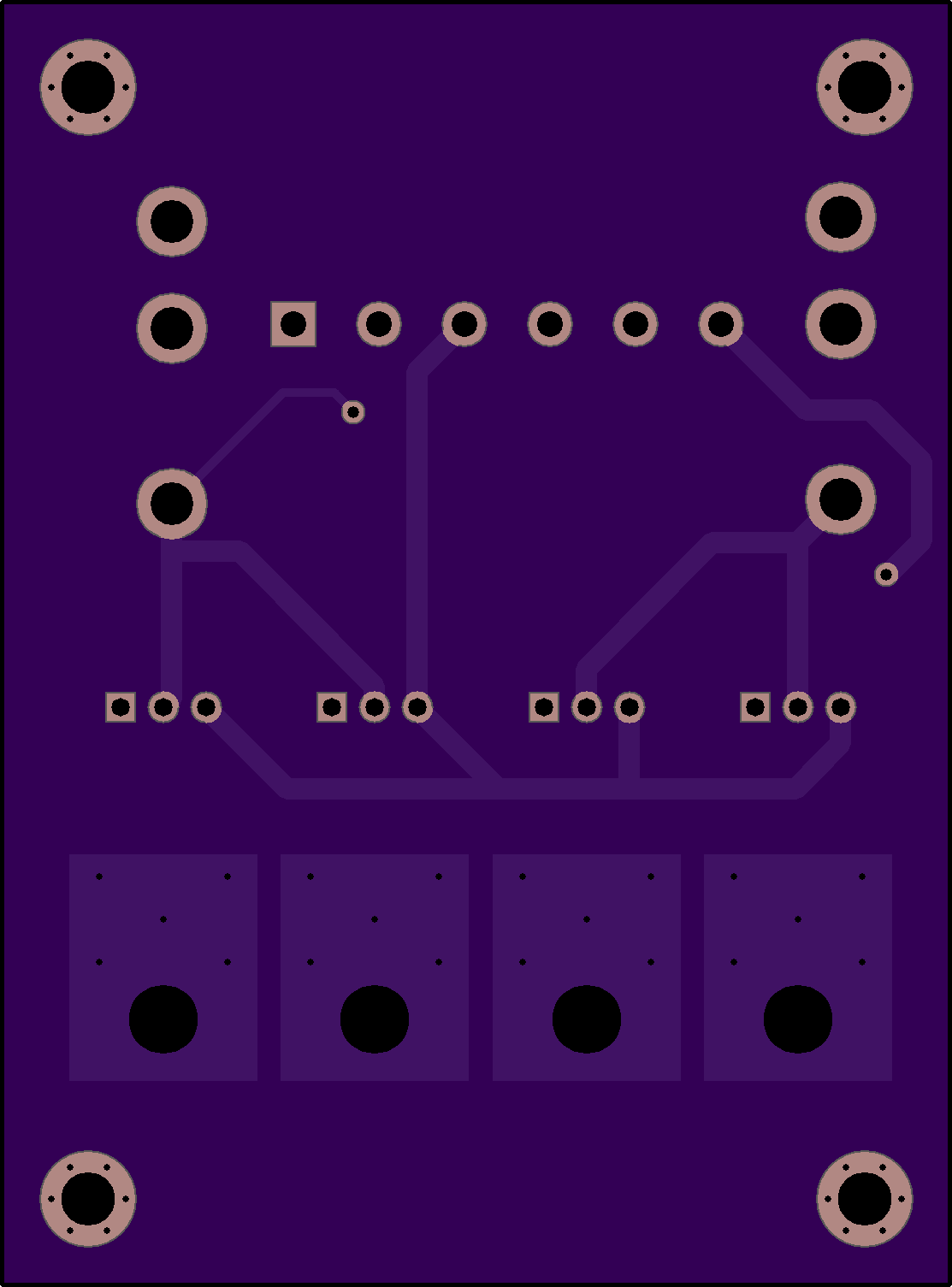

PSU Breakout
by
echoskope.
2
layer board of
2.23x3.01
inches
(56.54x76.45
mm).
Shared on
December 9th, 2013 05:42.
