TWI - Tangible Wireless IMU

by drix.
Top
Bottom

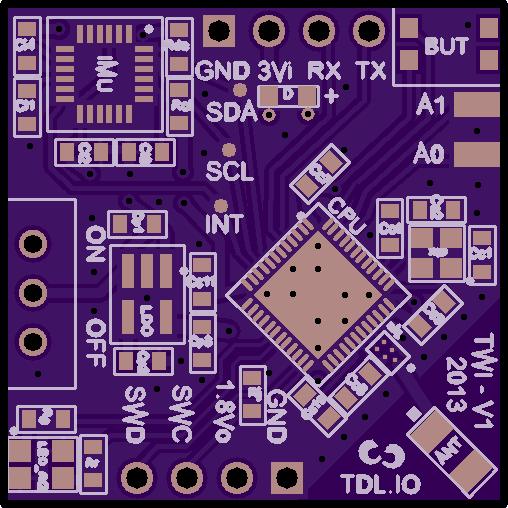

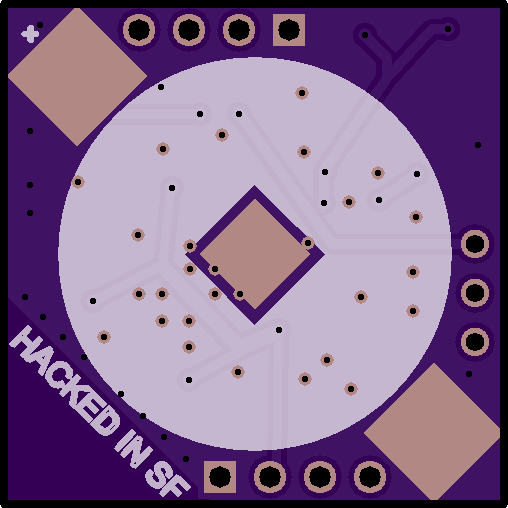

2 layer board of 1.02x1.02 inches (25.81x25.81 mm).
Shared on December 9th, 2013 05:03.

http://upverter.com/honnet

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

MAX44009 Breakout v1

by stottsc.
Top
Bottom

2 layer board of 0.40x0.61 inches (10.16x15.54 mm).
Shared on December 9th, 2013 02:42.

Breakout for MAX44009 Light Sensor

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

Tinusaur Board v0.1 m2

by boyanov.
Top
Bottom

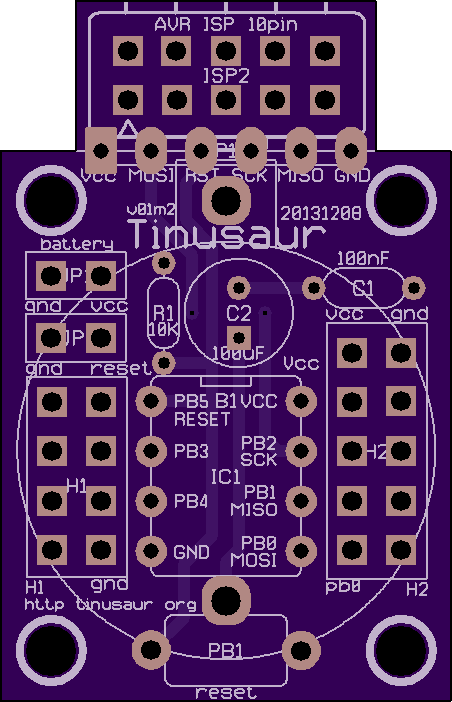

2 layer board of 0.90x1.40 inches (22.96x35.66 mm).
Shared on December 8th, 2013 21:13.

The Tinusaur - a minimal micro-controller hardware configuration based on Atmel AVR ATtiny family of products and more specifically those with DIP-8 case such as ATtiny25/ATtiny45/ATtiny85, ATtiny13 as well as their variations.

Circuit is available at 123d.circuits.io

The home of the Tinusaur is at this address: http://tinusaur.wordpress.com

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

AD849x breakout board

by nsayer.
Top
Bottom

2 layer board of 0.85x0.40 inches (21.62x10.16 mm).
Shared on December 8th, 2013 16:59.

Breadboard adapter for AD849x thermocouple amp

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

[Tested: OK!] PLCC6 LED for selection of CA/CC

by wallerron.
Top
Bottom

2 layer board of 0.52x0.32 inches (13.08x8.10 mm).
Shared on December 7th, 2013 18:20.

1x PLCC-6 5050 RGB LED

3x 100-500R resistors (mounted on anode side)

Intended for a breadboard and thus spans 400mils (reaching both + and - rails)

Order board. Download. Permalink. Embed order link.
