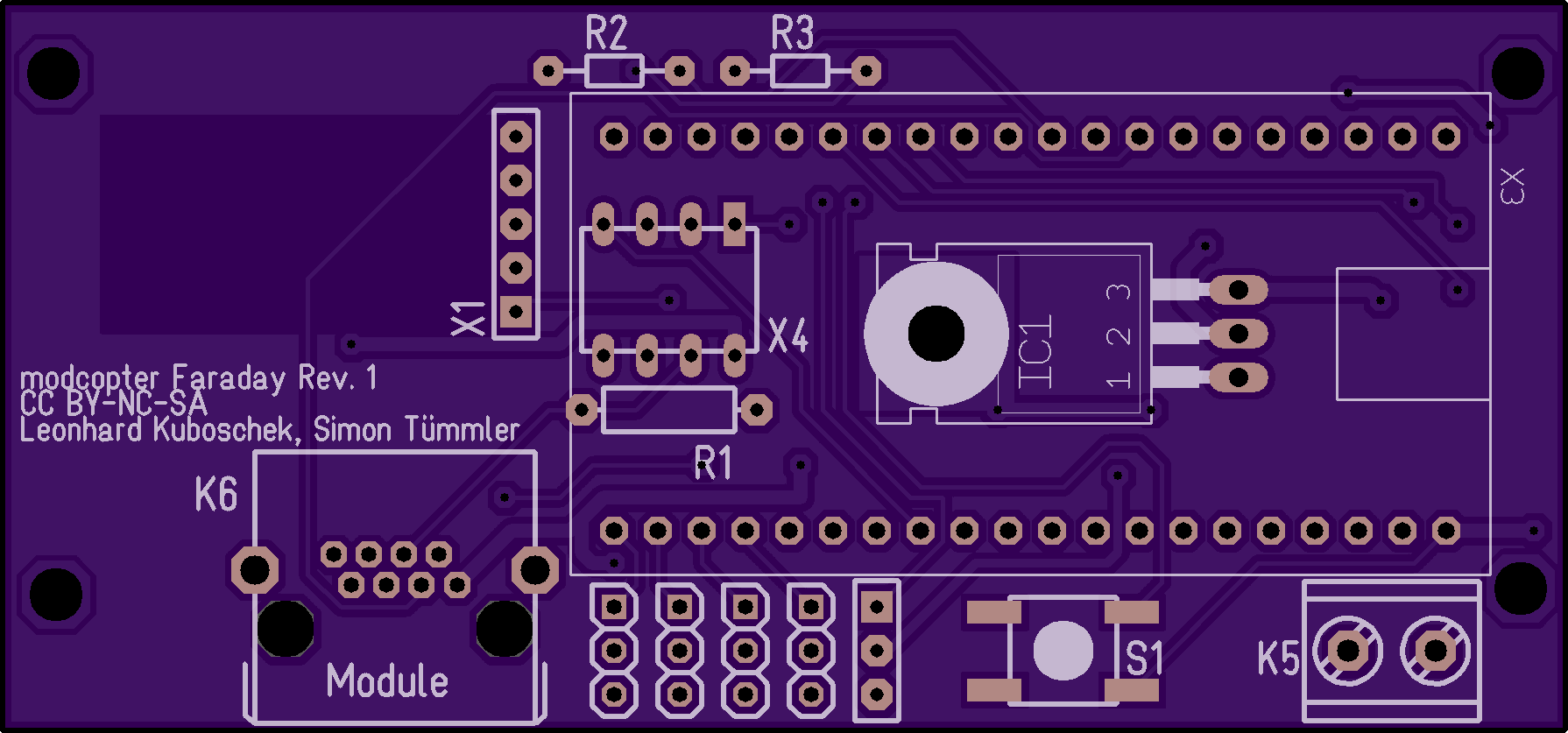

modcopter Faraday Rev. 1
by
bklw.
2
layer board of
3.58x1.68
inches
(90.96x42.55
mm).
Shared on
October 24th, 2013 19:05.
A quadcopter mainboard. Supports modules. More at m.hw.is

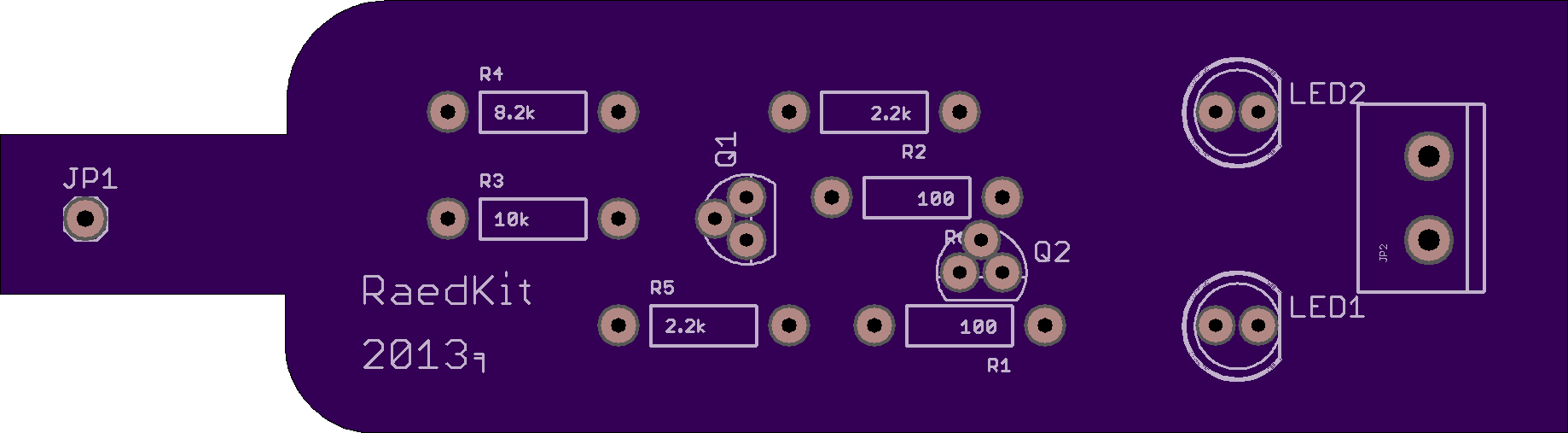

Simple Logic Probe
by
Raedkit.
2
layer board of
3.68x1.01
inches
(93.35x25.73
mm).
Shared on
October 24th, 2013 18:21.
Simple logic probe with resistors,transistors, and LEDs. The pin on the left side is for a probe which could just be a right-angle header pin. The right side is for a screw terminal for hooking in alligator clips,banana clips, etc. The transistors I used are 2N3906 for Q1, and 2N2906 for Q2. One LED indicates logic high, and the other indicates logic low.
tinyboard
by
totof.
2
layer board of
1.54x1.10
inches
(39.04x27.94
mm).
Shared on
October 24th, 2013 14:53.
attiny board V0.1
Warning : it’s my first pcb !! not tested, feedback when received
more info :cmeypoub@sfr.fr
it’s working !!

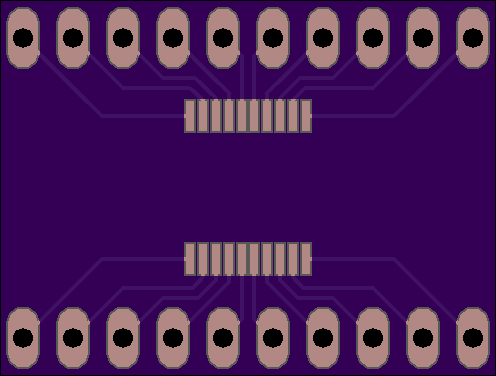

SSOP20 Dumb Breakout
by
Surou.
2
layer board of
0.99x0.75
inches
(25.15x19.05
mm).
Shared on
October 24th, 2013 01:27.
SSOP20

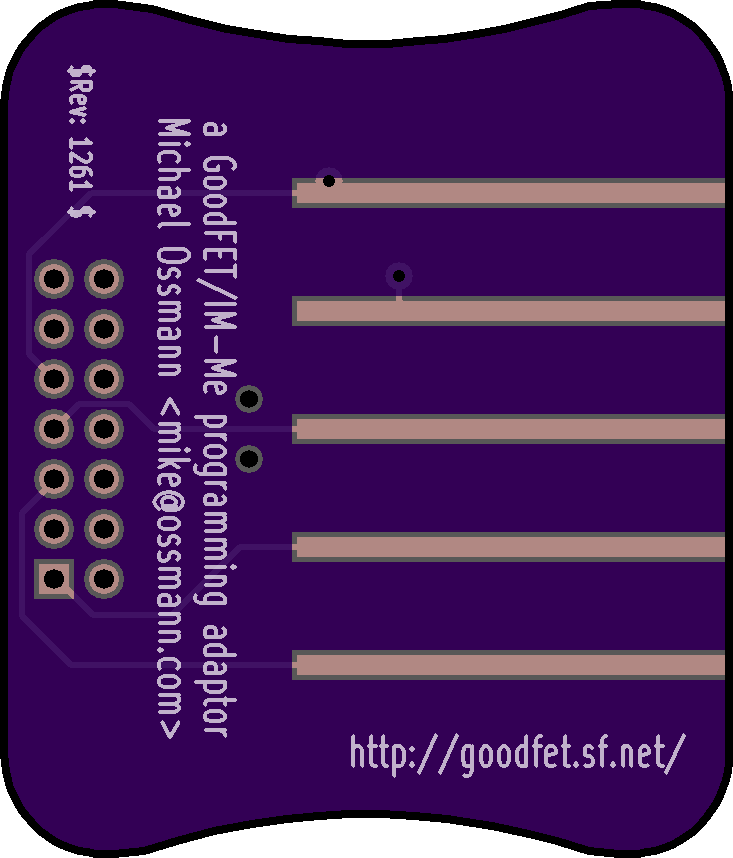

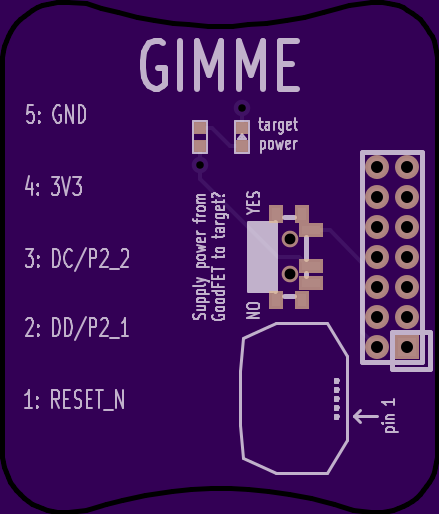

GIMME r1261
by
mossmann.
2
layer board of
1.47x1.72
inches
(37.24x43.59
mm).
Shared on
October 23rd, 2013 23:46.
Spring pin adapter for programming an IM-Me with a GoodFET.
http://sourceforge.net/p/goodfet/code/HEAD/tree/contrib/gimme/
