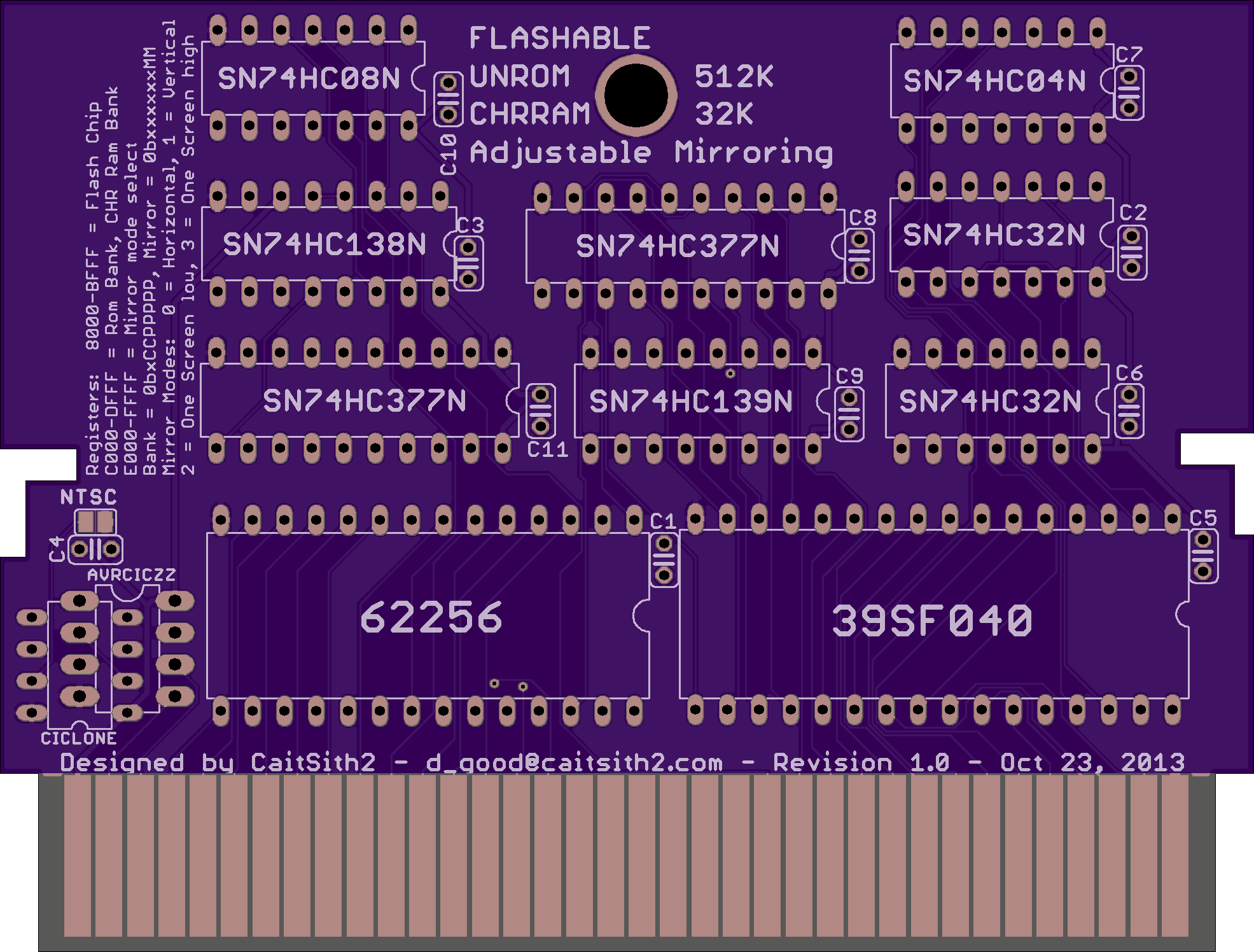

UNRom 512+
by
caitsith2.
2
layer board of
3.94x2.99
inches
(100.08x75.95
mm).
Shared on
October 23rd, 2013 16:21.
The board has the following capabilities:
- 512K PRG rom
- 32K CHR Ram
- self-flashing (no need for a battery)
- On the fly mirroring mode change
- Horizontal
- Vertical
- One-Screen
The original version of the board, as seen in Battle Kid 2, and other upcoming games, does not have full on the fly mirroring change, just partial, if the One-screen mirroring jumper is soldered. This one does away with the mirroring jumpers altogether.
Also, the board can be mounted with either Ciclone, a closed source cic chip, or with AVRCICzz, an open source cic chip.
(Really wish OSH Park would allow me to upload the Schematics along side the board file, inside of a zip file.) The matching schematics can be downloaded here

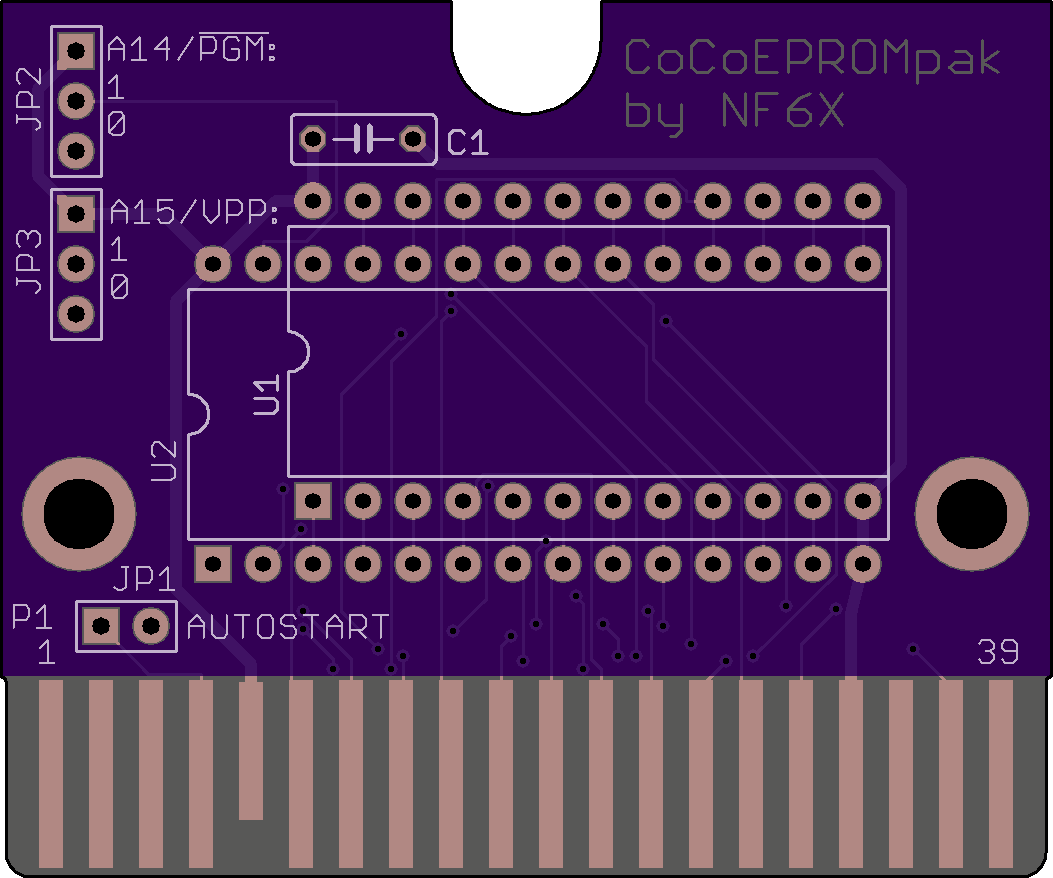

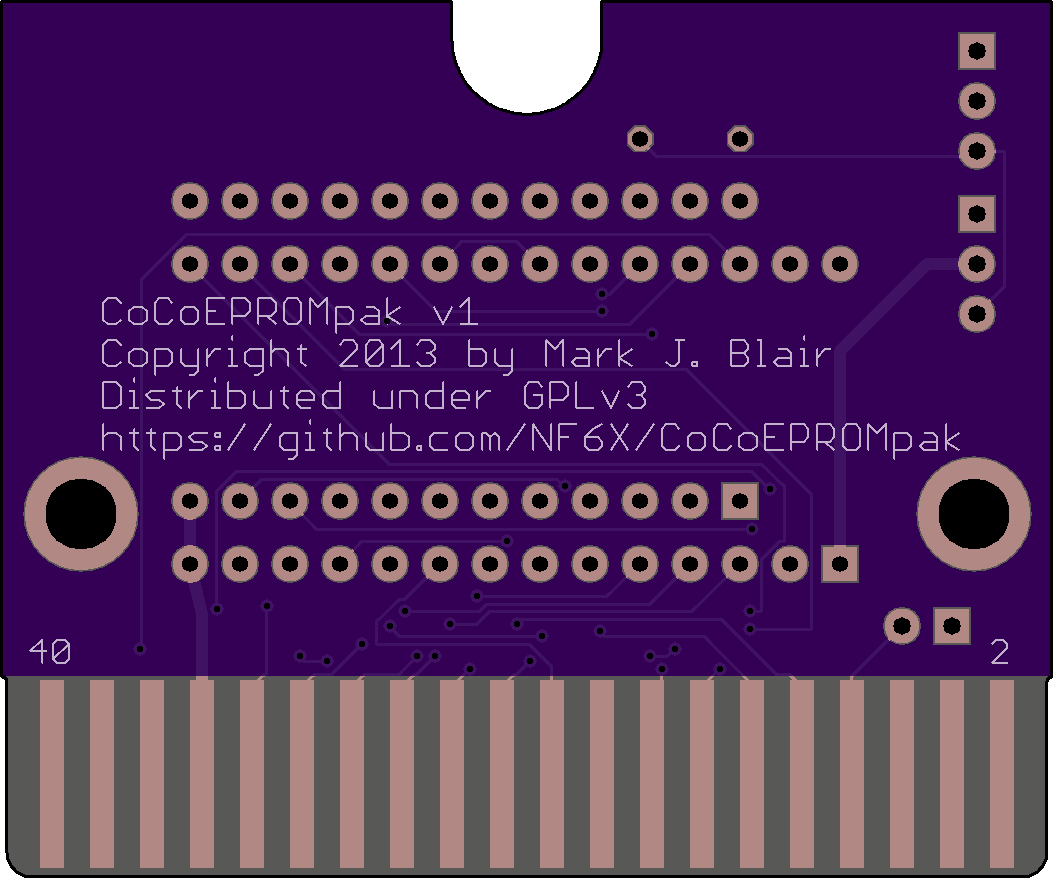

CoCoEPROMpak 1.0
by
NF6X.
2
layer board of
2.11x1.76
inches
(53.47x44.60
mm).
Shared on
October 23rd, 2013 06:11.
4k-64k EPROM-based Cartridge for Tandy/TRS-80 Color Computer.
See http://www.nf6x.net/tag/cocoeprompak/ for more details.
All design files available at https://github.com/NF6X/CoCoEPROMpak under GPLv3 license.
Snes Tototek Adapter Dip v2
by
Helder.
2
layer board of
1.12x1.42
inches
(28.35x35.94
mm).
Shared on
October 23rd, 2013 00:06.

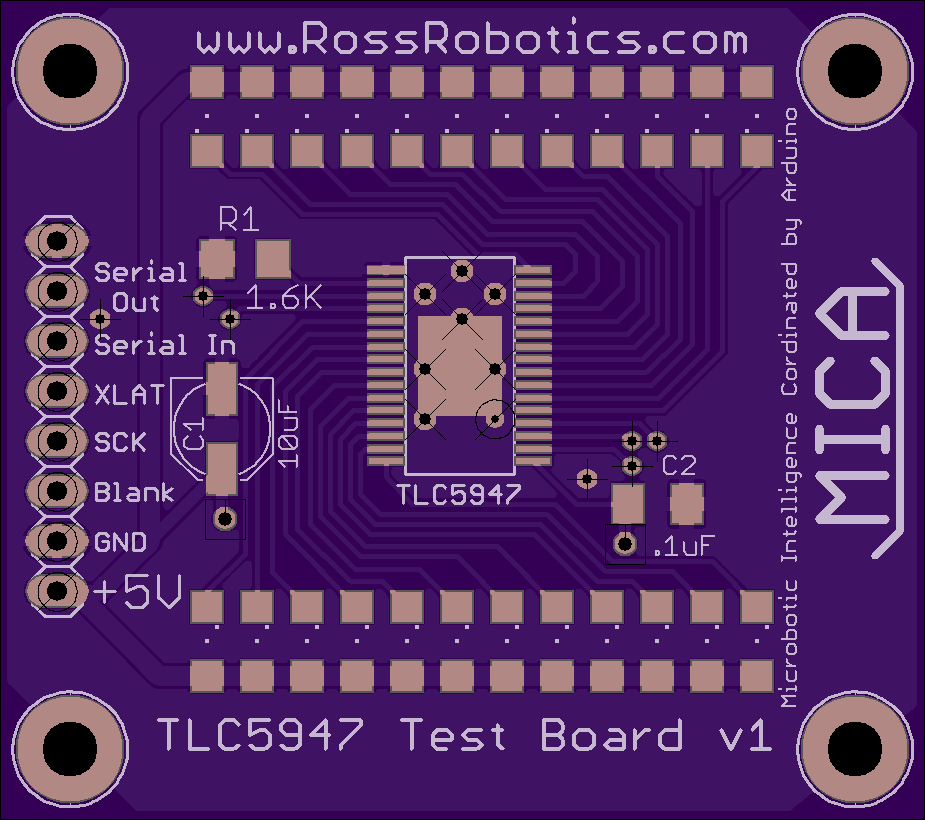

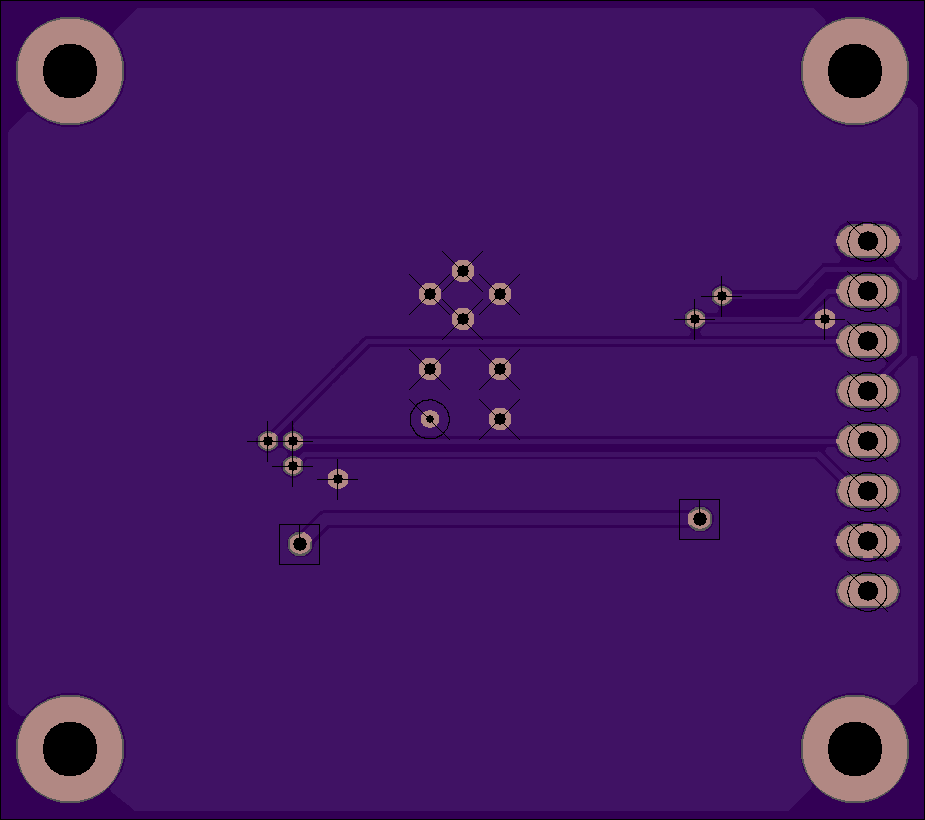

TLC5947 Breakout
by
RossRobotics.
2
layer board of
1.85x1.64
inches
(46.99x41.61
mm).
Shared on
October 22nd, 2013 22:03.

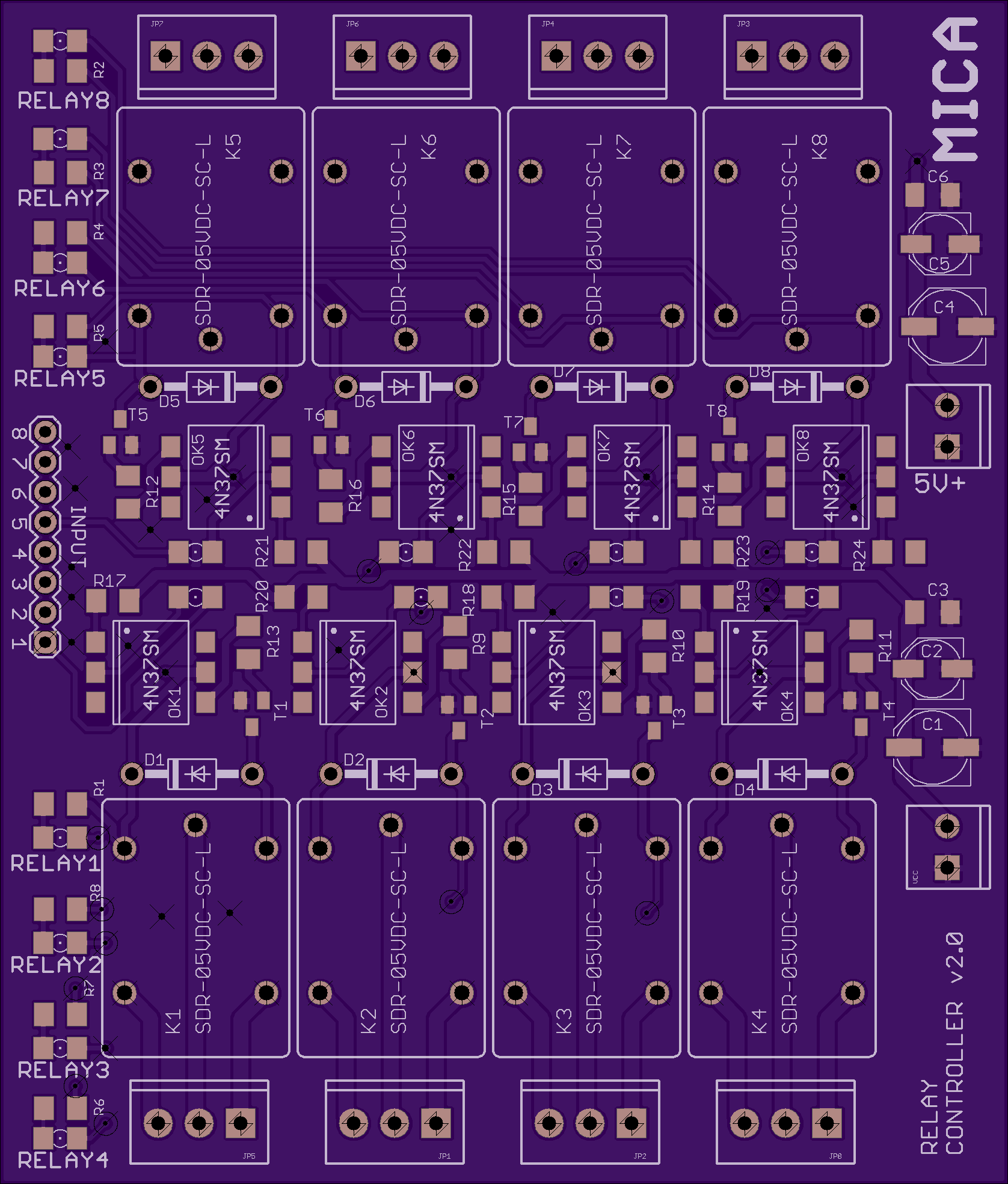

Relay Board
by
RossRobotics.
2
layer board of
3.35x3.94
inches
(85.09x100.00
mm).
Shared on
October 22nd, 2013 22:03.
