AVR programming adapter

2 layer board of 0.48x0.40 inches (12.12x10.11 mm).
Shared on September 23rd, 2013 17:54.

This board converts a standard AVR 2x3 100mil programming header to a 1mm-pitch header.

Pinout for the matching female header (top view):

SCK     VCC
MISO    RESET#
MOSI    GND

Footprints are provided for a 0603 capacitor across VCC and 0402 pull-up and filter/delay capacitor on RESET#.

Populate with TE CONNECTIVITY 1241050-3 and HARWIN M40-3200345R.

Use with HARWIN M40-3100345R receptacle:

Order board. Download. Permalink. Embed order link.

Cherry MX test

2 layer board of 0.80x1.00 inches (20.32x25.43 mm).
Shared on September 23rd, 2013 12:47.

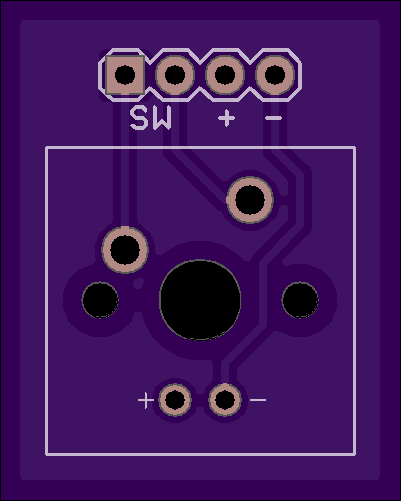

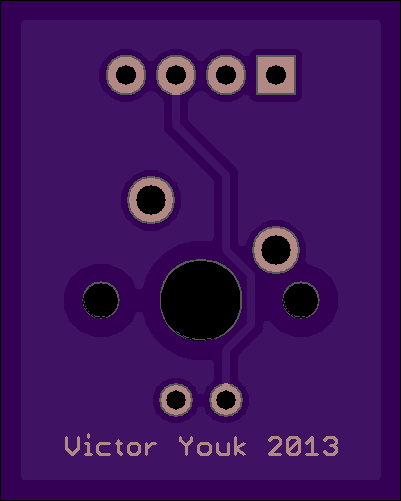

Cherry MX test

Order board. Download. Permalink. Embed order link.

lm2623 dc/dc converter

2 layer board of 1.15x0.78 inches (29.16x19.81 mm).
Shared on September 23rd, 2013 11:12.

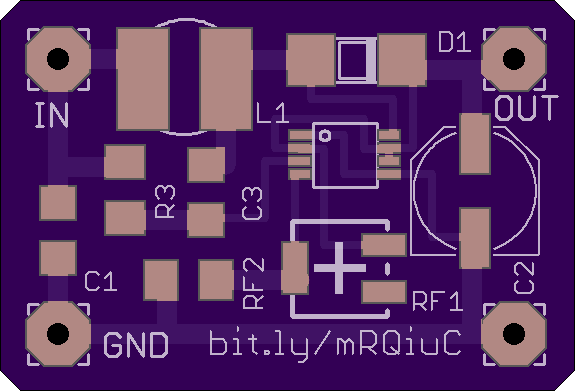

input from 1v -> 5v and an output of 5v->12v at up to 1.2A. Build instructions and BOM here: http://www.mattvenn.net/2011/09/26/dc-booster-pcb/

Order board. Download. Permalink. Embed order link.

Lord Fader

2 layer board of 6.50x1.90 inches (165.20x48.36 mm).
Shared on September 23rd, 2013 05:23.

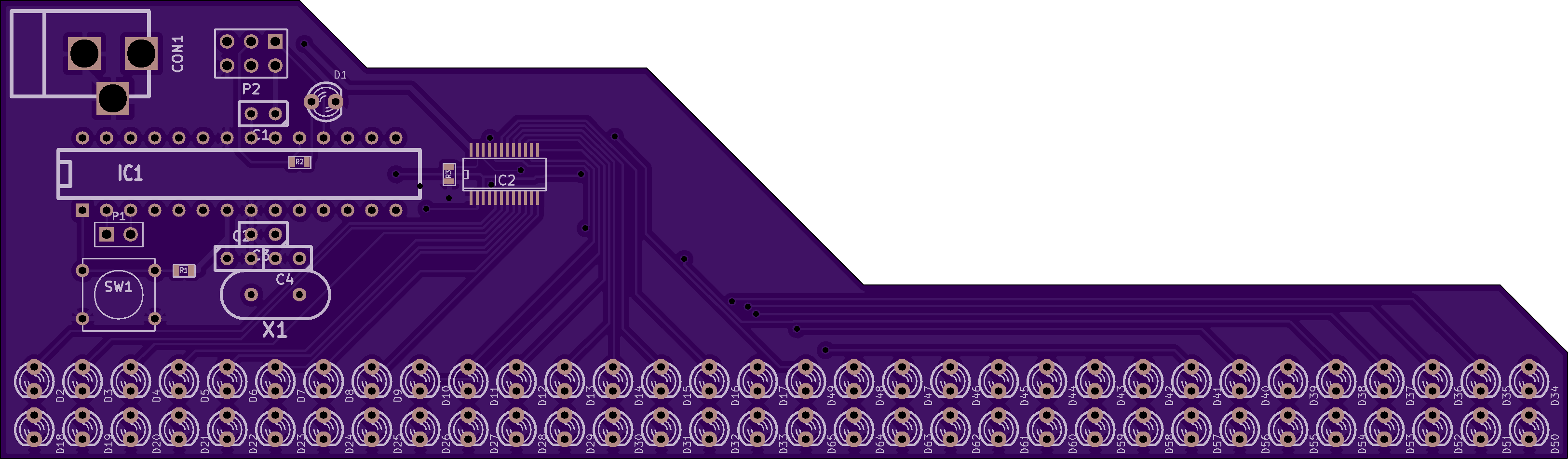

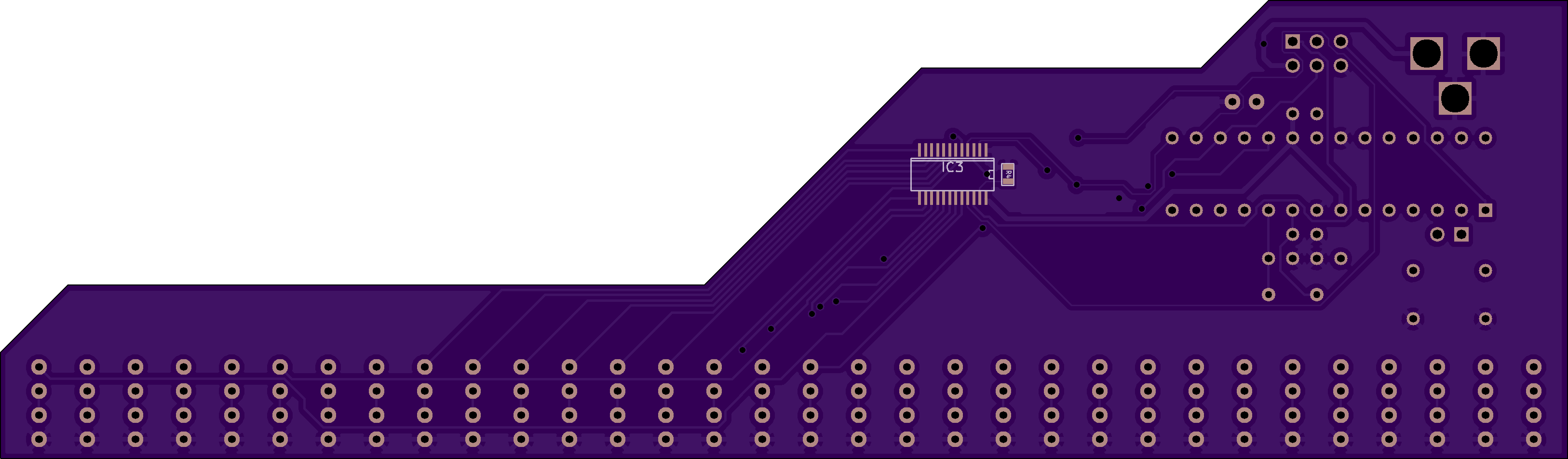

5V CC SPI LED Driver with modified Arduino (Dubbed BruteforcedurinoV2_nA(for no “good” analog functionality))

Order board. Download. Permalink. Embed order link.

Crazyflie Board

4 layer board of 3.16x3.16 inches (80.21x80.21 mm).
Shared on September 23rd, 2013 00:56.

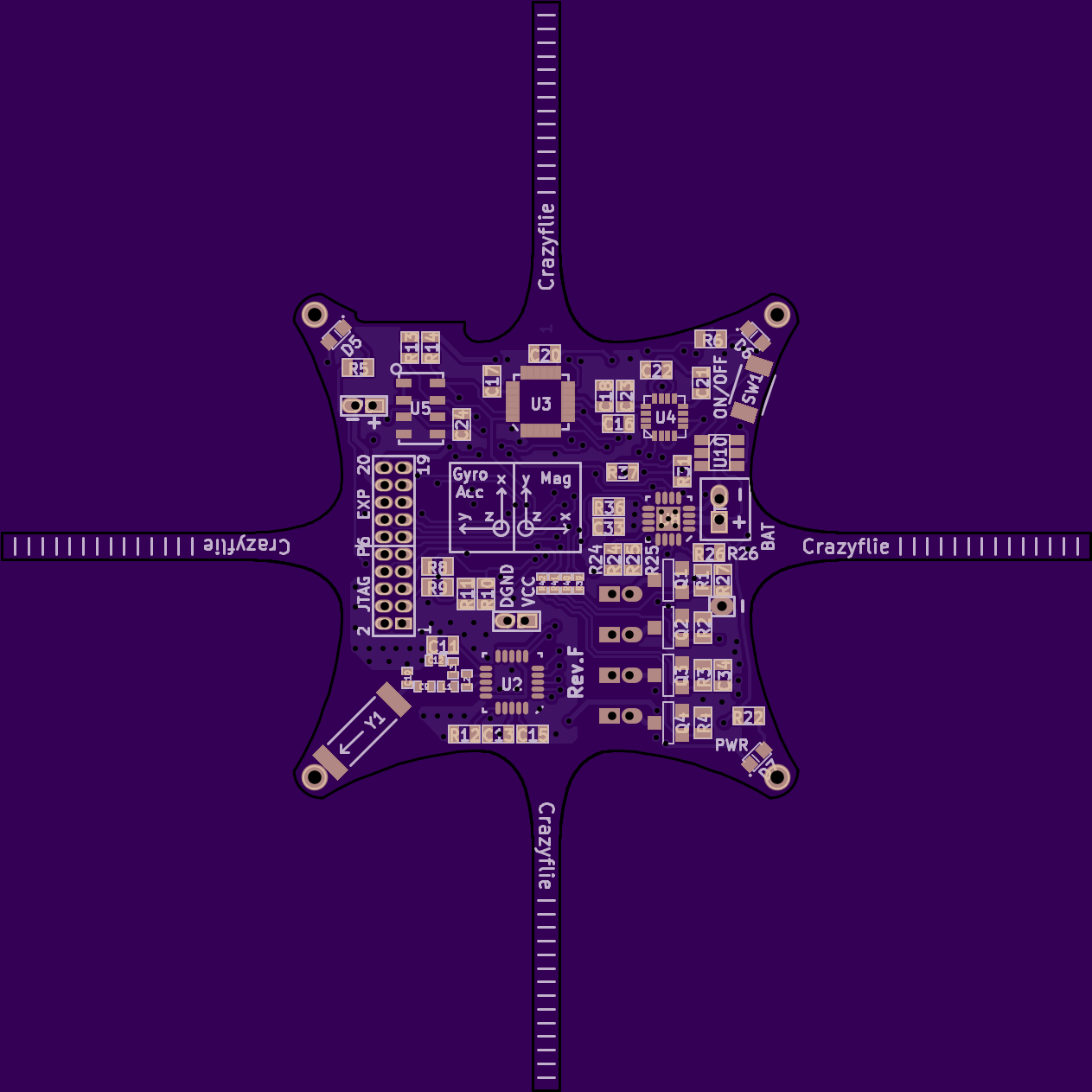

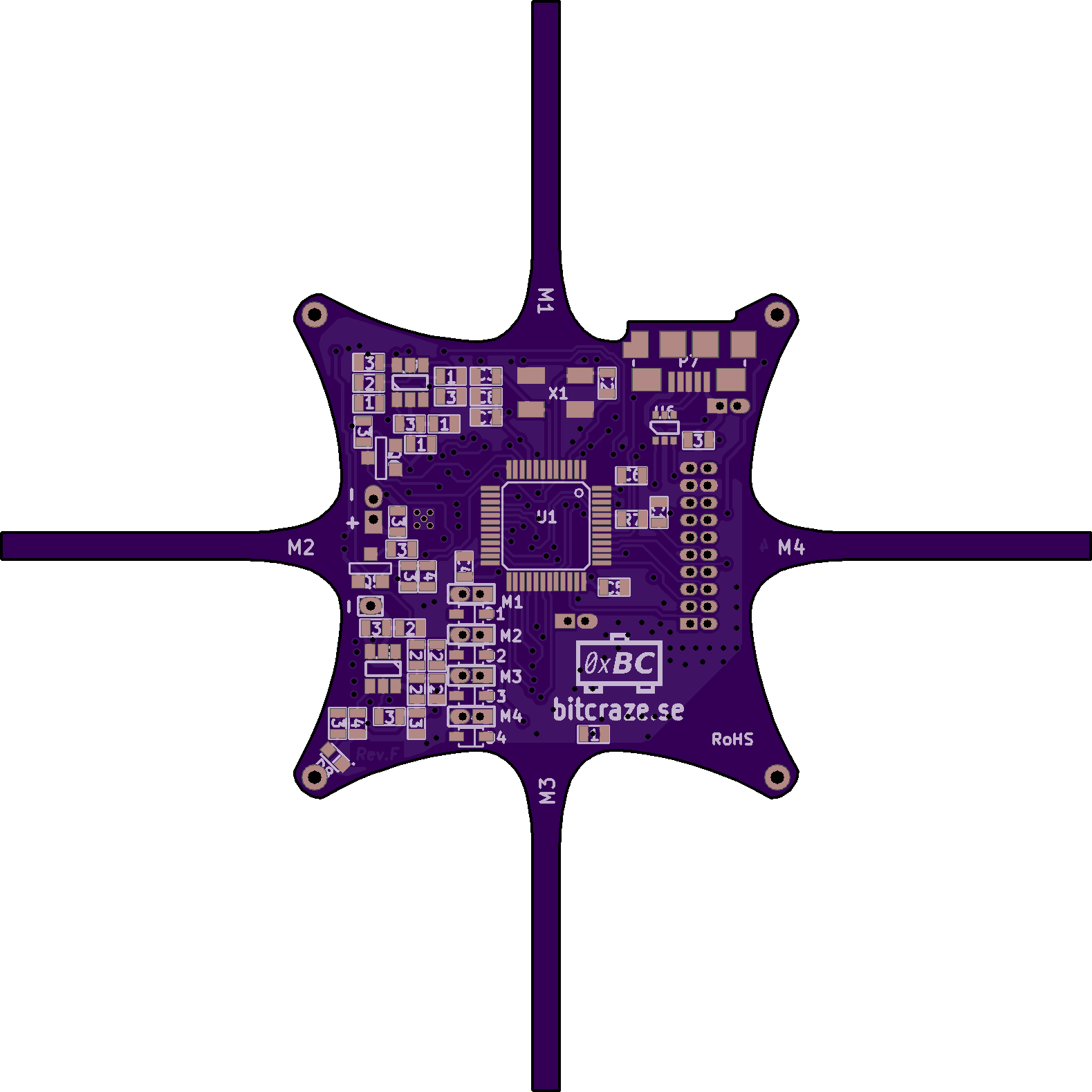

Unmodified Crazyflie quadcopter control board taken from https://bitbucket.org/bitcraze/crazyflie-electronics

Order board. Download. Permalink. Embed order link.
