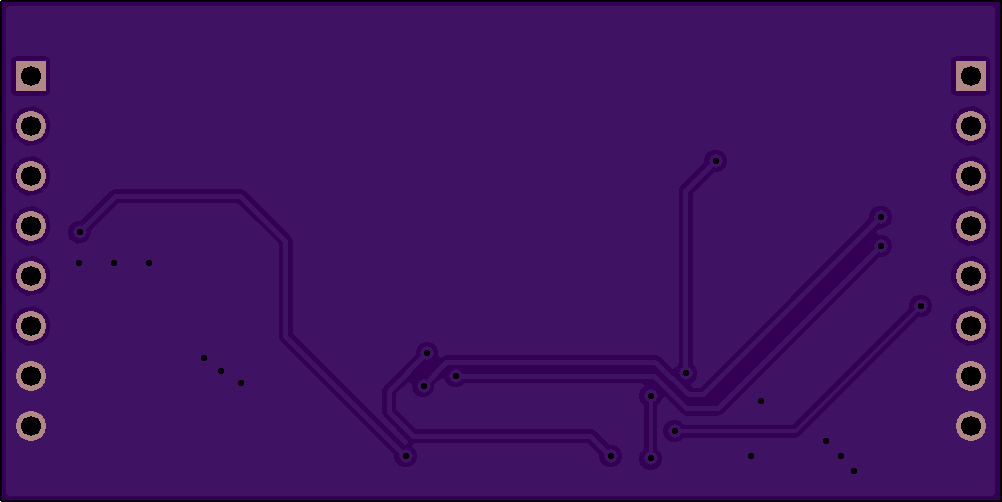

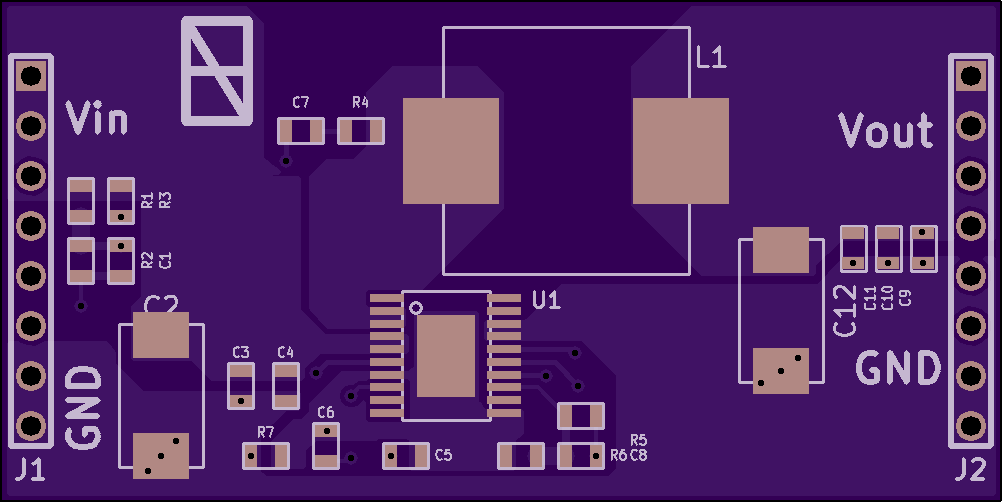

BuckConverterTest
by
2
layer board of
2.00x1.00
inches
(50.90x25.50
mm).
Shared on
September 15th, 2013 06:50.
First Test of KiCad with a buck converter.
12Vin to 3.3Vout Non-optimized layout would not recommend usage.
FTDI MINI r4
by
DrYerzinia.
2
layer board of
0.93x0.88
inches
(23.49x22.23
mm).
Shared on
September 15th, 2013 02:34.
USB to Serial converter circuit board. Revision 4. Changed Silk. Incresed SIP hole size for Gold Header pins. For more details look on my site

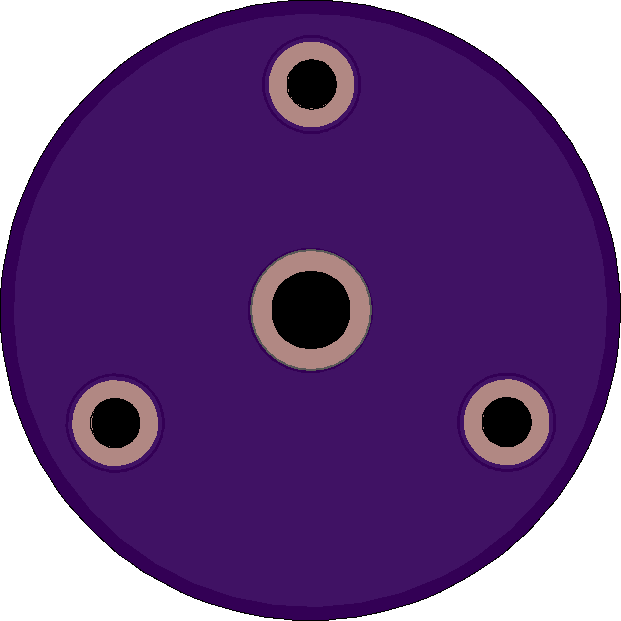

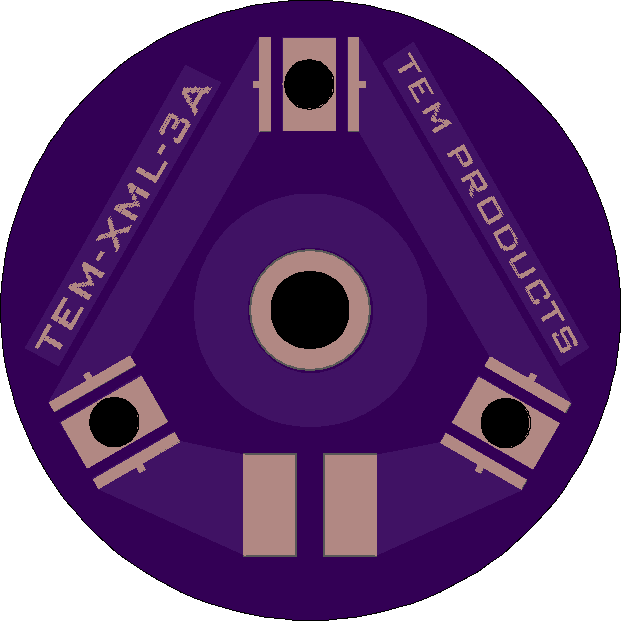

TEM XML 3A
by
2
layer board of
1.24x1.24
inches
(31.50x31.52
mm).
Shared on
September 15th, 2013 01:20.
Cree XML LED Module

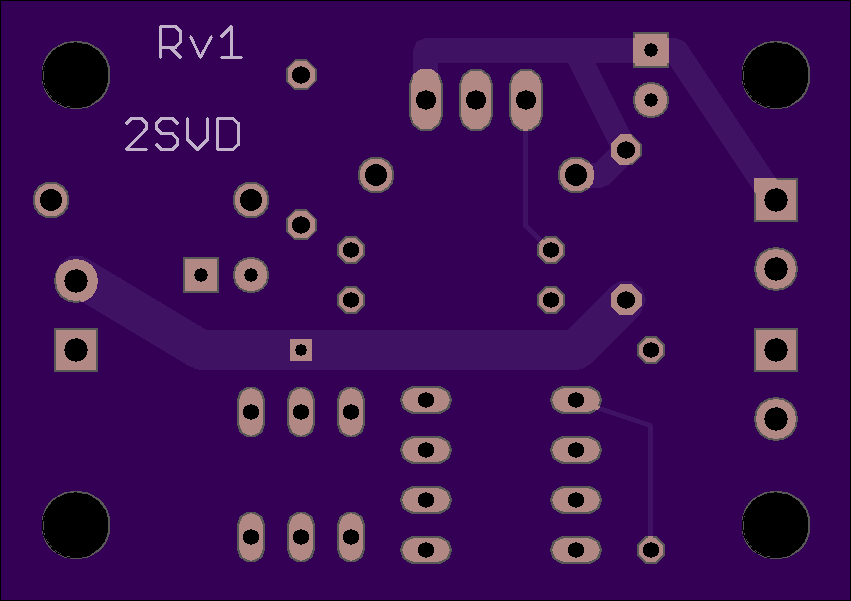

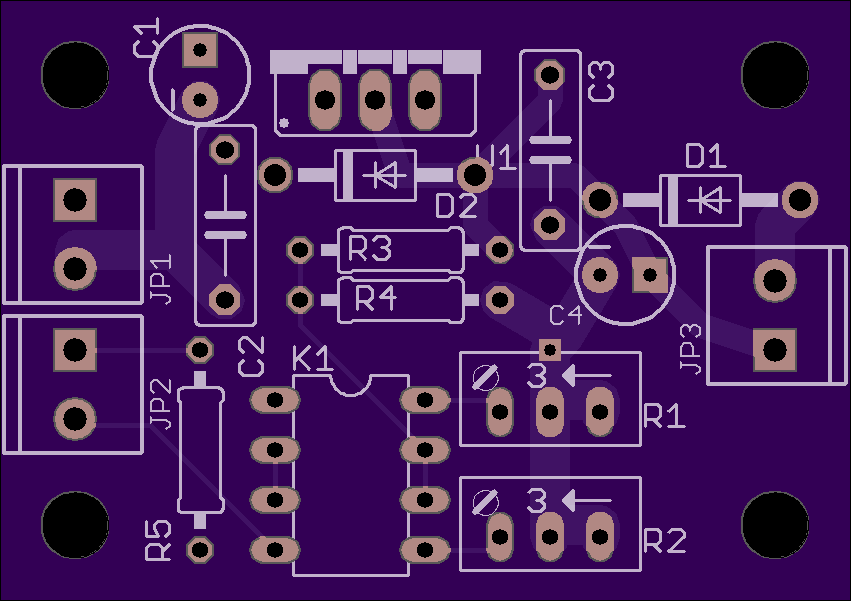

2SD
by
rustic_roaster.
2
layer board of
1.70x1.20
inches
(43.18x30.48
mm).
Shared on
September 14th, 2013 23:38.
2 state valve drive circuit for interfacing a TC4 or a PID controller to a Kelly Pneumatics or Clippard EVP proportional control valve.
Eagle are located here https://github.com/RusticRoaster/2_state_valve_driver
Parts list with Digikey Part numbers
C1 47u P5181-ND
C2 .1u 399-4491-1-ND
C3 .1u 399-4491-1-ND
C4 47u P5181-ND
D1 1N4004 1N4004DICT-ND
D2 1N4004 1N4004DICT-ND
K1 LBA110 CLA104-ND
R1 100K T93YA-100K-ND
R2 100K T93YA-100K-ND
R3 243 243XBK-ND
R4 1650 1.65KXBK-ND
R5 243 243XBK-ND
U1 LM1086 LM1086CT-ADJ/NOPB-ND
JP1 2POS 3.5MM 277-1721-ND
JP2 2POS 3.5MM 277-1721-ND
JP3 2POS 3.5MM 277-1721-ND
2,P5181-ND,c1 C4
2,399-4491-1-ND, c2 c3
2,1N4004DICT-ND, D1 D2
1,CLA104-ND,K1
2,T93YA-100K-ND, R1 R2
2,243XBK-ND, R3 R5
1,1.65KXBK-ND, R4
1,LM1086CT-ADJ/NOPB-ND, U1
3,277-1721-ND, JP1 JP2 JP3

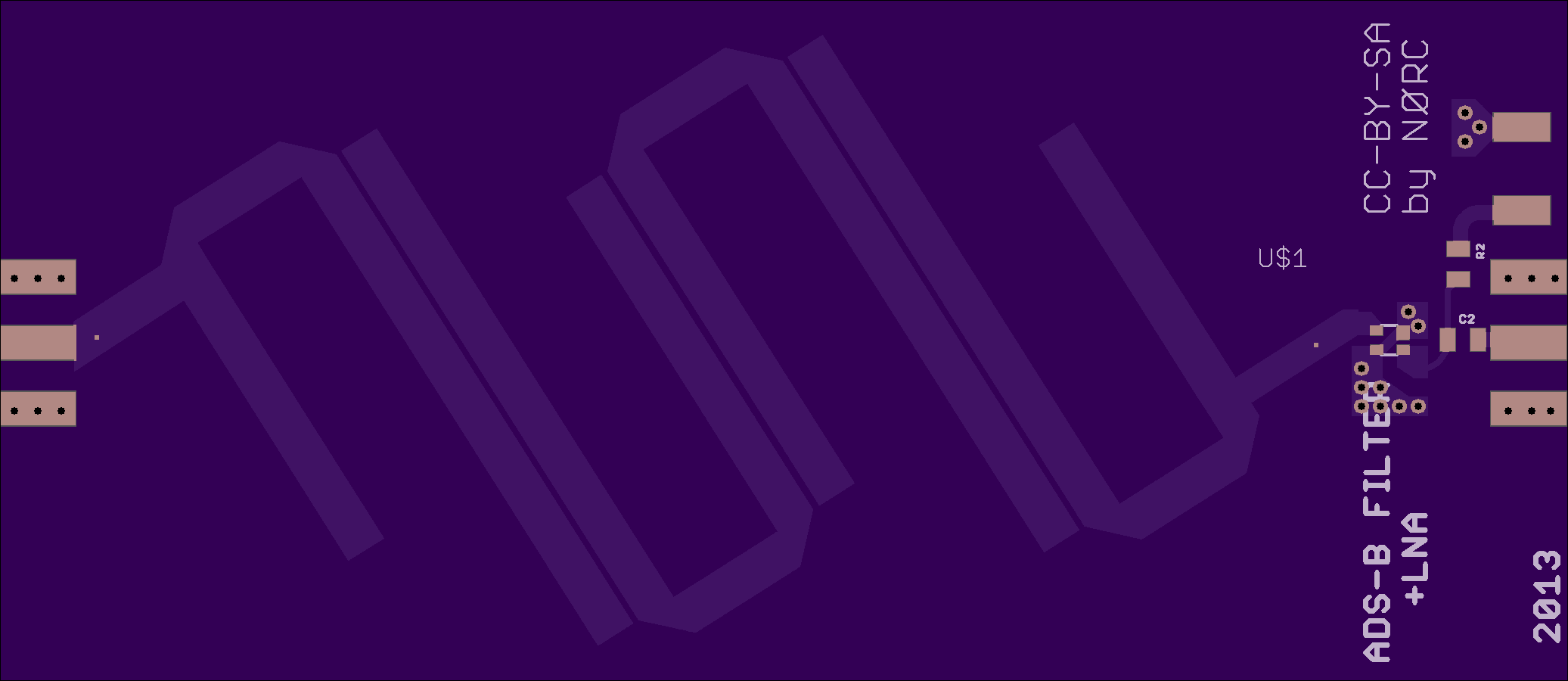

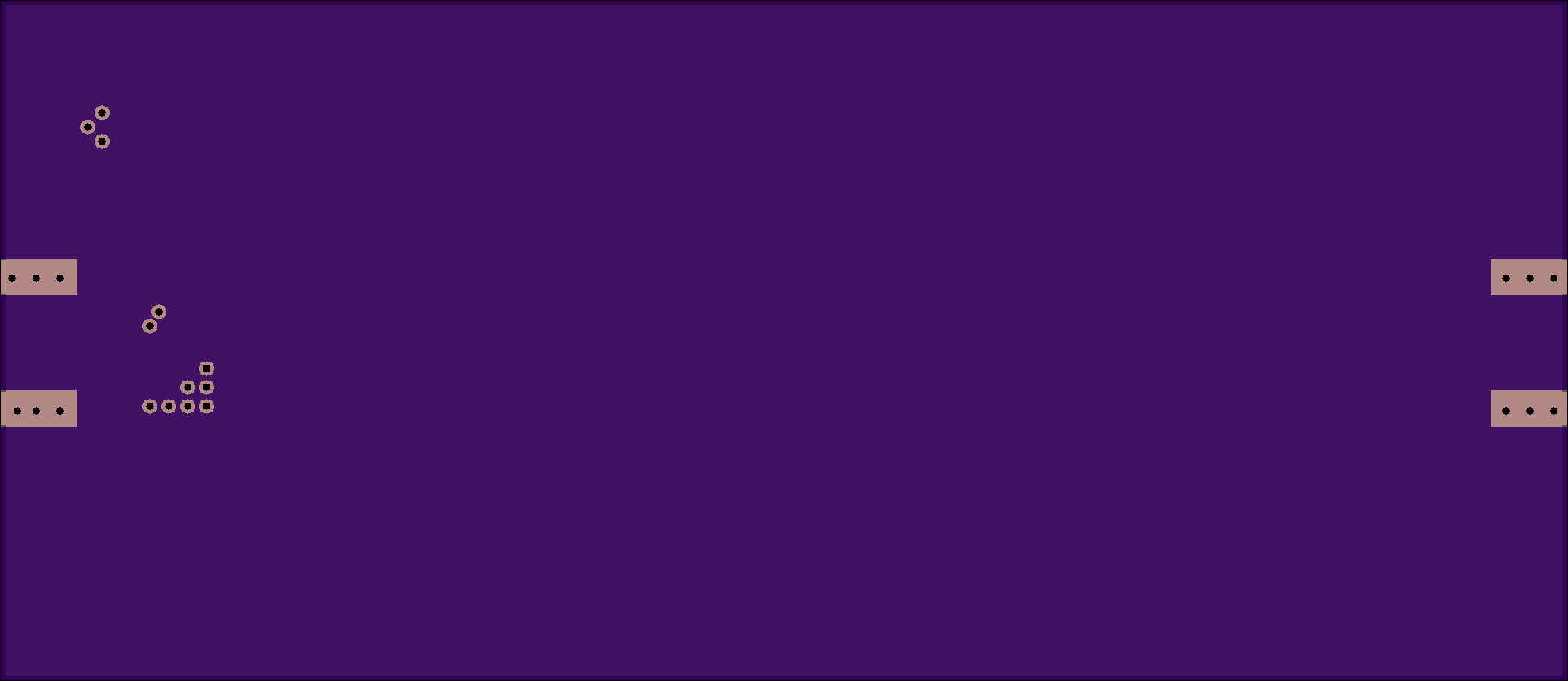

ADSB BPF & LNA V3
by
N0RC.
2
layer board of
4.14x1.80
inches
(105.26x45.72
mm).
Shared on
September 14th, 2013 17:50.
Band pass filter centered on 1090 MHz. This filter is followed by the SPF5043Z LNA.
Layout and Schematic: https://github.com/Reid-n0rc/ADS-B_LNA_Project/tree/master/Filter%2BLNA_v3
