RF Baluns

827 Baluns from 12 manufacturers listed on everything RF
Baluns from the leading manufacturers are listed below. Use the filters to narrow down on products based on your requirement. Download Datasheets, Compare products and Request Quotations. Your Inquiry will be directed to the manufacturer and their distributors who will get back to you with a quote.
Description: 14-40 GHz Isolation Balun
Configuration:
Balun
Type:
Balanced to Unbalanced
Frequency:
14 to 40 GHz
Impedance:
50 Ohms
Insertion Loss:
1.5 to 5 dB
Package Type:
Die
more info
Description: RF Transformers, Plug-in, Configuration F, Single Ended to Balanced with Impedance Ratio Selection, 0.10-200MHz
Configuration:
Balun, Transformer
Type:
Unbalanced to Balanced
Frequency:
0.07 to 200 MHz
Impedance:
50 Ohms
Impedance Ratio:
1:1.02
Insertion Loss:
0.42 to 1.45 dB
Package Type:
Plug In
more info
Description: 0.075 to 90 MHz, Unbalanced to Balanced Balun
Configuration:
Balun, Transformer
Type:
Unbalanced to Balanced
Frequency:
0.075 to 90 MHz
Impedance:
50 Ohms
Impedance Ratio:
1:16
Package Type:
Surface Mount
more info
Description: Blindmate (snap-in) Broadband Balun from 5 MHz to 20 GHz
Configuration:
Balun, Transformer
Type:
Unbalanced to Balanced
Frequency:
5 MHz to 20 GHz
Impedance:
50 Ohms
Insertion Loss:
-6 dB
Package Type:
Surface Mount
more info
Description: 45 MHz to 1200 MHz Transformer Balun for CATV Applications
Configuration:
Balun, Transformer
Type:
Unbalanced to Balanced
Frequency:
45 MHz to 1.2 GHz
Impedance:
75 Ohms
Impedance Ratio:
1:1
Insertion Loss:
0.9 dB
Package Type:
Surface Mount
more info
Description: 200 MHz to 1.05 GHz, Unbalanced to Balanced Balun
Configuration:
Balun
Type:
Unbalanced to Balanced
Frequency:
200 MHz to 1.05 GHz
Impedance:
50 Ohms
Impedance Ratio:
1:2
Balanced Impedance:
100 Ohms
Unbalanced Impedance:
50 Ohms
Insertion Loss:
1.25 dB
Package Type:
Module with Connectors
Connector:
SMA
more info
Description: 625 MHz to 2.815 GHz, Unbalanced to Balanced Balun
Configuration:
Balun
Type:
Unbalanced to Balanced
Frequency:
625 MHz to 2.815 GHz
Impedance:
50 Ohms
Impedance Ratio:
1:1
Balanced Impedance:
50 Ohms
Unbalanced Impedance:
50 Ohms
Insertion Loss:
1.5 dB
Package Type:
Ceramic, Surface Mount
more info
Description: 20 MHz to 2.5 GHz, Unbalanced to Balanced Balun
Configuration:
Balun
Type:
Unbalanced to Balanced
Frequency:
20 MHz to 2.5 GHz
Insertion Loss:
0.3, 0.45, 0.5, 0.6 dB
Package Type:
Surface Mount
more info
Description: 1:1 SMT Transformer from 50 to 1200 MHz
Configuration:
Transformer
Type:
Unbalanced to Balanced
Frequency:
50 to 1200 MHz
Impedance:
75 Ohms
Impedance Ratio:
1:1
Insertion Loss:
1 to 2 dB
Package Type:
Surface Mount
more info
Description: Sub-miniature Unbalanced to Balanced Balun from 5.9 to 11.7 GHz
Configuration:
Balun
Type:
Unbalanced to Balanced
Frequency:
5.9 to 11.7 GHz
Impedance:
50 Ohms
Impedance Ratio:
1:2
Balanced Impedance:
100 Ohms
Unbalanced Impedance:
50 Ohms
Insertion Loss:
0.4 to 0.9
Package Type:
Surface Mount
more info

RF Balun Basics & Selection

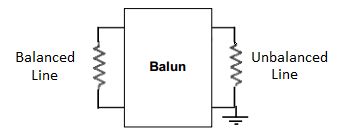

RF BalunA Balun is a device that is used to join a balanced line to an unbalanced line. A balanced line is one that has two terminals, neither of which are connected to the ground, whereas an unbalanced line has one terminal connected to ground. RF Baluns can also be used as transformers to provide impedance transformations. To learn more about RF Baluns, you can read white papers and notes in the Knowledge Center on everything RF - Just search for RF Baluns.

Selecting RF Baluns

When selecting a RF balun it is important to know the parameters that you need to specify. Below are a list of the key parameters to look out for when selecting a balun:

Phase Balance: One of the most important criteria of a Balun is how close the balanced outputs are to having equal amplitude and a 180 degree phase difference. This is one of the key parameters to look at when selecting a balun.

Amplitude Balance: It is the measure of how closely the two unbalanced signals are in amplitude.

Impedance Ratio: This is the ratio of the unbalanced impedance to the balanced impedance. It is usually specified as 1:n (i.e. 1:1, 1:2, 1:4). The differential impedance is between the balanced signal lines is twice the impedance between the signals and ground.

Common Mode Rejection Ratio: This is the amount of attenuation of a signal from the balanced port of the balun to the unbalanced port. It is measured in dB.

everything RF lists RF Baluns from the leading manufacturers. Use the search tools to narrow down on the list of products. Download datasheets, compare products and request quotations on RF baluns. These quotes are directed to the manufacturers who get back to you with more information.
