  4. Hybrid Couplers

RF Hybrid Couplers

Parametric Search tool for the RF & Microwave Industry.

Find & Compare RF Hybrid Couplers from multiple manufacturers. Search by specification, download datasheets and get quotations. Select a type below to get started.

Hybrid Coupler Basics & Selection

90° Hybrid Couplers

A 90° Hybrid Coupler is a 4 port devices that is used to equally split an input signal with a 90° phase shift between the ports. To illustrate operation, a signal at the input port (port 1) is divided between the two output ports with half the power flowing to the 0° port and the other half flowing to the 90° port. Any reflection from mismatches at the output port flow to the Isolated port (port 4). This is one of the reasons hybrid couplers are used to split signals in applications where unwanted reflections can damage the circuit. This type of coupler is also know as Quadrature coupler.

everything RF lists 90° Hybrid Couplers from the leading manufacturers - Aeroflex, Anaren, Werlatone, MECA, IPP etc. Use the parametric search tool to narrow down on the products - Download Datasheets and Request Quotations. These are directed to the manufacturers or reps in your region who will get back to you with the details. Click Here to start searching.

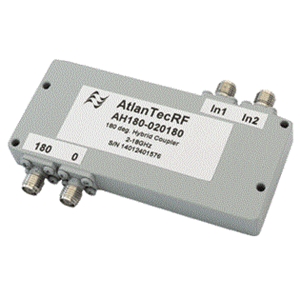

180° Hybrid Couplers

A 180° Hybrid Coupler is a four port device that is used either to equally split an input signal with a 180° phase shift between the ports or to combine two signals that are 180° apart in phase. 180° Hybrid Couplers usually consist of a center conductor ring with a circumference of 1.5 times the wavelength (6 times the quarter wavelength). Each port is separated by a quarter wavelength (90° apart). This configuration creates a low loss device with low VSWR and excellent phase and amplitude balance. This type of coupler is also know as “rat race coupler”.

everything RF lists 180° Hybrid Couplers from the leading manufacturers - Aeroflex, Anaren, Werlatone, MECA, IPP etc. Use the parametric search tool to narrow down on the products - Download Datasheets and Request Quotations. These are directed to the manufacturers or reps in your region who will get back to you with the details. Click Here to start searching.

Hybrid Coupler Selection

When selecting a hybrid coupler it is important to know the parameters that you need to specify. The key parameters would be Type, Insertion Loss, Isolation and Power.
