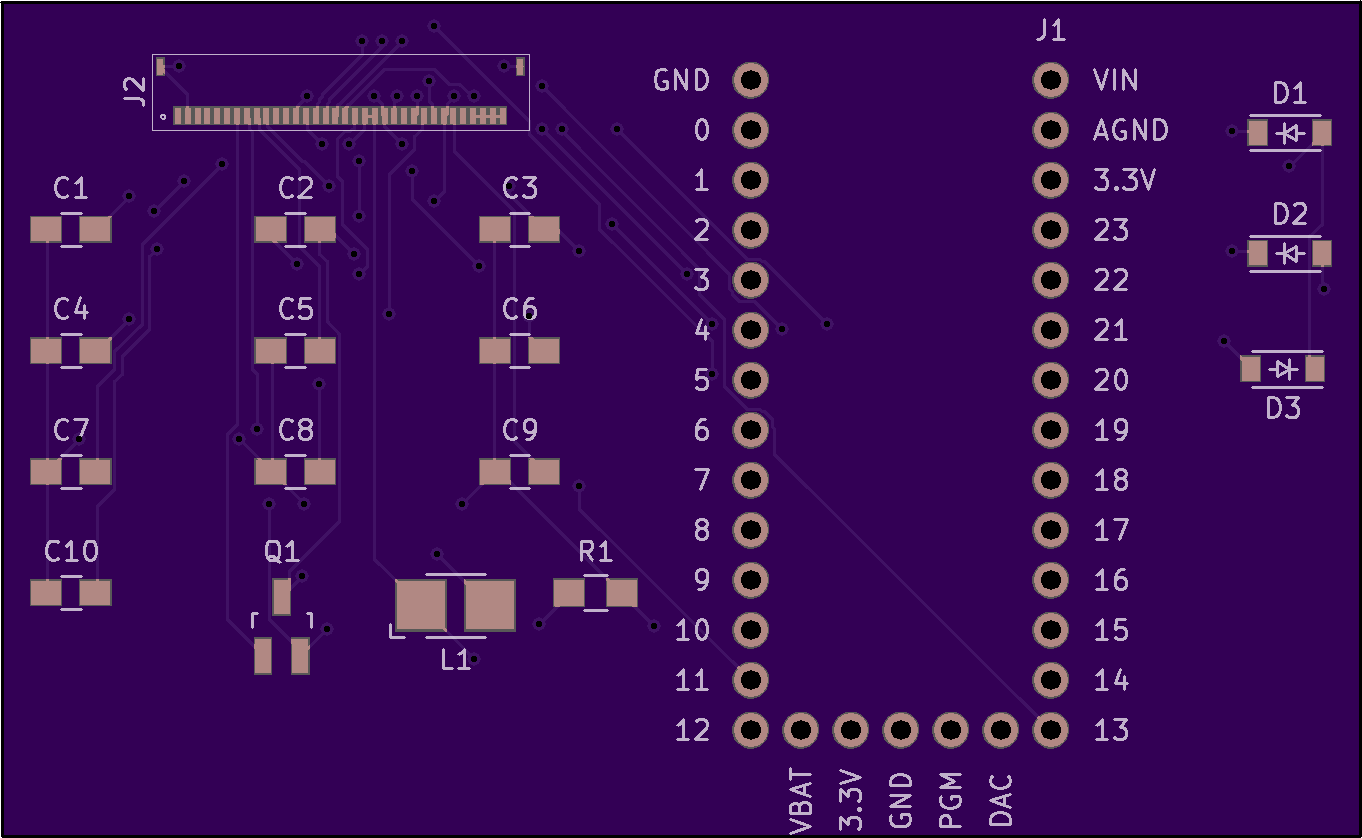

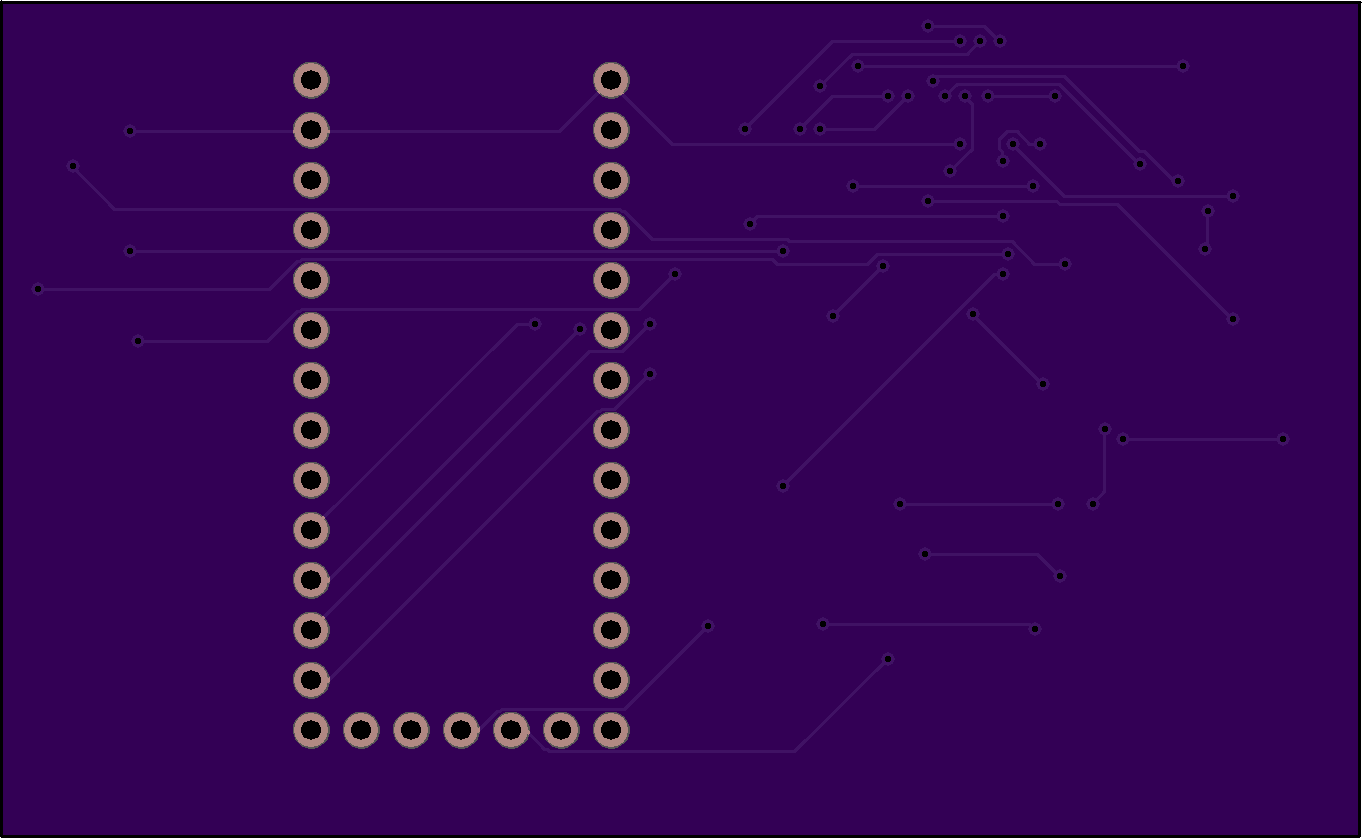

UNTESTED kicad-teensy-epaper.kicad_pcb [921115b]
by
fustini.
2
layer board of
2.72x1.68
inches
(69.19x42.62
mm).
Shared on
March 10th, 2017 01:12.
WARNING: THIS PROJECT IS OLD
NEW VERSION: https://oshpark.com/shared_projects/1CiimZcf
UNTESTED
- Repo: kicad-teensy-epaper
- Commit: 921115b
UNTESTED tomu_pull-request-fb75fd5.kicad_pcb
by
fustini.
2
layer board of
0.51x0.44
inches
(13.06x11.07
mm).
Shared on
February 14th, 2017 20:53.
UNTESTED
source: https://github.com/im-tomu/tomu-hardware/issues/12

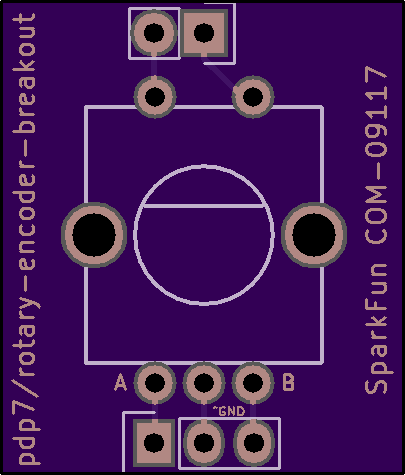

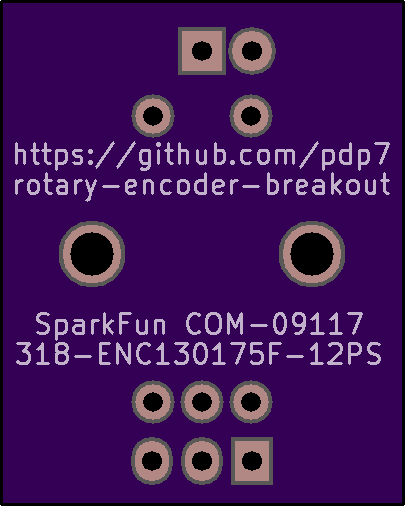

Rotary Encoder Breakout (no pull-ups)
by
fustini.
2
layer board of
0.81x0.95
inches
(20.62x24.16
mm).
Shared on
February 1st, 2017 21:41.
NOTE - there is a new version: Rotary Encoder Breakout with Pull-ups
KiCad breakout board to make it easier to put rotary encoder on breadboard
Repo:
- pdp7/rotary-encoder-breakout
- Commit: e73f710
Component and Footprint
- Using Kicad symbol and footprint by mcous for sparkfun rotary encoder:
- My fork to fix pin numbering:
BOM
Also works with PEC12R-4220F-S0024-ND on DigiKey
Photos:

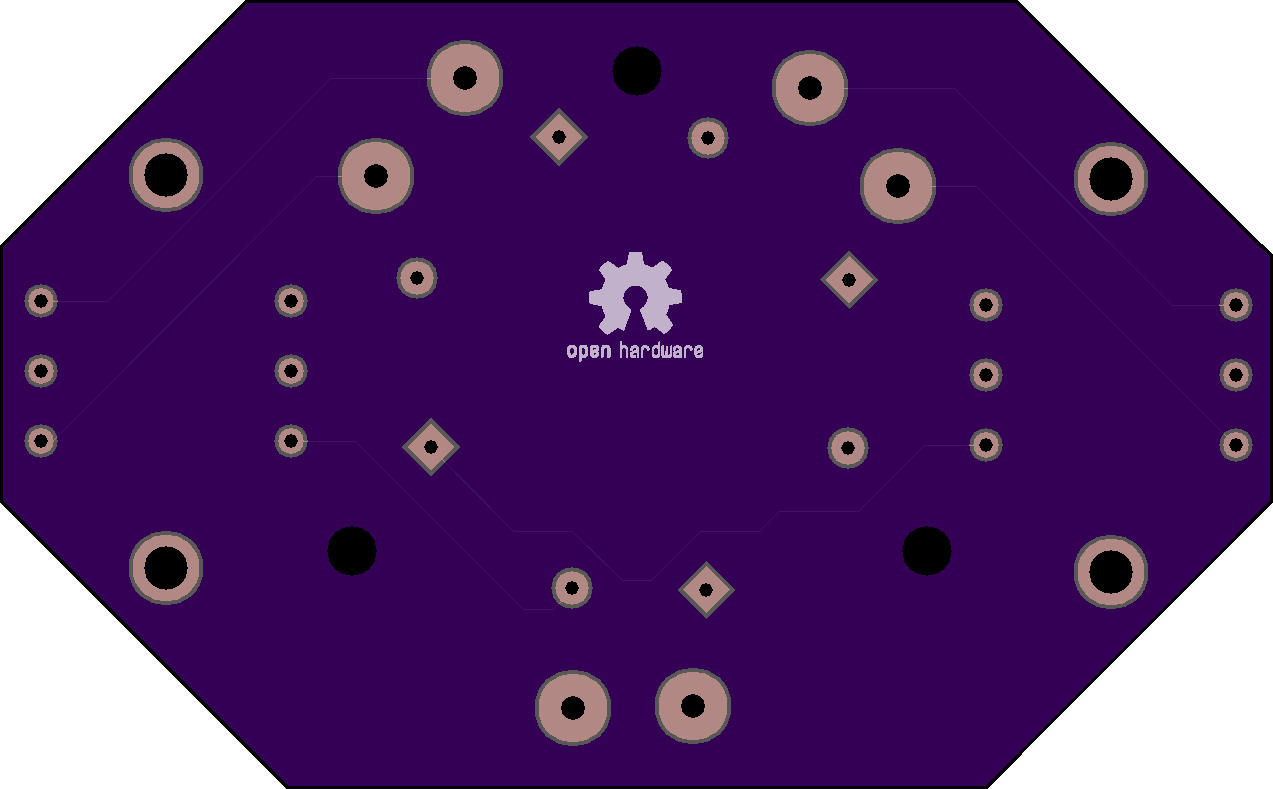

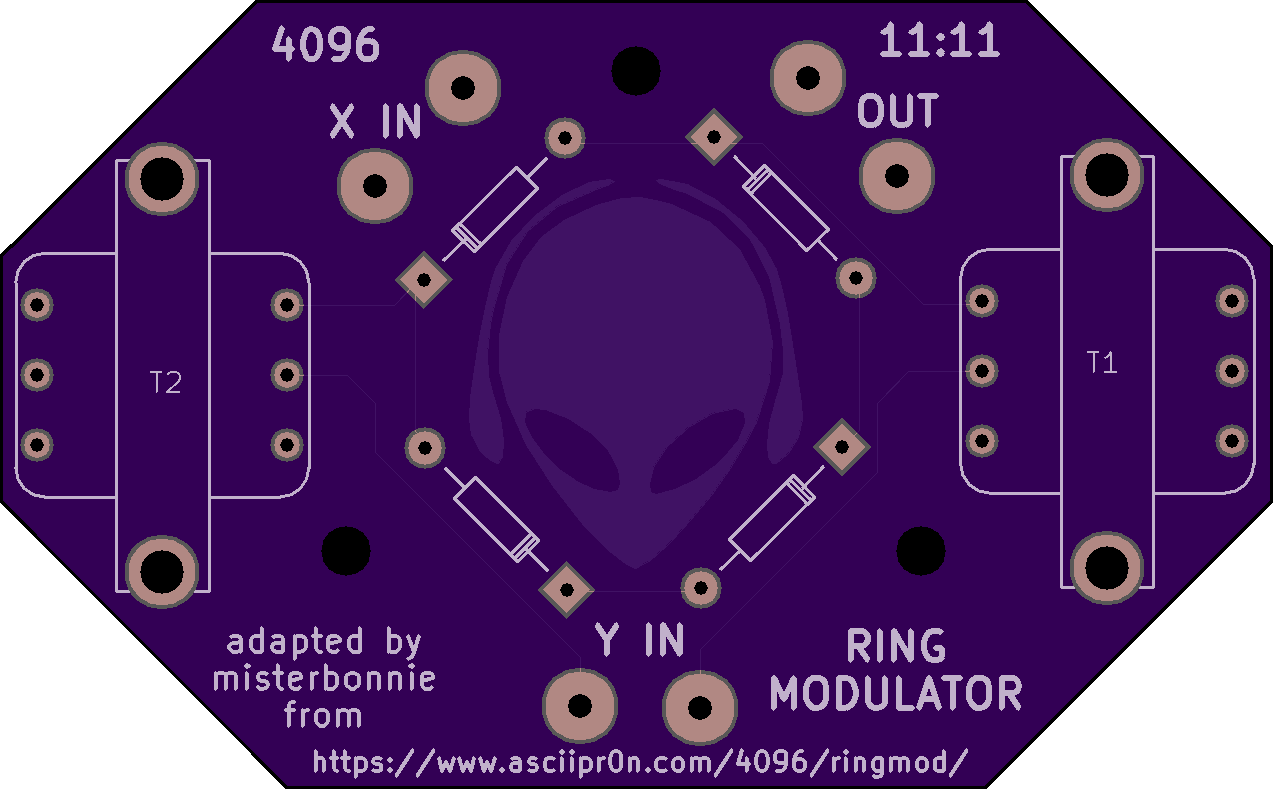

UNTESTED: ringmod4096 [dd91a5c]
by
fustini.
2
layer board of
2.55x1.58
inches
(64.67x40.08
mm).
Shared on
February 1st, 2017 07:07.
UNTESTED
- Repo:
- Commit:

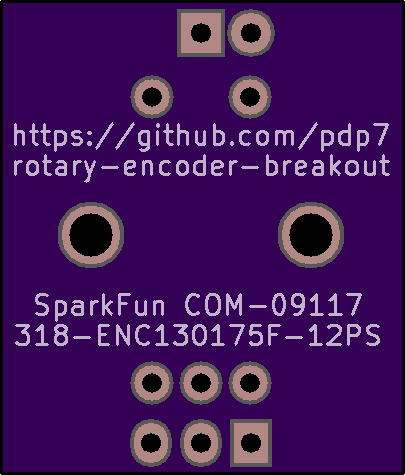

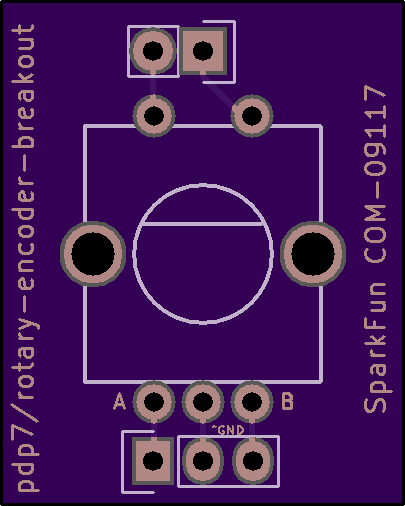

UNTESTED: rotary-encoder-breakout.kicad_pcb [26bab1e]
by
fustini.
2
layer board of
0.81x1.01
inches
(20.60x25.68
mm).
Shared on
February 1st, 2017 06:36.
UNTESTED
KiCad breakout board to make it easier to put rotary encoder on breadboard:
Repo:
- pdp7/rotary-encoder-breakout
- Commit: 26bab1e
Component and Footprint
- Using Kicad symbol and footprint by mcous for sparkfun rotary encoder:
- My fork to fix pin numbering:
