Shared projects

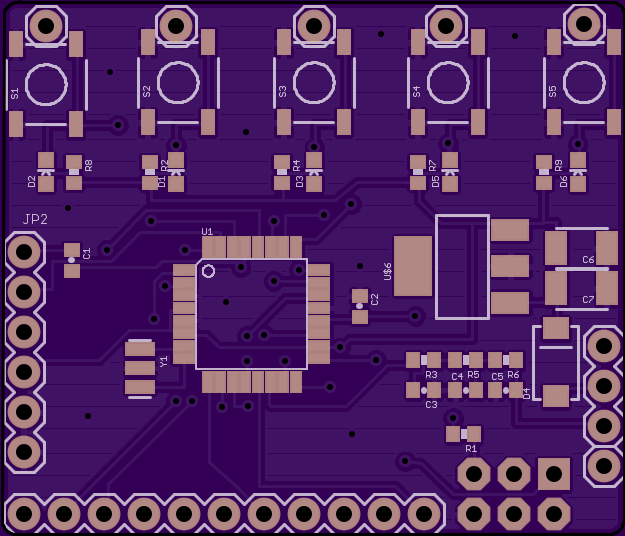

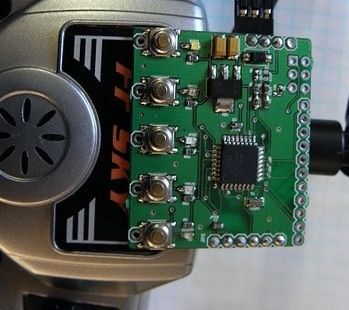

Arduino APM Mode Switch
by
irun4fundotca.
2
layer board of
1.56x1.34
inches
(39.73x34.06
mm).
Shared on
December 7th, 2014 21:58.
Arduino APM 5 Mode Switch Board
Board:
Images http://www.rcgroups.com/forums/showpost.php?p=30138164&postcount=4196
Board files & bom http://www.rcgroups.com/forums/showpost.php?p=30139892&postcount=4200
Original Post http://diydrones.com/profiles/blogs/arduino-mode-switch-for-arduplane-arducopter
$10.45 for three

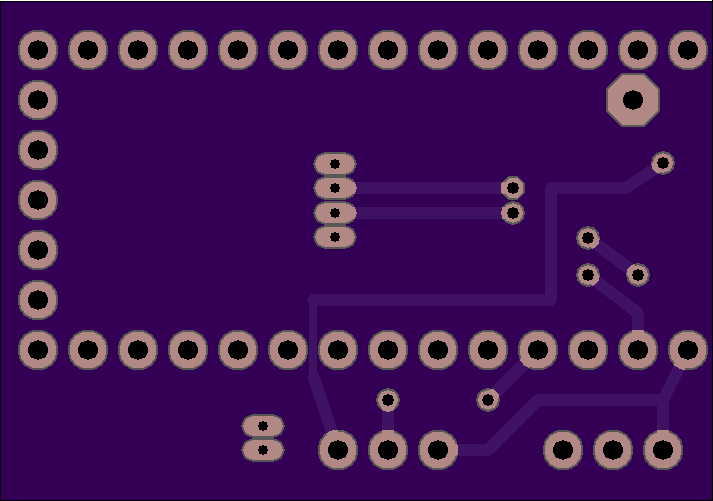

Teensy v3.1 - S.Port & WS28xx Led Shield
by
irun4fundotca.
2
layer board of
1.43x1.00
inches
(36.20x25.43
mm).
Shared on
November 20th, 2014 22:54.

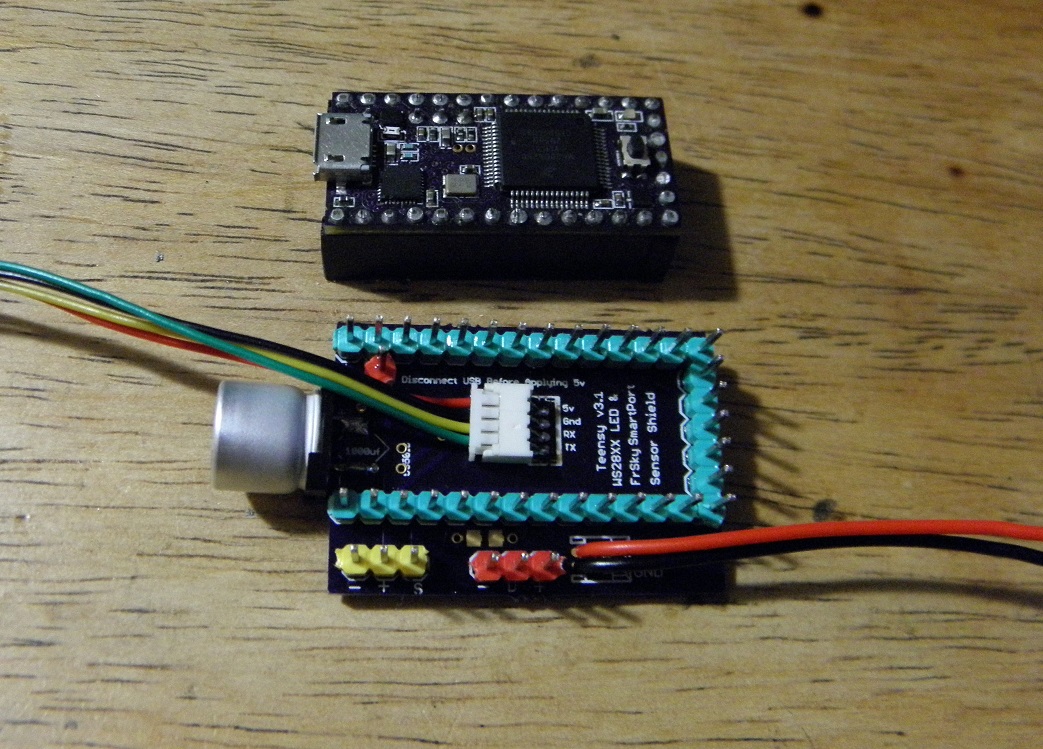

Teensy v3.1 - S.Port & WS28xx Led Shield
Pic:
-Allows for Smart Port Sensors to chain from the servo connector pins (marked) using arduino & serial monitor to log data info:
http://www.rcgroups.com/forums/showthread.php?t=2245978
-=The only power that’s needed is usb while chaining sensors=- Disconnect Board Power while USB connected and vice versa
-Working on teensy code for outputting data to onboard telemetry radio port
-Addressable led output to run led code if implemented for gps lock ect
-cut trace resistor(1k) pad for led output
-end mount 1000uf Capacitor pads for mounting
if any errors found email me at: lakins.c@gmail.com
$7.10 for three

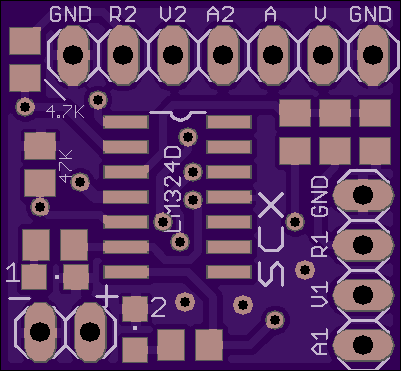

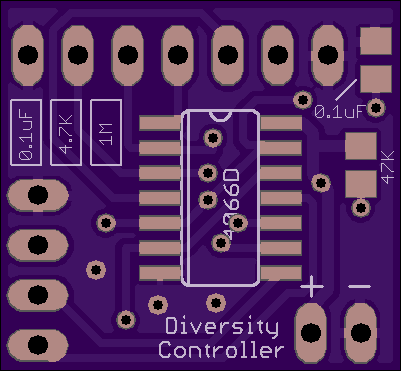

Screamer FPV Diversity Rev3
by
irun4fundotca.
2
layer board of
0.80x0.74
inches
(20.32x18.80
mm).
Shared on
October 31st, 2014 02:37.
Screamer FPV Diversity Board v3
Board image: http://static.rcgroups.net/forums/attachments/4/1/9/1/4/2/a7254819-132-DSC_0191.jpg
http://www.rcgroups.com/forums/showpost.php?p=29624780&postcount=358?
bom: http://www.rcgroups.com/forums/showatt.php?attachmentid=7238185&d=1414723182
$2.95 per batch of three

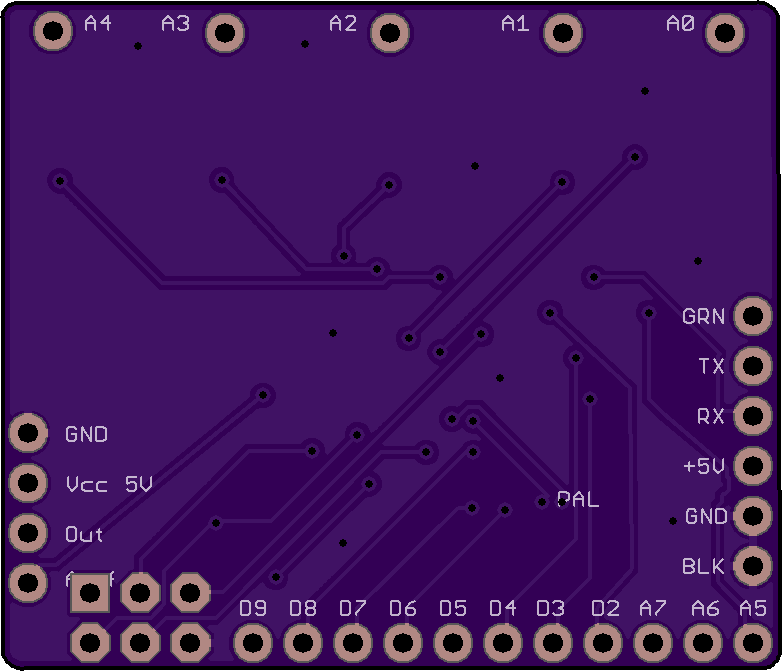

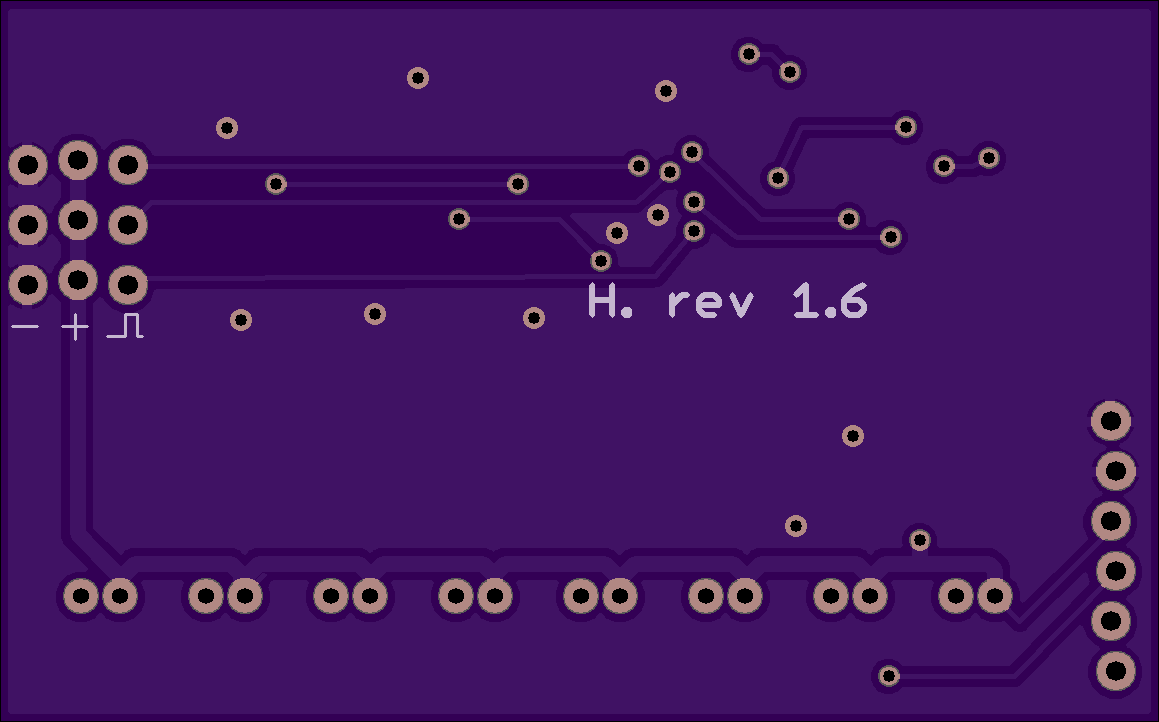

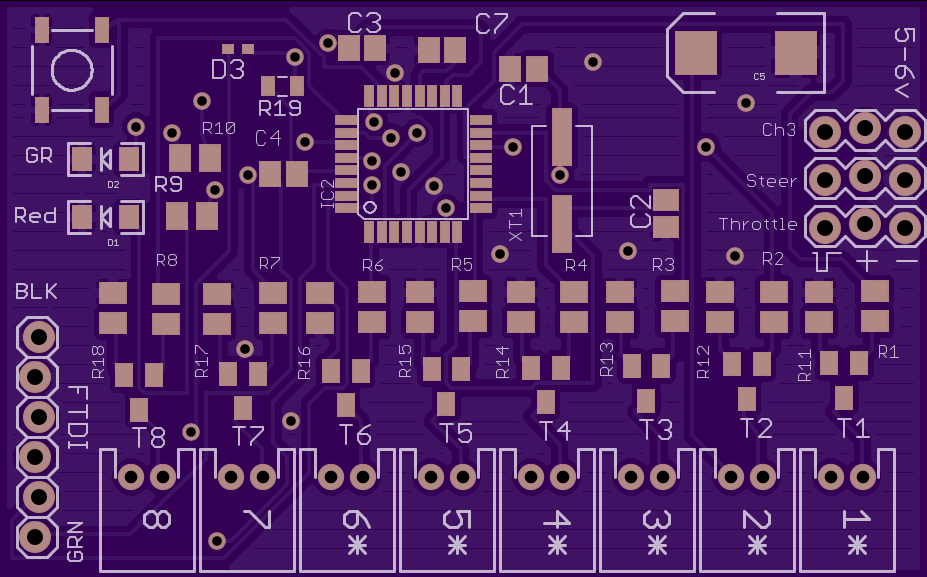

OpenSource Lights v1.6SMD
by
irun4fundotca.
2
layer board of
2.32x1.44
inches
(58.88x36.65
mm).
Shared on
October 18th, 2014 17:17.
Open Source Lights - Arduino based RC Light Controller ($16.70 per set of three)
http://www.rcgroups.com/forums/showthread.php?t=1539753
Video of original though hole version https://www.youtube.com/watch?v=APSus9zMtoc

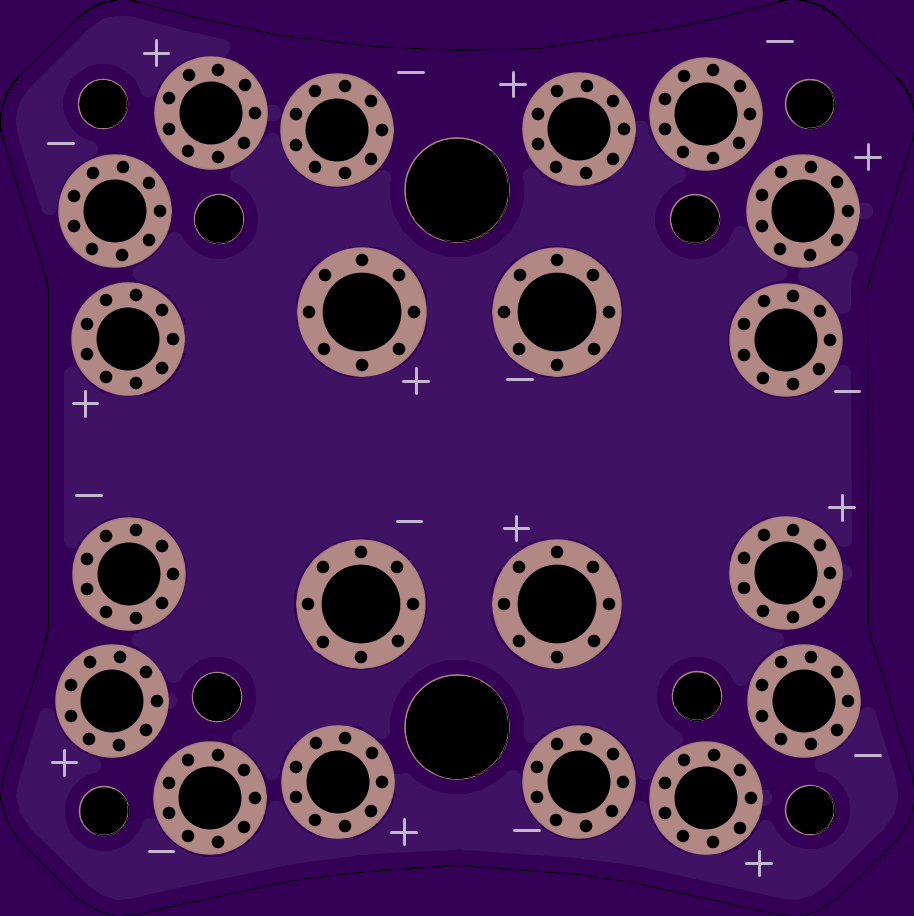

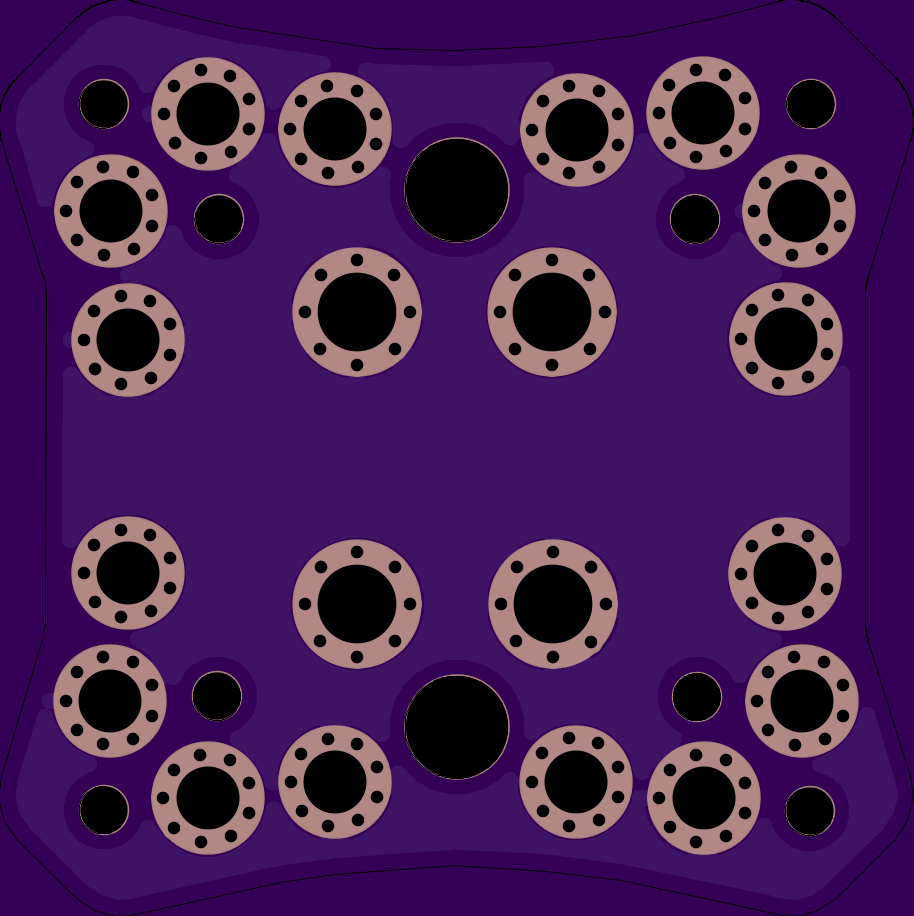

SimplePDBv1
by
irun4fundotca.
2
layer board of
2.29x2.29
inches
(58.09x58.22
mm).
Shared on
October 10th, 2014 04:15.
Simple PDB v1 First revision before final changes were made
$25 and change for 3
