MBGC v1.08

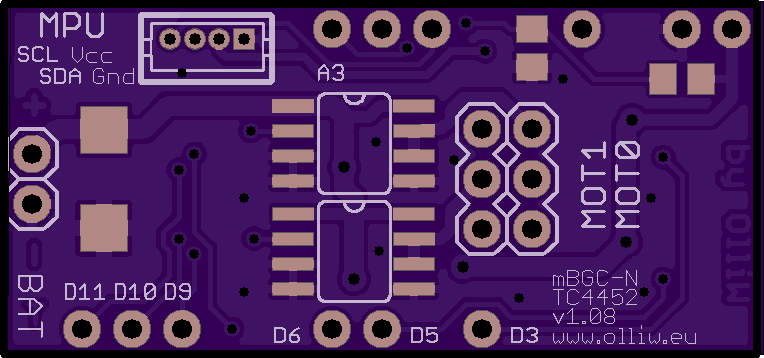

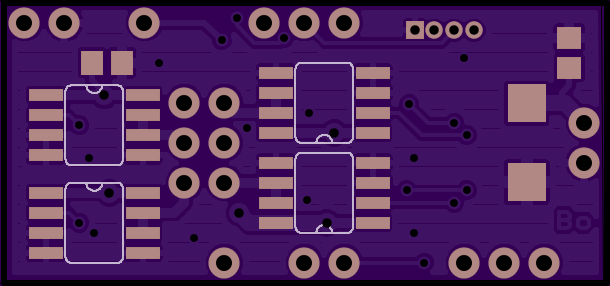

2 layer board of 1.53x0.72 inches (38.79x18.21 mm).
Shared on September 9th, 2013 06:13.

Mini Brushless Gimbal - By OlliW - http://www.olliw.eu/2013/mbgc/?en

Parts list

1x Arduino Nano

6x TC4452

1x 10 uF to 33 uF tantal SMD C

2x 100 nF SMD 0805

1x single-row pin header

1x 10 k SMD 0805

1x 47 k, SMD 0805
