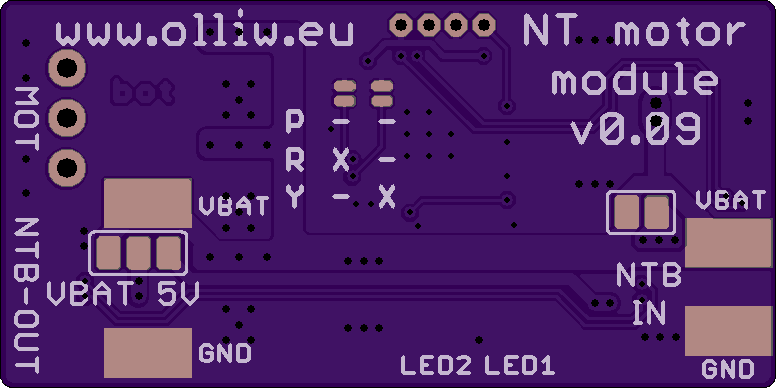

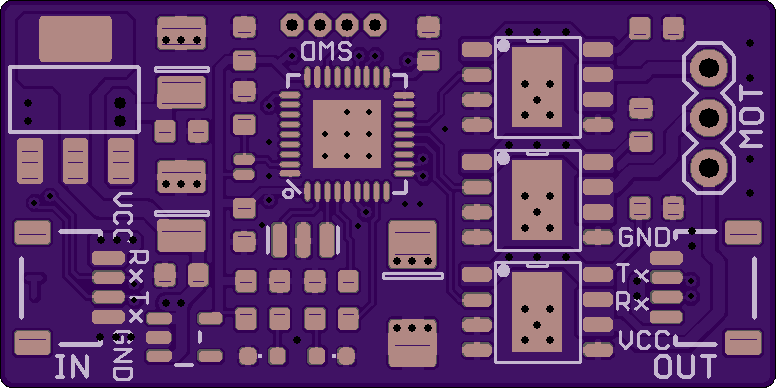

Storm32 NT Motor Module v0.09

by irun4fundotca.
Top
Bottom

2 layer board of 1.55x0.78 inches (39.37x19.71 mm).
Shared on July 1st, 2015 12:48.

$6.00 for three

http://www.rcgroups.com/forums/showpost.php?p=32035018&postcount=82

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

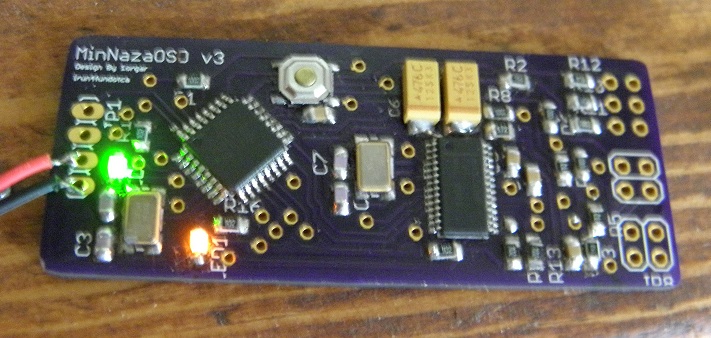

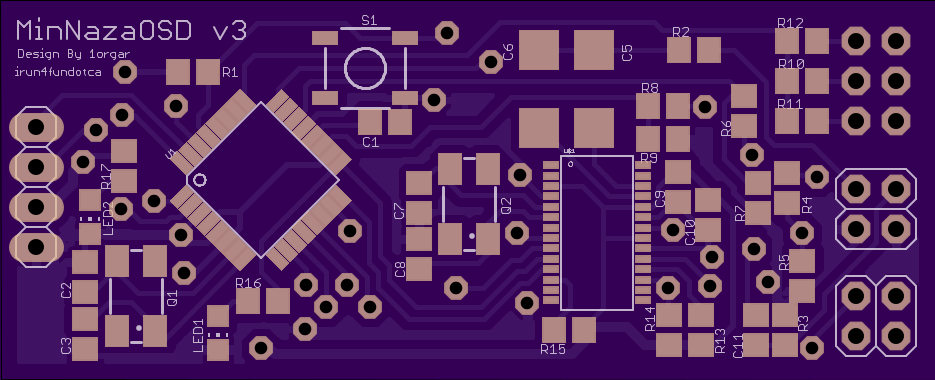

MinNazaOSD v3

by irun4fundotca.
Top
Bottom

2 layer board of 2.34x0.95 inches (59.36x24.13 mm).
Shared on June 29th, 2015 13:21.

MinNaza OSD v3 By 1orgar @ RCGroups

Board: Board

BOM: http://www.rcgroups.com/forums/showatt.php?attachmentid=6745855&d=1399486874

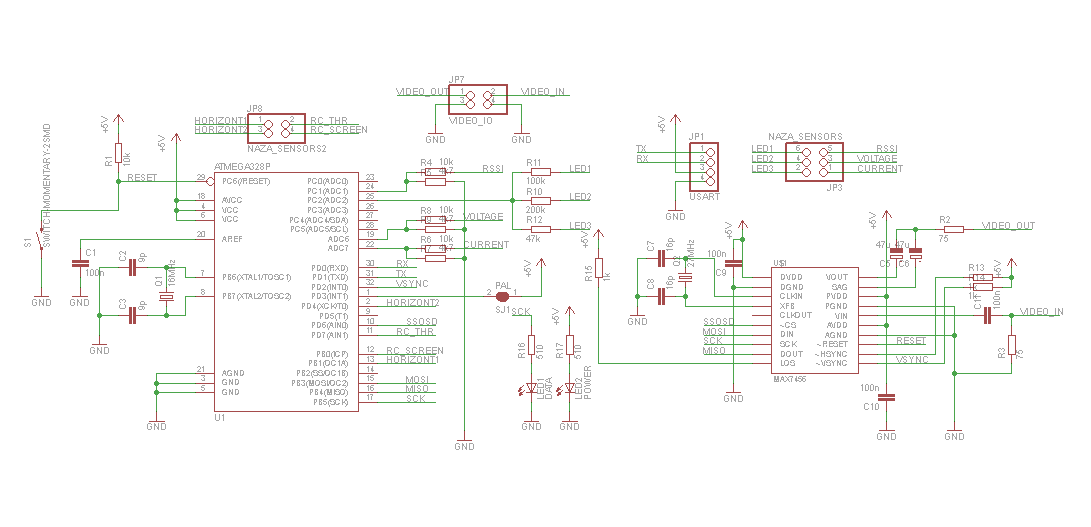

Schematic: Schematic

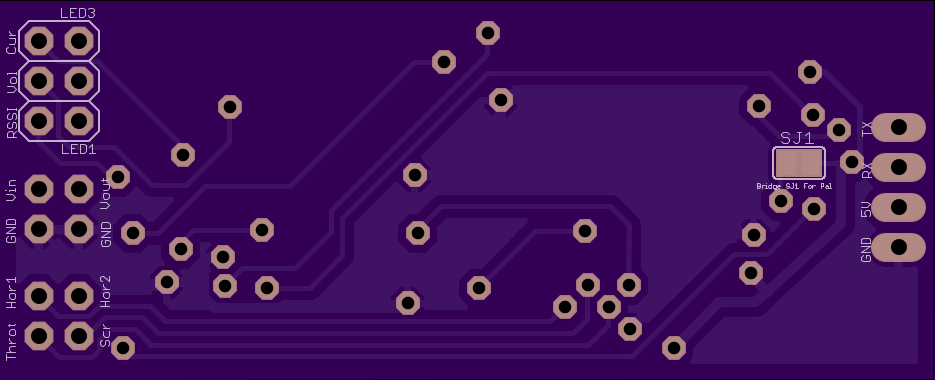

SJ1 on back side must be disconnected by default. This is a PAL solder switch used for calibration

$11.10 for 3

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

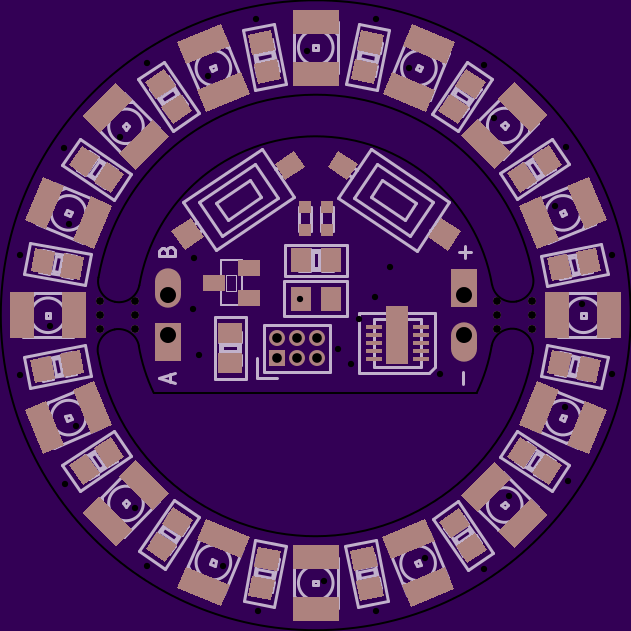

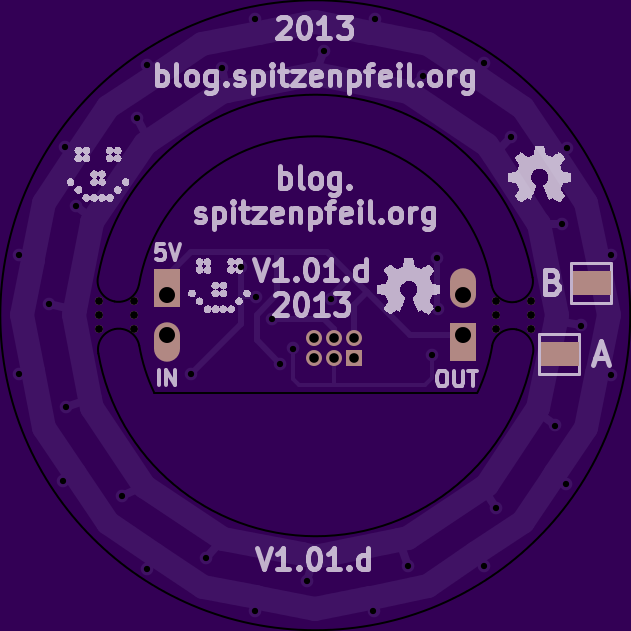

Pentax Led Ring

by irun4fundotca.
Top
Bottom

2 layer board of 1.58x1.58 inches (40.11x40.11 mm).
Shared on April 7th, 2015 21:29.

Pentax LED Ring

!! see silkscreen for design origin !!

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

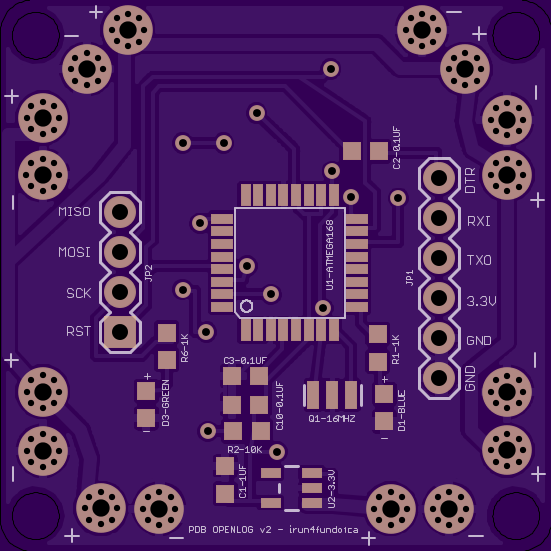

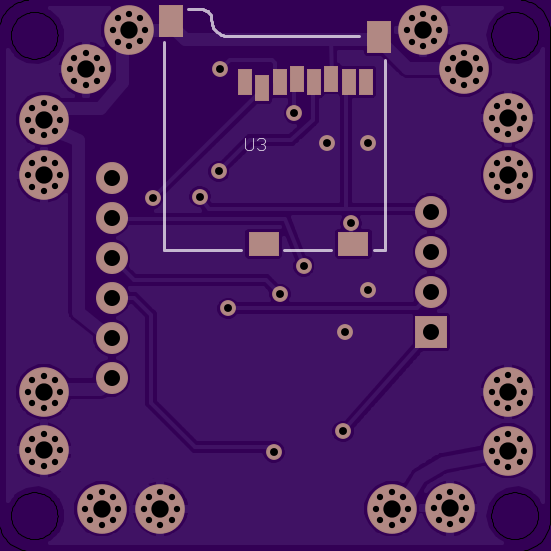

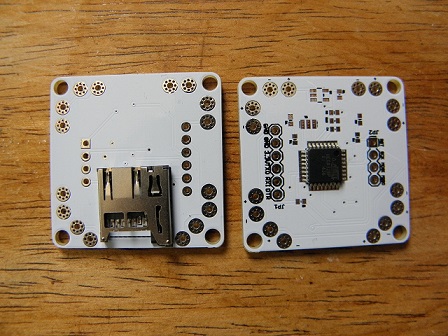

PDB OPENLOG V2.0603

by irun4fundotca.
Top
Bottom

2 layer board of 1.38x1.38 inches (35.00x35.00 mm).
Shared on March 19th, 2015 22:12.

v2.0603 Changes - 0402 to 0603 smd parts, better identification of parts, Thicker ESC Traces

Pic: Pic

$9.45 for three

BOM:

Part - Value - Package - Library - Position (mm) - Orientation

  • C1 1uF 0603-CAP SparkFun (-3.2 -13.6) R90
  • C2 0.1uF 0603-CAP SparkFun (5.7 7.8) R
  • C3 0.1uF 0603-CAP SparkFun (-1.9 -6.5) R0
  • C10 0.1uF 0603-CAP SparkFun (-1.9 -8.2) R180
  • D1 Blue LED-0603 SparkFun (7.2 -8.5) R180
  • D3 Green LED-0603 SparkFun (-7.3 -8.4) R180
  • JP1 Serial Connection 1X06 SparkFun (10.4 6.2) R270
  • JP2 1X04 SparkFun (-9.9 -3.6) R90
  • Q1 16MHz RESONATOR-SMD SparkFun (3.6 -7.6) R180
  • R1 1K 0603-RES SparkFun (6.5 -4.6) R270
  • R2 10K 0603-RES SparkFun (-1.9 -9.9) R0
  • R6 1K 0603-RES SparkFun (-6.6 -4.7) R270
  • U1 ATMEGA328/168 TQFP32-08 SparkFun (0.9 0.8) R90
  • U2 3.3V MIC5205 SOT23-5 SparkFun (1 -13.5) R90
  • U3 microSD Socket MICRO-SD-SOCKET-PP SparkFun (-7 1.6) MR0

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

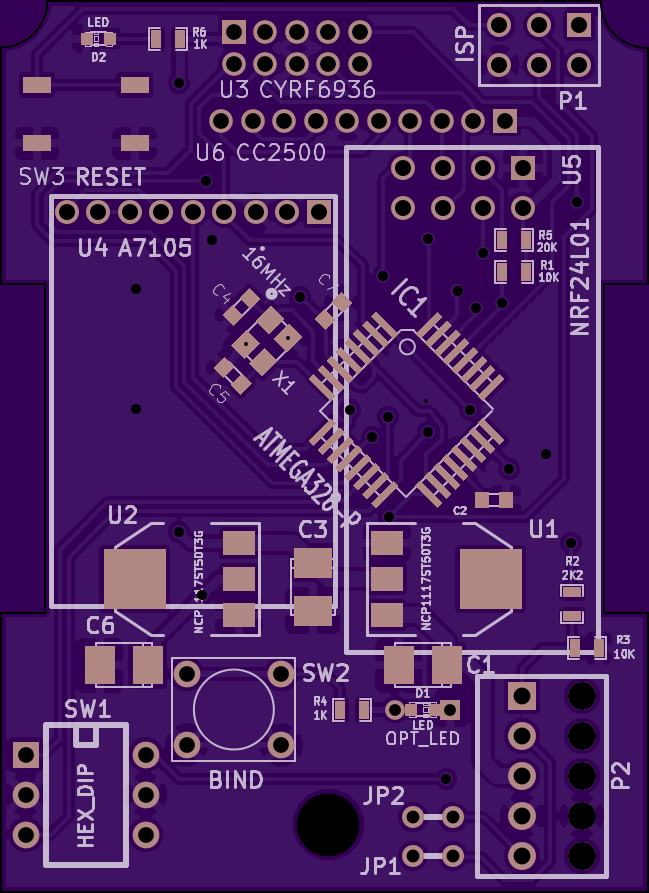

MultiProtocol TX Module V2.3c

by irun4fundotca.
Top
Bottom

2 layer board of 1.62x2.23 inches (41.22x56.72 mm).
Shared on February 12th, 2015 02:40.

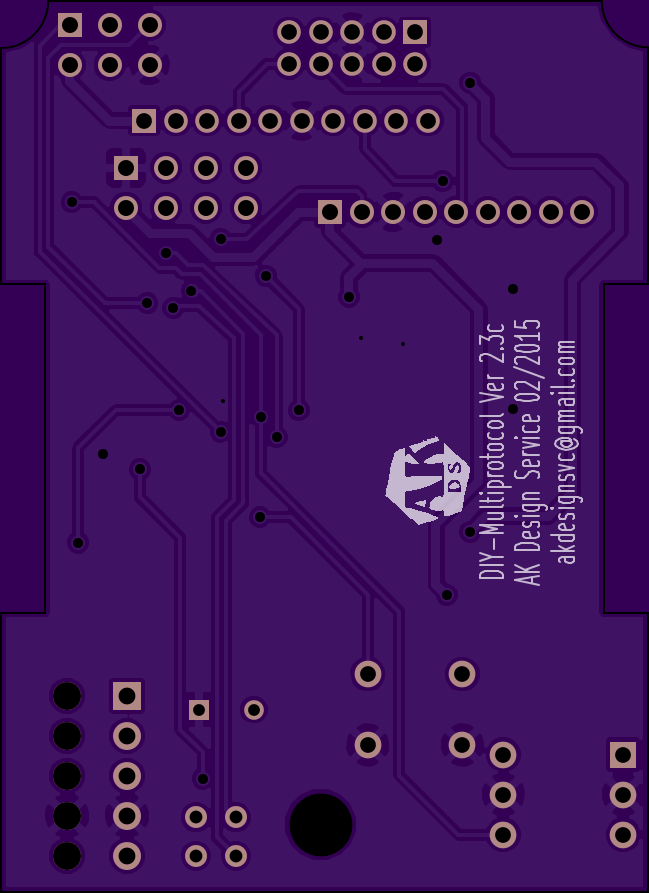

MultiProtocol TX Module 9x/taranis/jr

1.62x2.23 inches (41x57mm). $18.10 for three

Pic: Pic

At the moment protocols supported are:

  • 1.Flysky
  • 2.Hubsan
  • 3.Frsky
  • 4.Hisky
  • 5.V2x2
  • 6.Dsm2
  • 7.Devo
  • 8.Skwlkr(CX-10 red pcb)
  • 9.KN(V977)
  • 10.SymaX(Symax11/12)
  • 11.SymaX4
  • 12.SymaX5C

Thread post

http://www.rcgroups.com/forums/showpost.php?p=30755883&postcount=827

Thread:

http://www.rcgroups.com/forums/showthread.php?t=2165676

Firmware:

http://www.rcgroups.com/forums/showpost.php?p=30934833&postcount=979

BOM File:

http://www.rcgroups.com/forums/showatt.php?attachmentid=7565057&d=1423770640

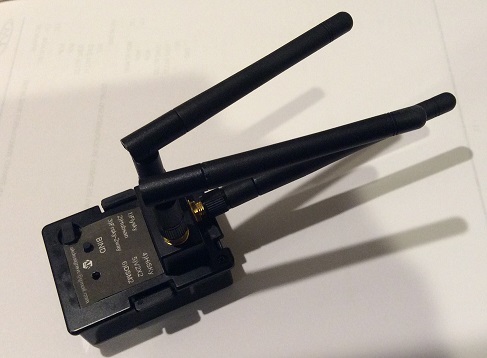

3D Printed JR Module Cover For 1,2,3 Antenna’s STL Files

http://www.rcgroups.com/forums/showpost.php?p=30882560&postcount=949

Module Bay Connectors

http://www.molex.com/molex/products/datasheet.jsp?part=active/0022172052_PCB_RECEPTACLES.xml

Module list http://www.rcgroups.com/forums/showpost.php?p=31058605&postcount=1015

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
