Shared projects
Storm32BGC
by
irun4fundotca.
2
layer board of
1.97x1.97
inches
(50.01x50.01
mm).
Shared on
May 19th, 2014 15:03.

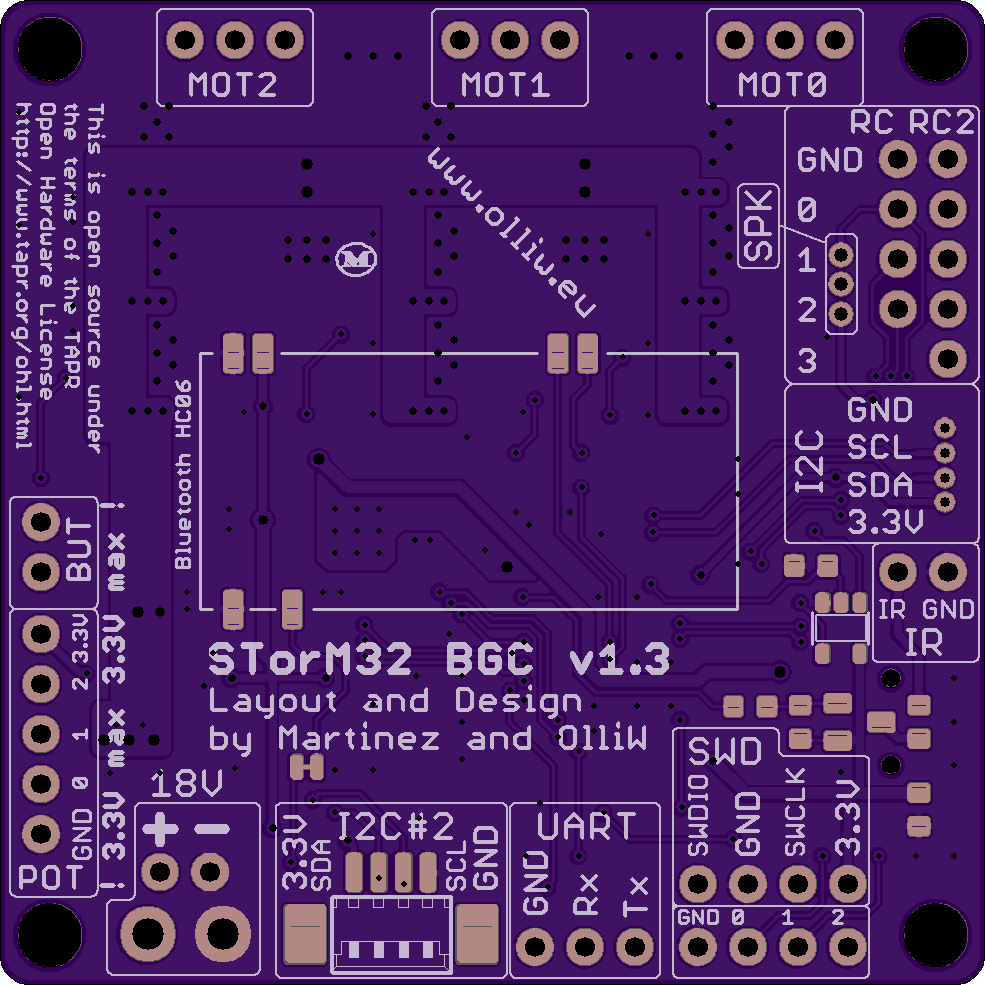

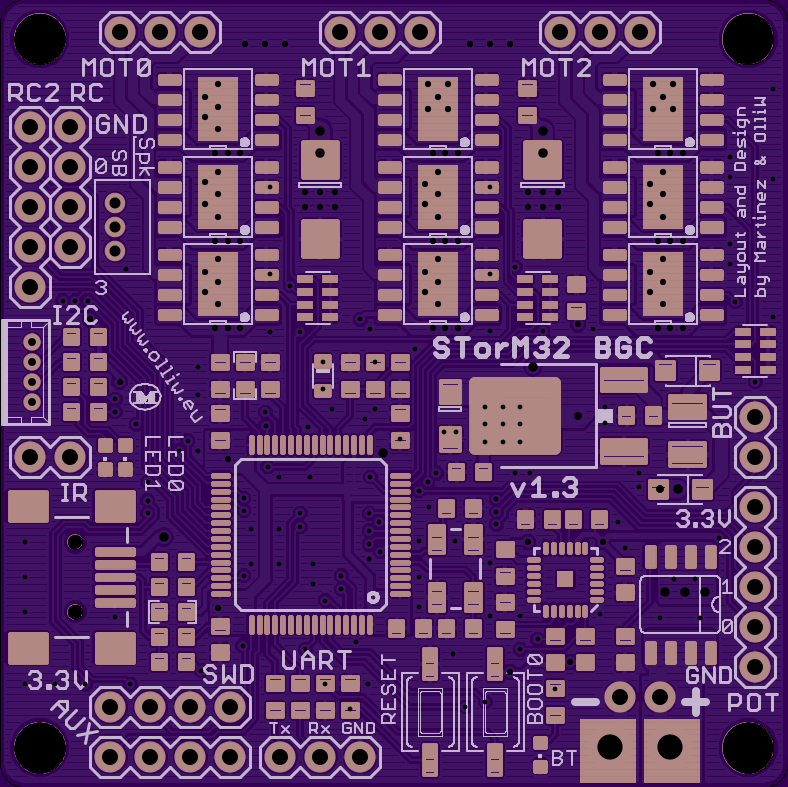

Storm32 3 Axis Brushless Gimbal Controller v1.3
Source: http://www.olliw.eu/2013/storm32bgc/
$19.35 for three
APM LED BUZZ V2A
by
irun4fundotca.
2
layer board of
1.96x0.76
inches
(49.78x19.30
mm).
Shared on
May 9th, 2014 17:18.

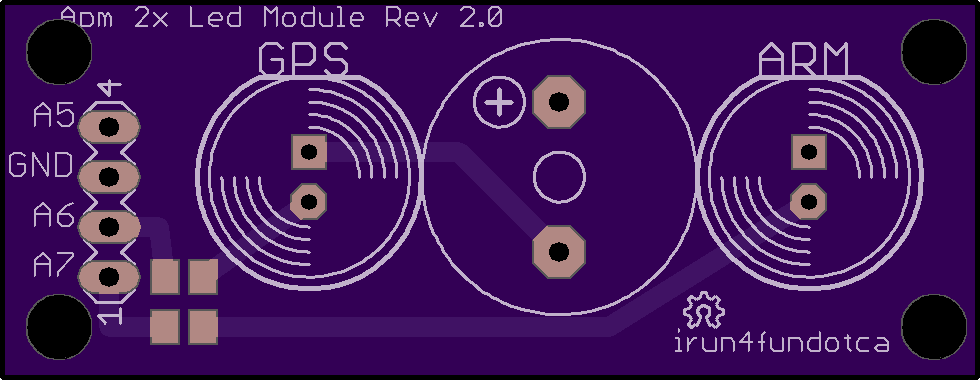

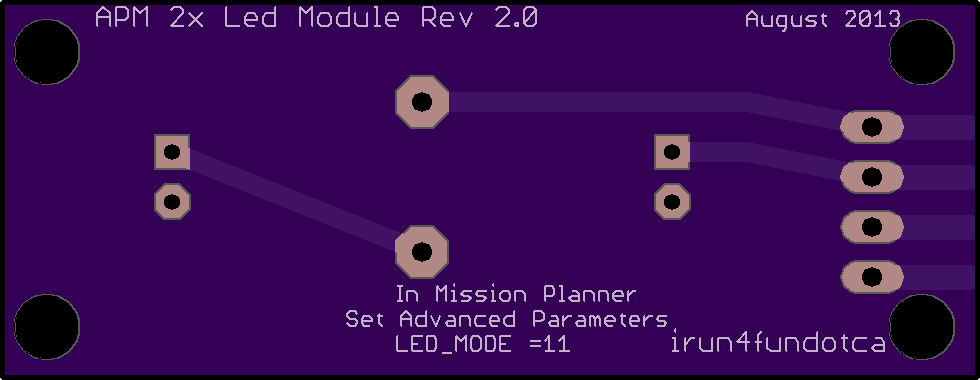

APM Led Buzzer Module V2A $7.40 per set of three Shrunk down & added rear solder pads Thicker Traces
Completed boards
http://www.rcgroups.com/forums/showthread.php?t=2123269
MiniDiverstyV2.0
by
irun4fundotca.
2
layer board of
1.95x1.79
inches
(49.53x45.39
mm).
Shared on
May 3rd, 2014 08:14.

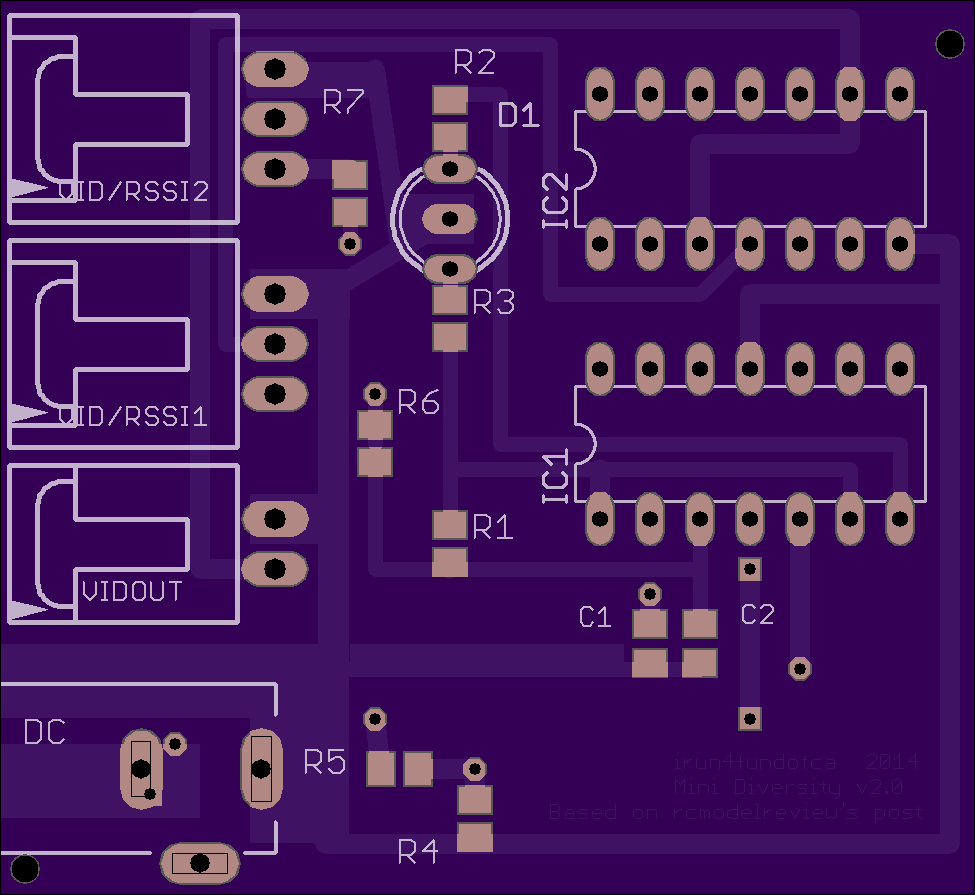

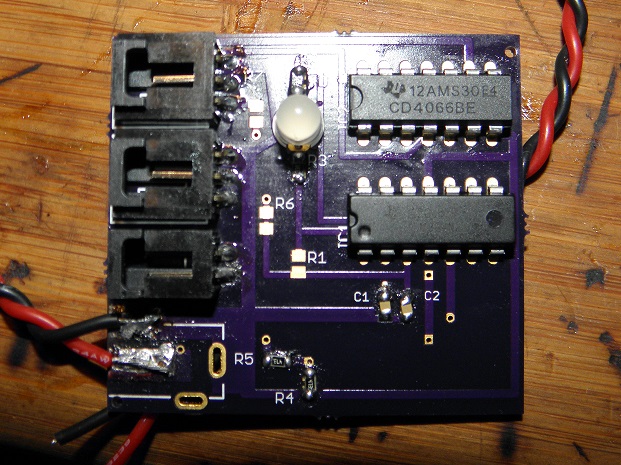

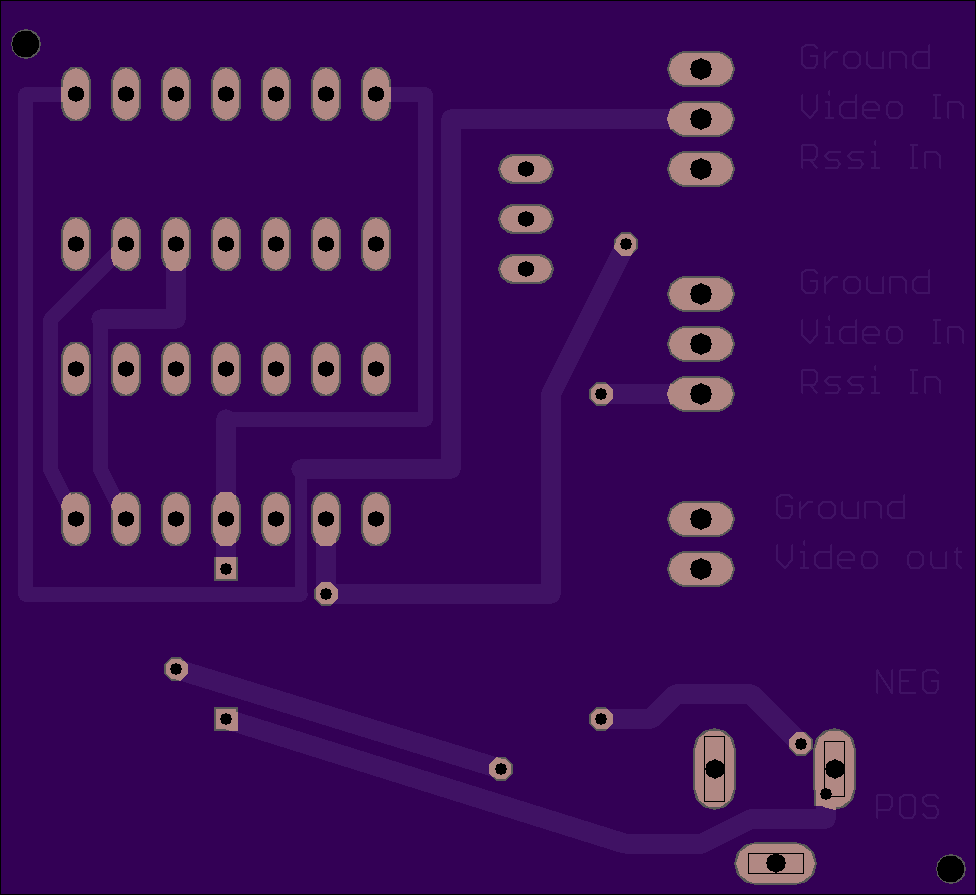

Mini Diversty V2.0 - $17.40 Based From RC Model Reviews Project https://www.youtube.com/watch?v=0zSdIBBydz0 WARNING -= R6 needs to be cut between pads before adding component=-
Board:
RC-USB-JOYSTICK
by
irun4fundotca.
2
layer board of
1.75x1.16
inches
(44.40x29.46
mm).
Shared on
December 29th, 2013 21:13.

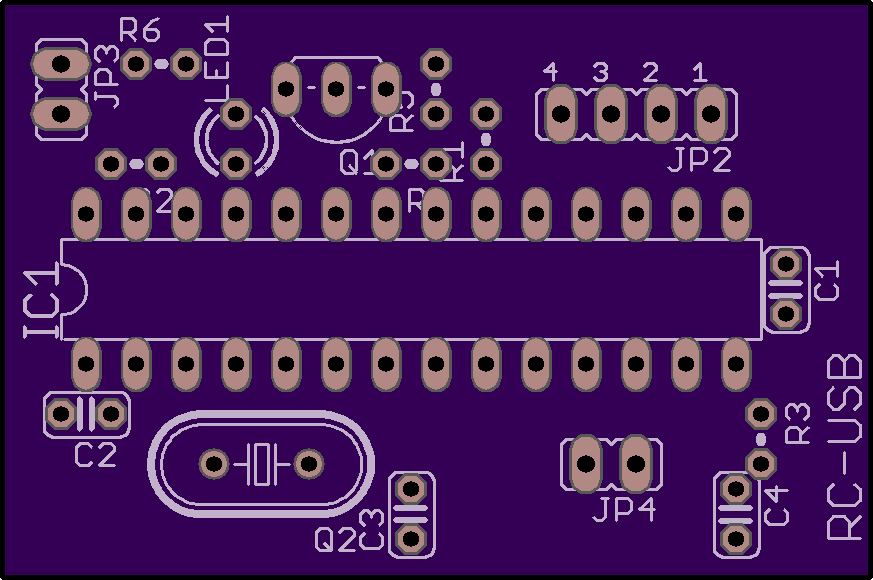

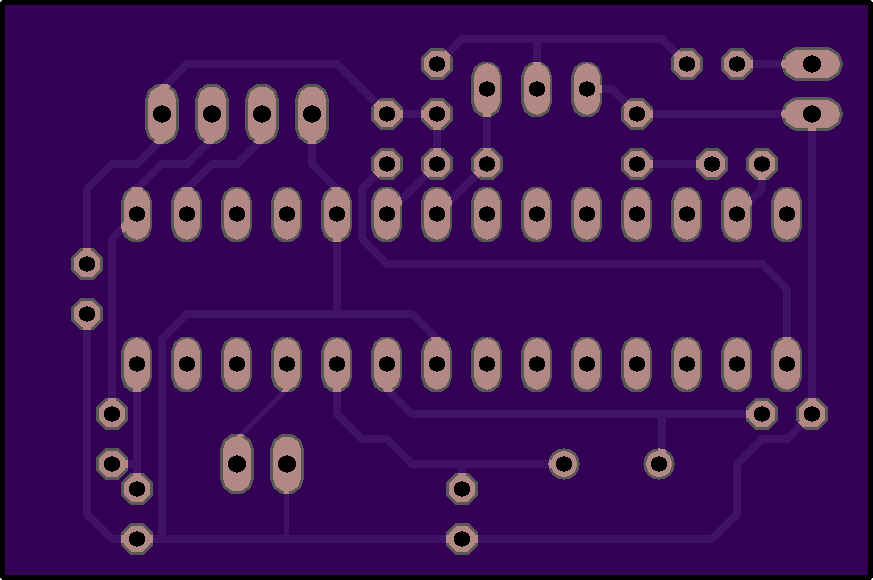

RC-USB Joystick Interface
More info:
http://www.rcgroups.com/forums/showthread.php?t=508122
Schematic:
http://static.rcgroups.net/forums/attachments/2/2/0/9/8/a807626-127-Schematic.jpg
Source files:
http://www.rcgroups.com/forums/showatt.php?attachmentid=804405&d=1145646873
1.2-3ghzConvBRD
by
irun4fundotca.
2
layer board of
2.39x1.30
inches
(60.66x33.02
mm).
Shared on
November 28th, 2013 00:40.

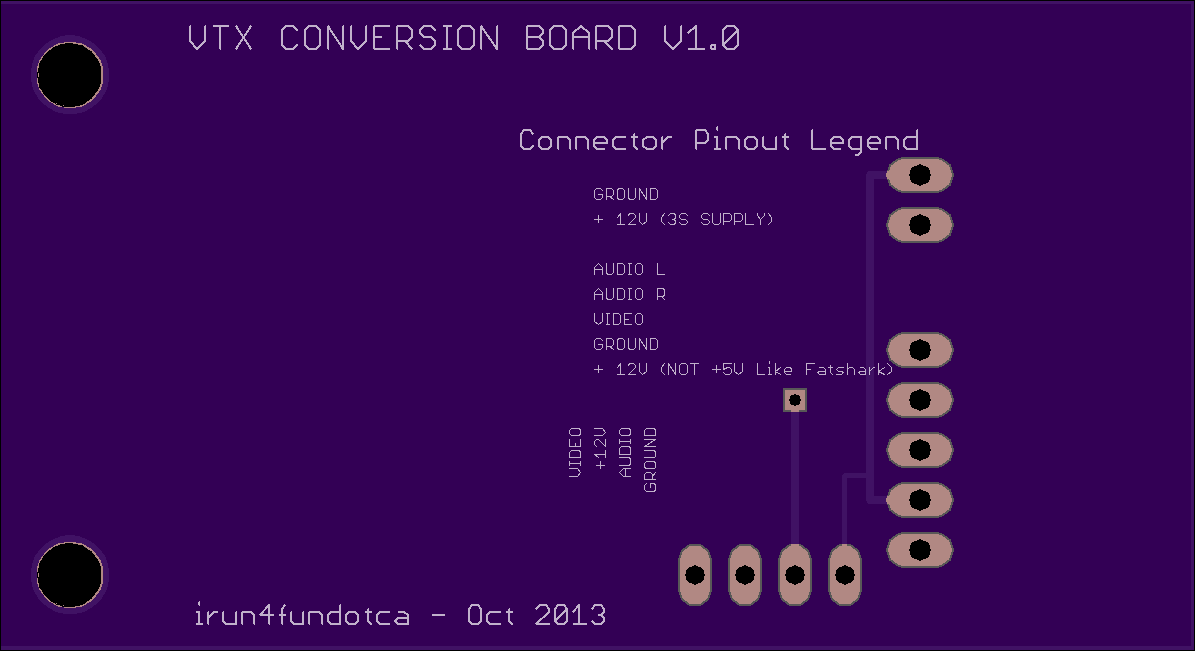

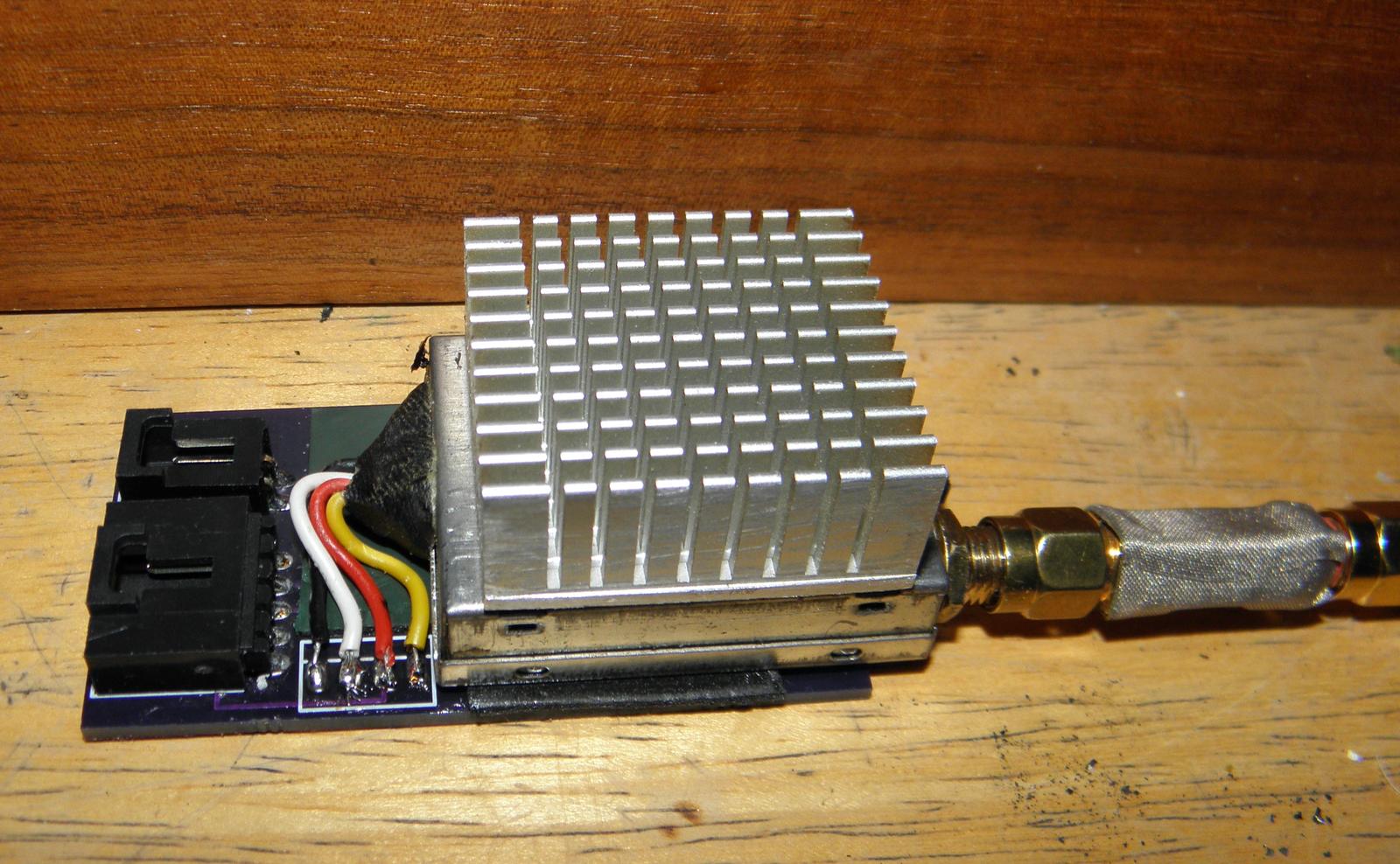

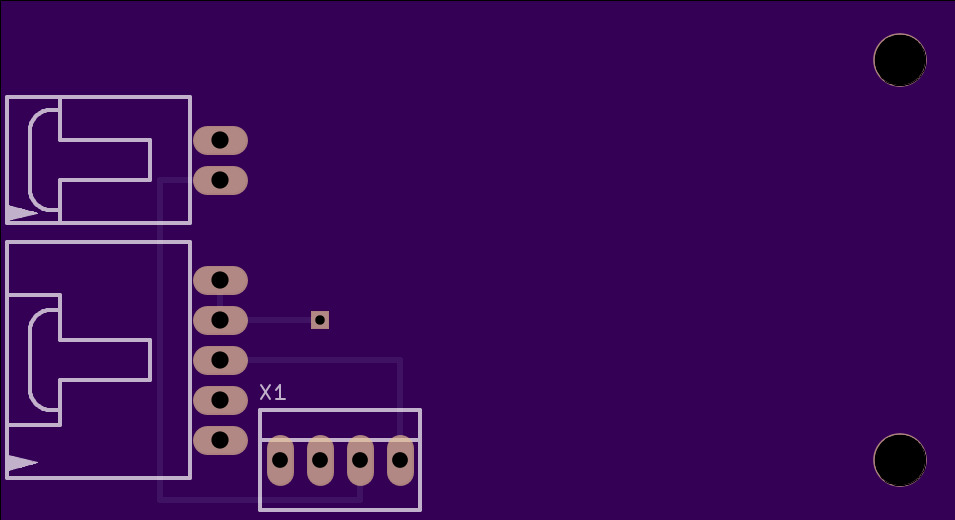

Conversion Board for 1.2 & 1.3Ghz Video Transmitters Stock Lead to Fatshark Style Connectors (12v Out for camera’s not 5v)
more info: http://www.rcgroups.com/forums/showpost.php?p=24739324&postcount=85
Board:
