6. W3056

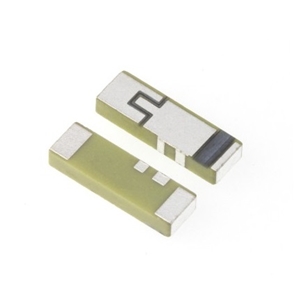

W3056 Image

W3056

Antenna by Pulse Electronics (744 more products)
Download Datasheet Request Quote

Note : Your request will be directed to Pulse Electronics.

The W3056 from Pulse Electronics is a Single Feed GNSS L1 band/Bluetooth/WLAN/WiFi (2.4 - 2.5 GHz) antenna. It delivers a gain of up to 2 dBi and can handle an input power of below 1 watt. This surface mount ceramic antenna measures 10 x 3.2 x 1.5 mm and weighs 0.24 gms.

Product Specifications

    Product Details

    • Part Number :
      W3056
    • Manufacturer :
      Pulse Electronics
    • Description :
      Ceramic Single Feed GNSS/Bluetooth Antenna

    General Parameters

    • Type :
      Ceramic, Low Profile
    • Directionality :
      Omni-Directional
    • Application :
      WiFi, Bluetooth
    • Polarization :
      Vertical
    • Standards :
      GPS, WiFi - 2.4 GHz
    • Frequency :
      1558 to 1616 MHz, 2.40 to 2.48 GHz
    • Gain :
      -0.5 to 2 dBi
    • Power :
      1 W
    • Efficiency :
      65 to 80%
    • Industry :
      GNSS, WiFi / Bluetooth / ZigBee
    • Return Loss :
      -20 to -8 dB
    • Mounting :
      Surface Mount
    • Impedance :
      50 Ohms
    • Multi Band :
      Yes
    • Dimension :
      10 x 3.2 x 1.5 mm
    • Operating Temperature :
      -40 to 85 Degree C
    • Storage Temperature :
      -140 to 85 Degrees C
    • RoHS :
      Yes

    Technical Documents
Click to view more product details on manufacturer's website  »
