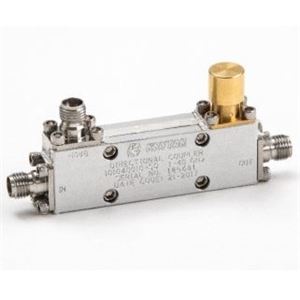

The 101040010SQ from Krytar is a Space Qualified directional coupler that operates from 1 to 40 GHz. It has a coupling value of 10 dB with 1 dB variation over the band and frequency Sensitivity of ±1.52 dB. The coupler has a directivity of over 10 dB and an insertion loss of less than 2 dB. It can handle up to 20 watts of average power and has a VSWR of 1.70:1. The coupler is available in a module that measures 2 (L) x 0.40 (W) x 0.65 (H) inches with 2.4/2.92 mm female connectors and is ideal for electronic warfare (EW), commercial wireless, SATCOM, radar, antenna beam forming, and EMC testing environments. The directional coupler can also be manufactured to meet rigid military specifications.

Products manufactured for Space Applications undergo additional reliability and quality assurance inspections during all phases of assembly, electrical evaluation, and shock/vibration testing.
