6. ZCDC10-K5R44W+

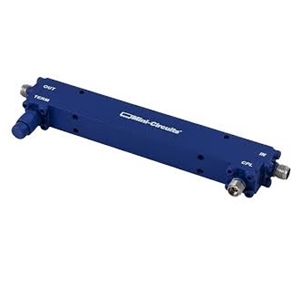

ZCDC10-K5R44W+ Image

ZCDC10-K5R44W+

Directional Coupler by Mini Circuits (233 more products)
Download Datasheet Request Quote

Note : Your request will be directed to Mini Circuits.

The ZCDC10-K5R44W+ from Mini-Circuits is a directional coupler that operates from 0.5 to 40 GHz. It has a coupling value of 10 dB, directivity of over 10 dB and an insertion loss of under 3 dB. The coupler can handle up to 15 watts of power. It is available in a module with 2.92 mm female connectors and is ideal for 5G, mobile, fixed satellite and lab use applications.

Product Specifications

    Product Details

    • Part Number :
      ZCDC10-K5R44W+
    • Manufacturer :
      Mini Circuits
    • Description :
      10 dB Directional Coupler from 0.5 to 40 GHz

    General Parameters

    • Applications :
      5 G, Satellite, Mobile Communication
    • Frequency :
      0.5 to 40 GHz
    • Coupling :
      10 dB
    • Coupling Variation :
      +/-2.2 dB
    • Directivity :
      10 to 30 dB
    • Average Power :
      15 W
    • Insertion Loss :
      0.9 to 3 dB
    • Impedance :
      50 Ohms
    • Return Loss :
      20 to 35 dB
    • Package Type :
      Module with Connectors
    • Connector :
      2.92 mm, 2.92 mm - Female
    • RoHS :
      Yes
    • Operating Temperature :
      -55 to 100 Degrees C
    • Storage Temperature :
      -55 to 100 Degrees C
    • Note :
      DC Pass: Yes
