WiBAS micro-BS

Microwave Backhaul Radio Links by Intracom Telecom | Visit website

Note : Your request will be directed to Intracom Telecom.

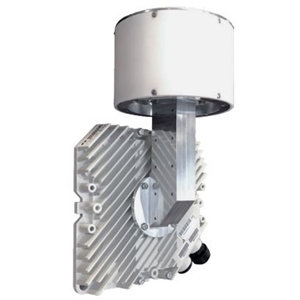

The WiBAS micro-BS from Intracom Telecom is a Point-to-MultiPoint (PtMP) Microwave base station for corporate and residential connectivity, operating in the 28 GHz licensed band. The radio provides a transmit power of up to 15 dBm and has a receiver sensitivity of as low as -82.3 dBm. It has a downlink data rate of up to 1.0 Gbit/s and an uplink data rate of up to 0.5 Gbit/s. This radio delivers state-of-the-art IP connectivity for Fixed Wireless Access (FWA) networks and perfectly suits the operator needs for zero-footprint installations at hard-to-reach home and business subscriber locations.

Coupled with a compact omnidirectional antenna, it can be installed at the center of a village to serve any demanding subscriber within a large area footprint. The base station measuring 200 x 200 x 40 mm, can handle an input power of up to 43 watts.

Product Specifications

    Product Details

    • Part Number :
      WiBAS micro-BS
    • Manufacturer :
      Intracom Telecom
    • Description :
      28 GHz Point-to-Multi-Point Microwave Radio for Fixed Wireless Access Networks

    General Parameters

    • Type :
      Point-to-Multi-Point
    • Frequency :
      27555.5 to 28437.5(Rx), 28563.5 to 29445.5 (Tx)
    • Data Rate :
      1 Gbits/s (Downlink), 0.5 Gbits(Uplink)
    • Frequency Band :
      Ka Band
    • Band :
      Licensed Band
    • Rx Sensitivity :
      -91.3 to -82.3 dBm
    • Modulation :
      1024-QAM
    • Transmission Power :
      15 dBm
    • Configuration :
      Outdoor
    • Integrated Antenna :
      No
    • Dimensions :
      200 x 200 x 40 mm
    • Temperature :
      -33 to 55 Degrees C
    • Storage Temperature :
      -40 to 85 Degrees C
    • RoHS :
      Yes
