6. 50FHLB-XXX-100
50FHLB-XXX-100 Image

50FHLB-XXX-100

Fixed Attenuator by JFW Industries | Visit website (76 more products)
Download Datasheet Request Quote

Note : Your request will be directed to JFW Industries.

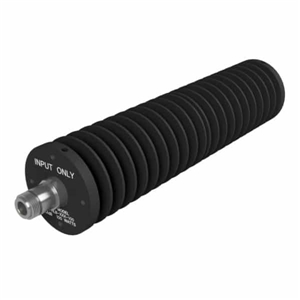

The Model 50FHLB-xxx-100 from JFW Industries is a uni-directional 100 Watt fixed attenuator that operates DC to 3 GHz. It is available with an attenuation range of 10, 20 or 30 dB. The attenuator has an integrated heatsink that is only 2.25 inches in diameter and has coaxial RF connectors (N, 4.3/10, or 7/16) matched to 50 ohms.

Product Specifications

    Product Details

    • Part Number :
      50FHLB-XXX-100
    • Manufacturer :
      JFW Industries
    • Description :
      100 Watt Fixed Attenuator from DC to 3 GHz

    General Parameters

    • Frequency :
      DC to 3 GHz
    • Attenuation :
      10, 20, 30 dB
    • Power :
      100 W
    • Peak Power :
      1000 W
    • VSWR :
      1.3:1, 1.5:1
    • Package Type :
      Connectorized
    • Connector :
      N Type, 4.3/10, 7/16 DIN
    • Dimension :
      9.08 (L) x 2.25 (D) Inch
    • Impedance :
      50 Ohms
    • Attenuation Accuracy :
      +/-0.5 to +/-0.75 dB
    • Operating Temperature :
      -55 to 100 Degree C

    Technical Documents
