5. CMD257C4

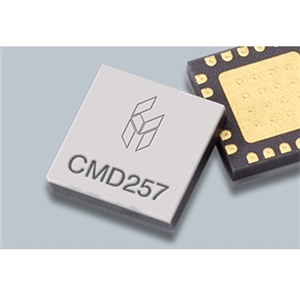

CMD257C4 Image

CMD257C4

RF Mixer by Custom MMIC (17 more products)
Download Datasheet Request Quote

Note : Your request will be directed to Custom MMIC.

The CMD257C4 is a surface mount compact I/Q mixer with a RF/LO frequency from 6 to 10 GHz and IF Frequency from DC to 3.5 GHz. It has a low conversion loss of 5.5 dB, high LO to RF isolation of 40 dB, and an input IP3 of 25 dBm across the bandwidth. The CMD257C4 can be configured as an image reject mixer or single sideband upconvertor by utilizing two double balanced mixer cells and a 90 degree hybrid. It is available in a 4 x 4 mm ceramic QFN surface mount package and provides an image rejection of 30 dB. An external IF hybrid is needed to complete the image rejection.

Product Specifications

    Product Details

    • Part Number :
      CMD257C4
    • Manufacturer :
      Custom MMIC
    • Description :
      6 to 10 GHz High IP3 I/Q Mixer

    General Parameters

    • Type :
      I/Q Mixer, Image Reject Mixer
    • RF Frequency :
      6 to 10 GHz
    • LO Frequency :
      6 to 10 GHz
    • IF Frequency :
      DC to 3.5 GHz
    • Image Rejection :
      22 to 31 dB
    • Conversion Loss :
      5.5 to 9 dB
    • LO Drive - Power :
      27 dBm
    • P1dB :
      15 dBm
    • IP3 :
      24 dBm
    • LO/RF Isolation :
      34 to 45 dB
    • LO/IF Isolation :
      13 to 18 dB
    • Package Type :
      Surface Mount
    • Dimension :
      4 x 4 mm
    • Operating Temperature :
      -40 to 85 Degree C
    • Storage Temperature :
      -55 to 150 Degree C
    • RoHS :
      Yes
