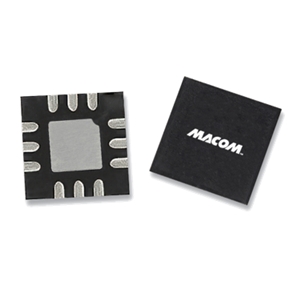

MAMX-011054 Image

MAMX-011054

RF Mixer by MACOM (236 more products)
Download Datasheet Request Quote

Note : Your request will be directed to MACOM.

The MAMX-011054 from MACOM is a double-balanced passive diode mixer with a RF/LO frequency from 18 to 46 GHz and IF frequency from DC to 20 GHz. It has a conversion loss of 6.5 dB, high LO to RF isolation of 35 dB, and an input IP3 of 20 dBm across the bandwidth. The mixer is available is available in a 3 mm, 12-lead AQFN package and is ideal for applications such as test and measurement, microwave radios and radars. The MAMX-011054 is also available in die form.

Product Specifications

    Product Details

    • Part Number :
      MAMX-011054
    • Manufacturer :
      MACOM
    • Description :
      18 to 46 GHz Double-Balanced Mixer

    General Parameters

    • Type :
      Double Balanced Mixer
    • RF Frequency :
      18 to 46 GHz
    • LO Frequency :
      18 to 456 GHz
    • IF Frequency :
      DC to 20 GHz
    • Conversion Loss :
      6.5 to 7.5 dB
    • LO Drive - Power :
      15 dBm
    • P1dB :
      10 to 12 dBm
    • IP2 :
      50 dBm
    • IP3 :
      20 dBm
    • LO/RF Isolation :
      35 dB
    • LO/IF Isolation :
      25 to 45 dB
    • Impedance :
      50 Ohms
    • Package Type :
      Surface Mount
    • Package :
      12-lead AQFN
    • Dimension :
      3 x 3 mm
    • Operating Temperature :
      -55 to 85 Degree C
    • Storage Temperature :
      -65 to 150 Degree C
    • RoHS :
      Yes
