6. ADA-500-2000-60/0.5

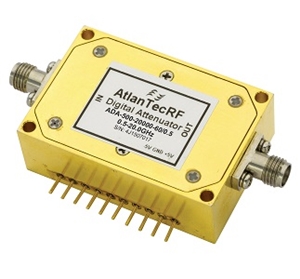

ADA-500-2000-60/0.5 Image

ADA-500-2000-60/0.5

RF Variable Attenuator by AtlanTecRF (2 more products)
Download Datasheet Request Quote

Note : Your request will be directed to AtlanTecRF.

The ADA-500-2000-60/0.5 from AtlanTecRF is a 7-bit Digital Control PIN Attenuator that operates from 0.5 to 20 GHz. The attenuator has an attenuation range of 60 dB with a 0.5 dB step size. The attenuator has a fast switching speed of under 200 ns and can handle an input power of up to 25 dBm. It is available in a module that measures 45 x 30 x 12 mm with SMA female connectors.

This digital attenuator is part of AtlanTecRF’s expanding range of ultra broadband microwave components and sub-systems designed for wide ranging applications in test and measurement, electronic countermeasures, scientific research and general communications.

Product Specifications

    Product Details

    • Part Number :
      ADA-500-2000-60/0.5
    • Manufacturer :
      AtlanTecRF
    • Description :
      7-bit Digital PIN Attenuator from 0.5 to 20 GHz

    General Parameters

    • Type :
      Digital
    • Frequency :
      500 MHz to 20 GHz
    • Bits :
      7 Bit
    • Channels :
      1 Channel
    • Configuration :
      Solid State
    • Attenuation Range :
      60 dB
    • Step Size :
      0.5 dB
    • Power :
      0.31 W
    • Insertion Loss :
      10 dB
    • Supply Voltage :
      -5/5 V
    • Interface :
      TTL/Serial/Parallel
    • Impedance :
      50 Ohms
    • VSWR :
      2.0:1
    • Package Type :
      Module with Connectors
    • Dimension :
      45 x 30 x 12mm
    • Connector :
      SMA, SMA - Female
    • Control Interface :
      TTL
    • Operating Temperature :
      -40 to 70 Degrees C
    • Storage Temperature :
      -55 to 85 Degrees C
