5. PD-NS00-8S

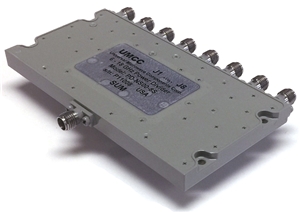

PD-NS00-8S Image

PD-NS00-8S

Power Divider by UMCC (154 more products)
Download Datasheet Request Quote

Note : Your request will be directed to UMCC.

The PD-NS00-8S from UMCC is a 8-way power divider that operates from 6 to 18 GHz. It has an insertion loss of under 2.2 dB, isolation of over 18 dB and can handle an average input power of up to 10 watts. The device is available in a module with SMA female connectors.

Product Specifications

    Product Details

    • Part Number :
      PD-NS00-8S
    • Manufacturer :
      UMCC
    • Description :
      8-Way Power Divider from 6 to 18 GHz

    General Parameters

    • Configuration :
      8 Way
    • Type :
      Lumped Element Power Divider, Microstrip Power Divider, Stripline Power Divider
    • Frequency :
      6 to 18 GHz
    • Insertion Loss :
      2.2 dB
    • Isolation :
      18 dB
    • Input Power :
      10 W
    • Amplitude Balance :
      ±0.3 dB
    • Phase Balance :
      ±7 Degrees
    • Impedance :
      50 Ohms
    • VSWR Input :
      1.55:1
    • VSWR Output :
      1.35:1
    • Package Type :
      Module With Connectors
    • Connector :
      SMA, SMA - Female
    • Dimension :
      2.00” x 4.00” x 0.28”
    • Grade :
      Commercial, Military, Space
    • Storage Temperature :
      -60 to 110 Degree C
    • Operating Temperature :
      -55 to 95 Degree C
