5. 1479

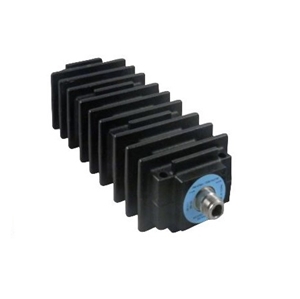

1479 Image

1479

Termination by API Technologies - Weinschel (191 more products)
Download Datasheet Request Quote

Note : Your request will be directed to API Technologies - Weinschel.

The Model 1479 from API Weinschel are low PIM terminations that operate from DC to 6.5 GHz. They can handle up to 175 watts of average power and 10,000 Watts of Peak Power. The 50 ohm terminations can operate over a wide temperature range from -55 to 125 degrees C. They are available in a module with an N-type or SMK (Male or Female) connector.

Product Specifications

    Product Details

    • Part Number :
      1479
    • Manufacturer :
      API Technologies - Weinschel
    • Description :
      175 W Low PIM Terminations from DC to 6.5 GHz

    General Parameters

    • Type :
      Coaxial Termination
    • Frequency :
      DC to 6.5 GHz
    • Power :
      175 W
    • Peak Power :
      10 kW
    • Impedance :
      50 Ohms
    • Connector :
      N Type, N Type - Female, N Type - Male, SMK, SMK - Male, SMK - Female
    • VSWR :
      1.10:1, 1.15:1
    • PIM :
      -120 dBc
    • Weight :
      1.3 kg
    • Operating Temperature :
      -55 to 125 Degree C
    • Rohs :
      Yes
