6. R420
R420 Image

R420

RFID Reader by Impinj (2 more products)
Download Datasheet Request Quote

Note : Your request will be directed to Impinj.

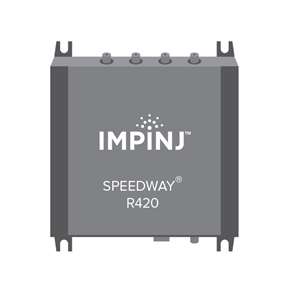

The R420 from Impinj is a RAIN RFID Reader with 4 Antenna Ports, extendable up to 32 antennas with the Impinj Antenna Hub that supports short and long-range reads. The reader has exclusive operational modes for high throughput, high tag density use cases and patented AutoPilot technology that automatically optimizes the reader's operation for its environment. It provides up to 1100 tag reads per second and has a receive sensitivity of under -84 dBm.The reader measures 7.5 x 6.9 x 1.2 inches, weighs 0.7 kg and is ideal for Inventory management and asset tracking applications.

Product Specifications

    Product Details

    • Part Number :
      R420
    • Manufacturer :
      Impinj
    • Description :
      RAIN RFID Reader Supporting up to 32 Antennas

    General Parameters

    • Air Interface Protocol :
      EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
    • Antenna Ports :
      4 RP-TNC, monostatic
    • Application :
      LLRP, GSM, CDMA
    • Data Interface :
      RS-232, Ethernet
    • Demo Software :
      MultiReader Software
    • Dimension :
      7.5 x 6.9 x 1.2 in (190.5 x 175.3 x 30.5 mm)
    • GPIO :
      4 GPI optically isolated 3-30V/ 4 GPO optically isolated, 0-30V
    • Host API :
      .NET
    • IP Rating :
      IP 52
    • RoHS :
      Yes
    • Type :
      Fixed Reader, POE Reader, Wi-fi Reader
    • Weight :
      1.5 lbs (680.3 g)
    • Frequency :
      UHF 860 to 960 MHz, region dependent
    • Operating Temperature :
      -20 to 50 Degree C
    • Power :
      10.0 to 30.0 dBm, 10.0 to 32.5 dBm
    • Rx Sensitivity :
      -82 dBm
    • Supply Voltage :
      24 VDC @ 800 mA
    • Note :
      Read Speed: 1100 tags/second
