tonight I was bored and so I mocked up my design.

better render

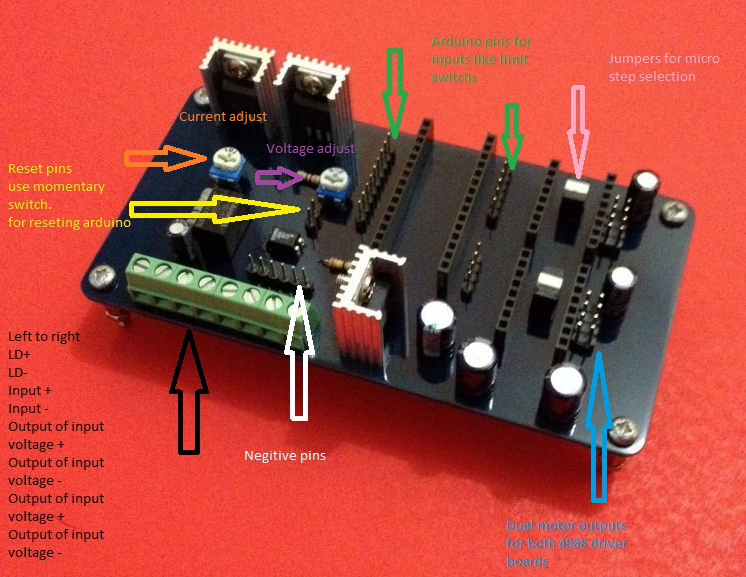

could someone confirm that LD+ and LD- is for the laser diode, input thats where the power comes in (i know thats obvious) and the output of input could be used for the fans to remove the exhaust. is the reset pins for the arduino like a cancel button. and what is the negative pins for

Robert Hummel how did you connect the fans up to a power supply because it comes with a 3 pin connector.

The third wire is just a tachometer.

So if I only plug up the positive and negative it will it run full power

i need something the contain the laser cutter that will easy enough to cut out a area for the fan i would have liked to use acrylic but it only goes up to a size of 1250 width but i need a bit more than 1500.
Any ideas?

For the sides I am just going to use MDF. I might make MDF cage with a small acrylic window.

That is sweet. Now if openbuild will ship my order

Move? guess I am not read-up on what is going on.

what should i use that is cheap and in big enough size to be put under and on top of the laser.
i will probably put acrylic window in it

Do you know of anyplace you can get a metal sheet 1.6m long and wide

or what did you use to put under the laser because i believe you would use something very safe

Boy, I'm having a Hell of a time getting all for the wheels to turn freely!

Sweet parts shipped today. Parked as partial shipped. Anyone have more details on what that means

video?

No,

Hmm, hard to help without anything to go on.

I don't have it runing. Been tring to get all the wheels to turn freely. Some do and some don't. I'm abouth ready to junk to whole thing.

Well if you cant help us trouble shoot the issue that might be your only course. I understand your are frustrated but saying it does not work does not give us anything to work with on helping you come up with a viable solution.

I don't know how to say it , I can't get all the wheels ajusted so thet all turn.

Hi Robert,
Can I ask a question about the 2x 330 uF caps on the board that you have placed between Vmot and Gnd. This is in addition to the 2 x 100 uF which are placed close to Vmot pin 11, and which appear in most stepstick circuits. I wondered if you needed to add the extra smoothing caps because you found problems with noise, or maybe they are there just as a precaution? Reason I ask is because I am playing around with a similar stepstick arrangement for the first time, and any operational feedback is valuable (except from the motors of course ;-) )
