Shared projects

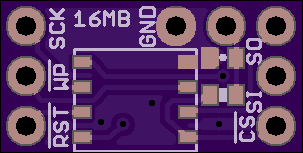

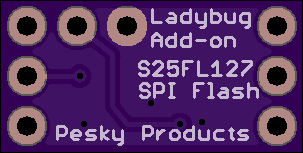

LadybugSPIFlashAddOn.v02

by PeskyProducts.
Top
Bottom

2 layer board of 0.61x0.31 inches (15.39x7.75 mm).
Shared on December 11th, 2016 05:24.

128 Mbit (16 Mbyte) SPI NOR flash memory add-on for Ladybug (STM32L432) development board. See kickstarter: https://www.kickstarter.com/projects/2109048010/arduino-programmable-cortex-m4f-development-boards

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

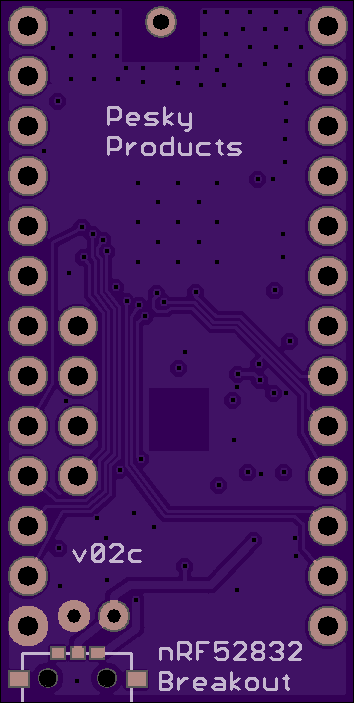

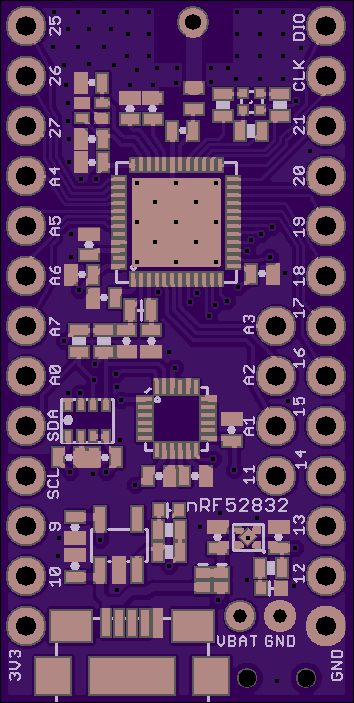

nRF52832_QFN48.v02c

by PeskyProducts.
Top
Bottom

4 layer board of 0.71x1.41 inches (17.96x35.71 mm).
Shared on December 2nd, 2016 04:33.

nRF52 development board with MPU9250 interrupt changed to pin 8 to expose NFC pins.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

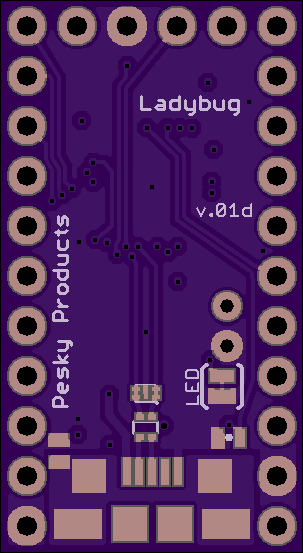

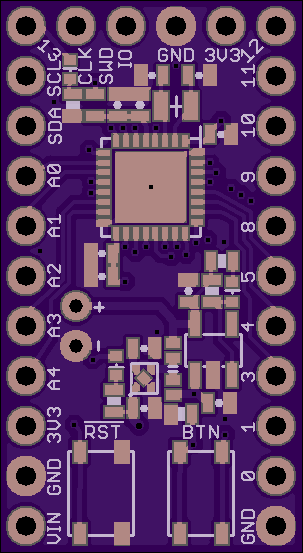

Ladybug.v01d

by PeskyProducts.
Top
Bottom

4 layer board of 0.61x1.11 inches (15.39x28.07 mm).
Shared on December 2nd, 2016 00:30.

STM32L432 development board. Added MAX1555 LiPo battery charger.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

mpu9250MicroTeensy3.6.Shield.v04x

by PeskyProducts.
Top
Bottom

2 layer board of 0.51x0.30 inches (12.83x7.62 mm).
Shared on November 27th, 2016 04:50.

MPU9250+MS5637 10 DoF add on for Teensy 3.6

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

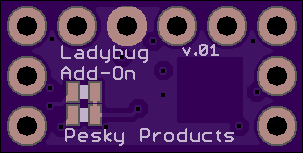

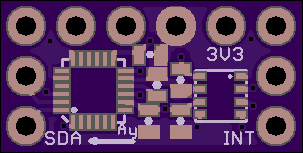

BME280.MPU9250.v01

by PeskyProducts.
Top
Bottom

4 layer board of 0.61x0.31 inches (15.39x7.75 mm).
Shared on November 20th, 2016 04:49.

BME280 pressure/temperature/humidity sensor combination and MPU9250 accelerometer/gyro/magnetometer combination in a small add-on board for Ladybug (STM32L432 Development Board).

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
