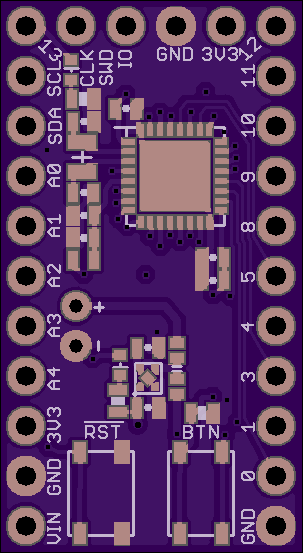

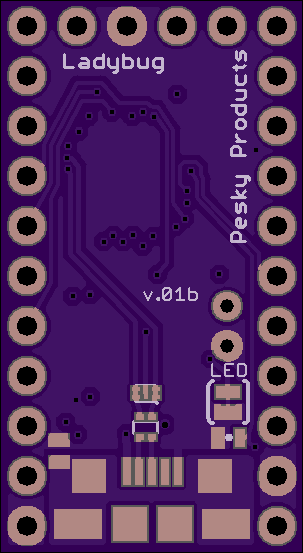

Ladybug.v01b
by
PeskyProducts.
4
layer board of
0.61x1.11
inches
(15.39x28.07
mm).
Shared on
October 30th, 2016 01:22.
Basic STM32L432 80 MHz ARM Cortex M4F 32-pin QFN package breakout board prototype, 33% smaller than the Dragonfly pcb. Rearranged buttons and pin mapping. removed VDDA through hole.

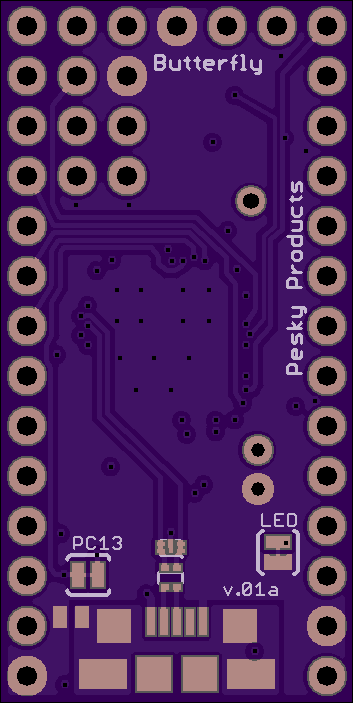

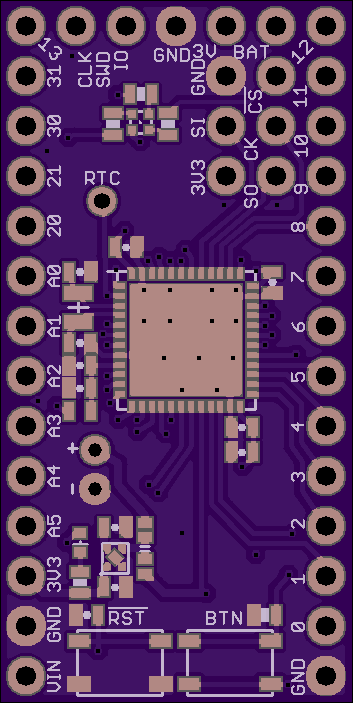

Butterfly.v01a
by
PeskyProducts.
4
layer board of
0.71x1.41
inches
(17.91x35.71
mm).
Shared on
October 29th, 2016 19:33.
Low-cost Dragonfly-lite breakout board prototype using the STM32L433CCU6 80 MHz ARM Cortex M4F 48-pin QFN package. Replaced single led with rgb led, moved 3 x 2 connector to be compatible with Dragonfly shields, added ferrite bead on VDDA.

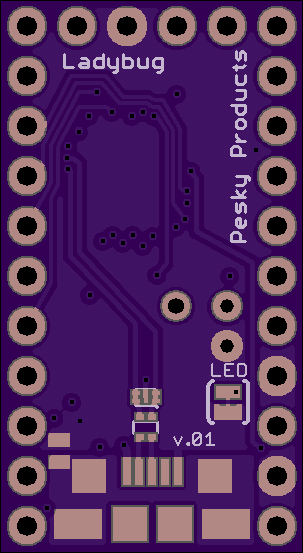

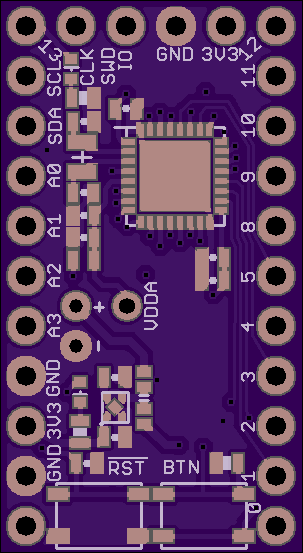

Ladybug.v01
by
PeskyProducts.
4
layer board of
0.61x1.11
inches
(15.39x28.07
mm).
Shared on
October 28th, 2016 03:43.
Basic STM32L432 80 MHz ARM Cortex M4F 32-pin QFN package breakout board prototype, 33% smaller than the Dragonfly pcb.
Solarcharger.v01a
by
PeskyProducts.
2
layer board of
0.51x0.51
inches
(12.83x12.83
mm).
Shared on
October 10th, 2016 04:13.
Test board using TI’s BQ25504 DC/DC boost converter to charge a 1S LiPo battery using a small solar cell, with connection to also power a system load. Broke out Vstor (Vsys) and Battery OK.
Solarcharger.v01
by
PeskyProducts.
2
layer board of
0.51x0.51
inches
(12.85x12.83
mm).
Shared on
October 10th, 2016 00:56.
Test board using TI’s BQ25504 DC/DC boost converter to charge a 1S LiPo battery using a small solar cell, with connection to also power a system load.
