Profile for PeskyProducts
Shared projects

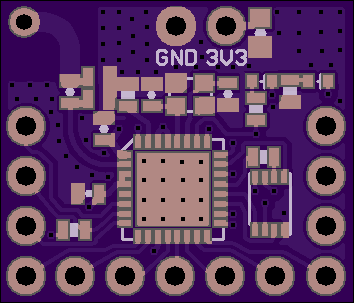

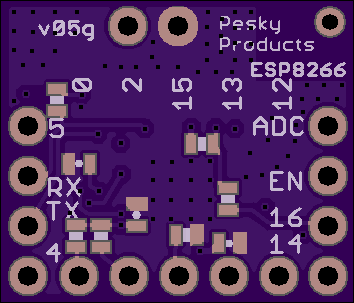

ESP8266.ButterflyAddOn.v05g
by
PeskyProducts.
4
layer board of
0.71x0.61
inches
(17.96x15.39
mm).
Shared on
November 20th, 2016 00:04.
ESP8266 wifi slave as UART bridge for Butterfly (STM32L433 Development Board) and Dragonfly (STM32L476 Development Board).

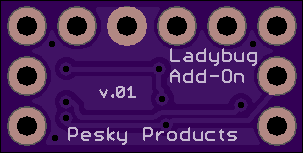

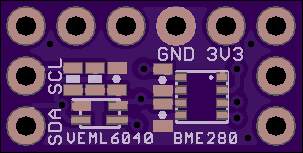

BME280.VEML6040.v01
by
PeskyProducts.
2
layer board of
0.61x0.31
inches
(15.39x7.75
mm).
Shared on
November 19th, 2016 23:59.
BME280 pressure/temperature/humidity sensor and VEML6040 RGBW ambient light sensor on a small add-on board for Ladybug (STM32L432 Development Board).
IRArray.v01a
by
PeskyProducts.
2
layer board of
0.56x0.41
inches
(14.10x10.29
mm).
Shared on
November 14th, 2016 01:41.
Breakout for Melexis MLX90621 16 x 4 IR imaging array with 120 x 25 degrees FoV and maximum temperature range up to 750 C. Corrected image sensor orientation.

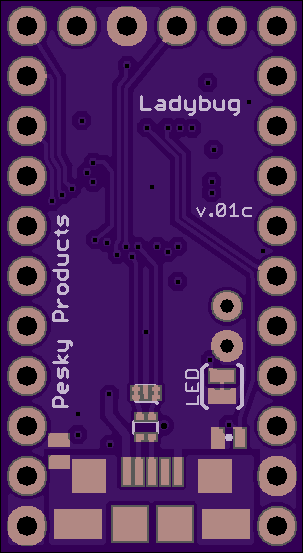

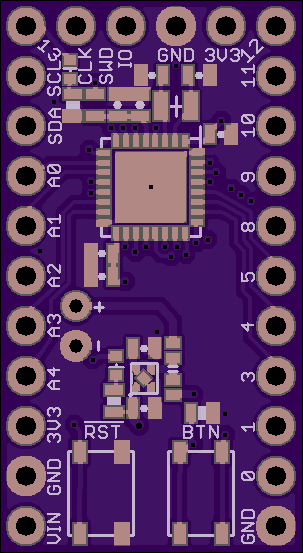

Ladybug.v01c
by
PeskyProducts.
4
layer board of
0.61x1.11
inches
(15.39x28.07
mm).
Shared on
November 8th, 2016 18:58.
Rotated STM32L432 QFN package for more rational routing.

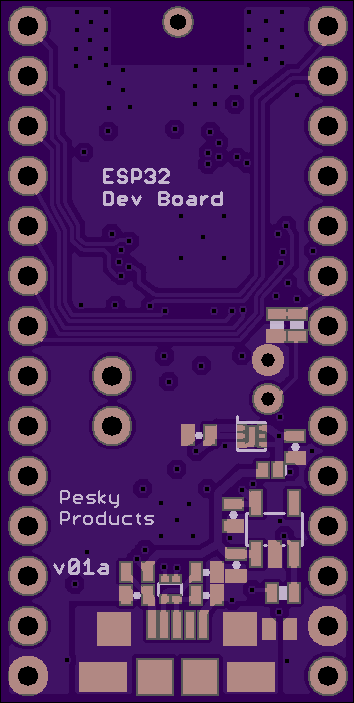

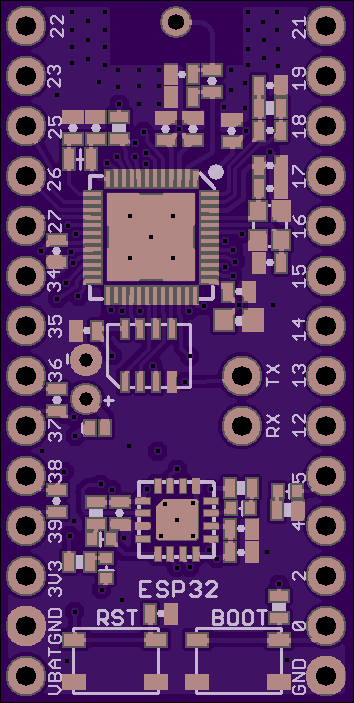

ESP32DevBoard.v01a
by
PeskyProducts.
4
layer board of
0.71x1.41
inches
(17.96x35.71
mm).
Shared on
November 3rd, 2016 21:44.
ESP32 development board with 4 MByte SPI flash, all GPIOs exposed, FT230XQ USB-to-Serial converter for easy programming with Arduino IDE, MIC5528 3V3, 500 mA LDO, MAX1555 LiPo battery charger, voltage divider on pin 34 ADC for battery monitor, blue led on GPIO 5. Added missing pullup on GPIO 0.
