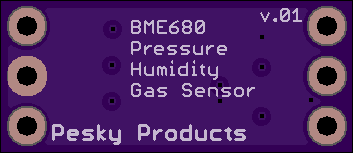

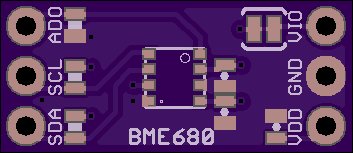

BME680Breakout.v01

by PeskyProducts.
Top
Bottom

4 layer board of 0.71x0.31 inches (17.91x7.75 mm).
Shared on September 14th, 2016 00:26.

Simple breakout for the Bosch BME680 altimeter, humidity and gas sensor hardwired for I2C.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

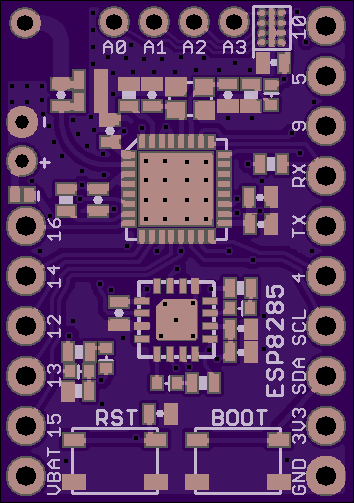

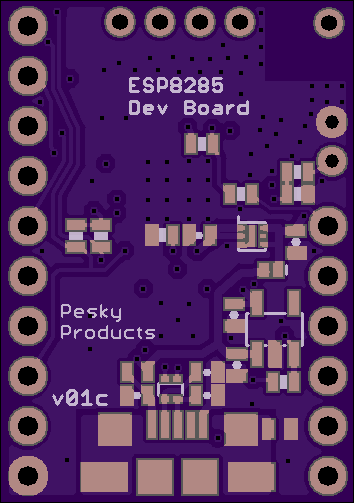

ESP8285DevBoard.v01c

by PeskyProducts.
Top
Bottom

4 layer board of 0.71x1.01 inches (17.96x25.55 mm).
Shared on September 12th, 2016 22:26.

Exposed pins 9 and 10 for a total of 13 GPIOs and added MAX11607 for 4 channels of 10-bit ADC.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

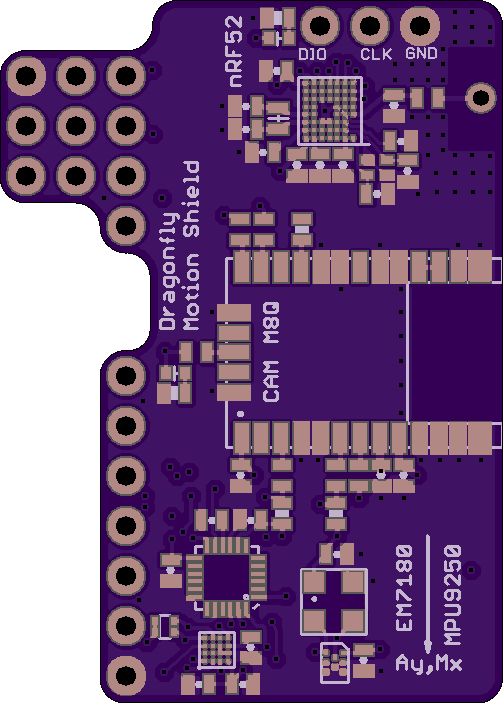

GPSAddOn.v01a

by PeskyProducts.
Top
Bottom

4 layer board of 1.01x1.41 inches (25.55x35.71 mm).
Shared on September 8th, 2016 22:07.

GPS and 3-D orientation sensor add-on for Dragonfly STM32L4 Dev Board. Added rechargeable backup battery, led for PPS, and bypass cap for VDDIO.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

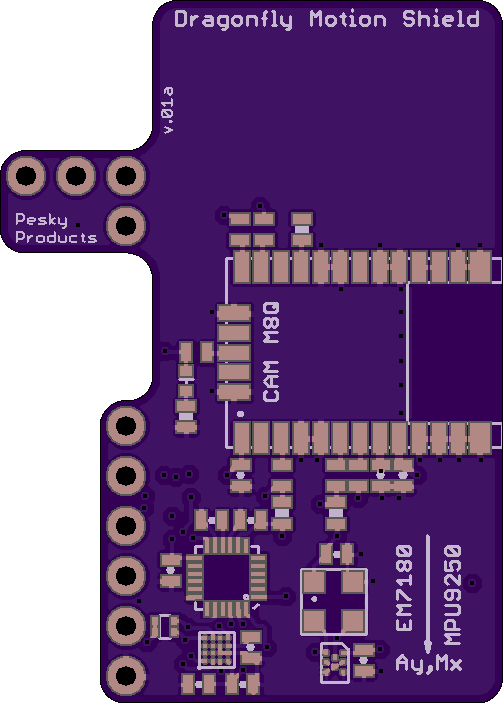

GPSAddOn.v01c

by PeskyProducts.
Top
Bottom

4 layer board of 1.01x1.41 inches (25.55x35.71 mm).
Shared on September 7th, 2016 01:31.

Motion shield for Dragonfly (STM32L4 Development Board) with CAM M8Q GPS module and EM7180-based IMU with SPI slave nRF52 for BLE. Backup battery is recharged with board 3V3 via solder jumper.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

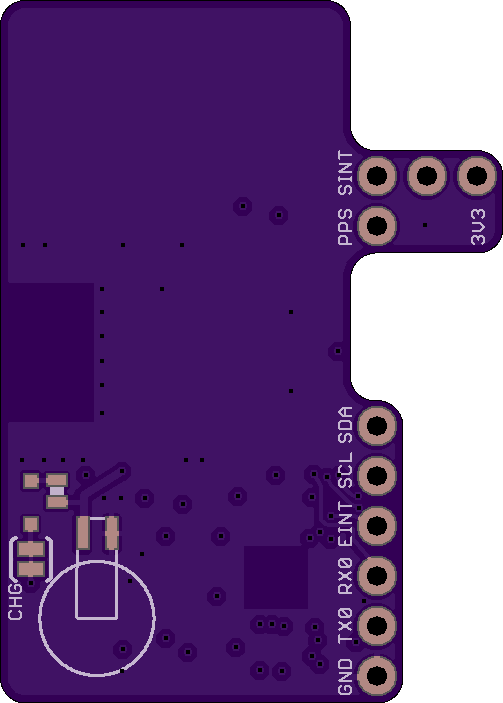

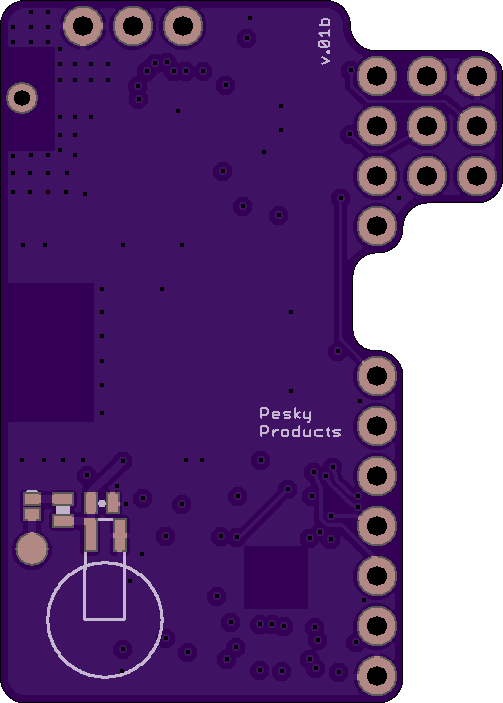

DragonflyGPSAddOn.v01b

by PeskyProducts.
Top
Bottom

4 layer board of 1.01x1.41 inches (25.55x35.71 mm).
Shared on August 26th, 2016 22:36.

Added backup battery and nRF52 for BLE data broadcast.

Order board. Download. Permalink. Embed order link.
