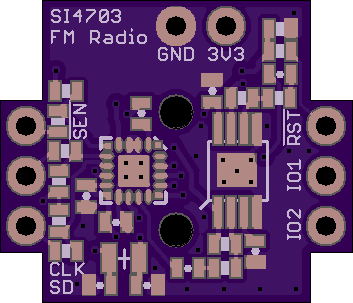

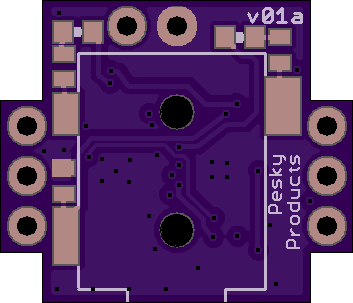

Si4703_AddOn.v01a
by
PeskyProducts.
4
layer board of
0.71x0.61
inches
(17.91x15.39
mm).
Shared on
June 12th, 2016 07:35.
I2C FM radio with 3.5 mm headphone jack. Replaced TPS6111A2 amplifier SOIC with MSOP Power Pad package, changed dimensions for better fit on Dragonfly.

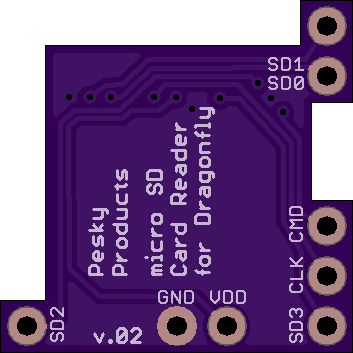

SDCardReader.v02
by
PeskyProducts.
2
layer board of
0.71x0.71
inches
(17.93x17.93
mm).
Shared on
June 10th, 2016 17:22.
MicroSD Card Reader add-on for Dragonfly using SDIO instead of SPI. Redesign for back card insertion.

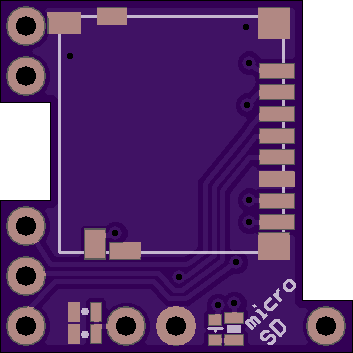

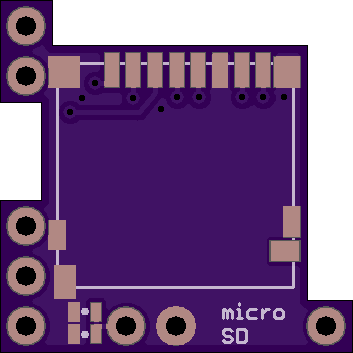

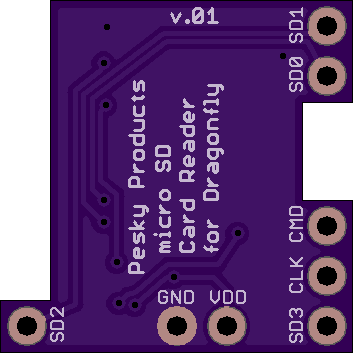

SDCardReader.v01
by
PeskyProducts.
2
layer board of
0.71x0.71
inches
(17.91x17.93
mm).
Shared on
June 10th, 2016 07:12.
MicroSD Card Reader add-on for Dragonfly using SDIO instead of SPI.

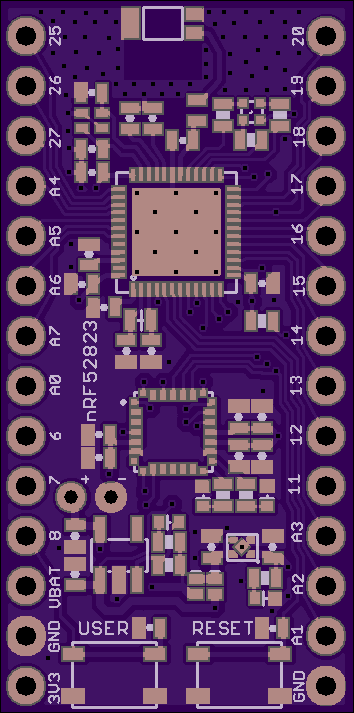

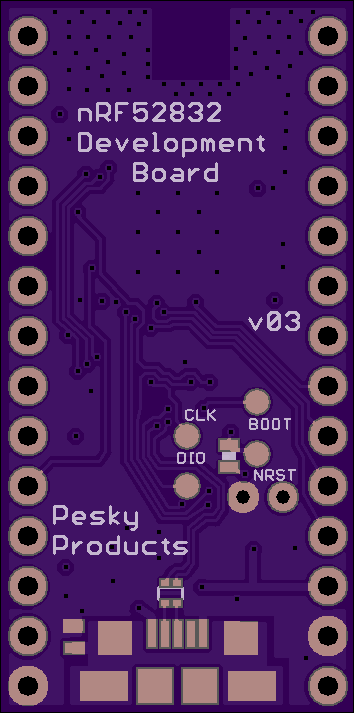

nRF52832DevBoard.v03
by
PeskyProducts.
4
layer board of
0.71x1.43
inches
(17.96x36.25
mm).
Shared on
June 6th, 2016 04:15.
Development board for nRF52832 BLE SoC. Using STM32F042 as CMSIS-DAP-compatible bootloader for programming and serial output via USB connector using Arduino IDE. Prototype for hardware and software testing.

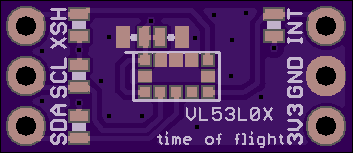

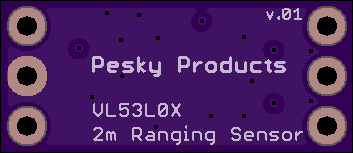

VL53L0X.v01
by
PeskyProducts.
4
layer board of
0.71x0.31
inches
(17.91x7.75
mm).
Shared on
June 2nd, 2016 08:07.
Latest time-of-flight proximity sensor from ST Microelectronics using 940 nm laser and capable of 2 M ranging with 10 mm accuracy. Small breakout for testing on a breadboard or mounting on a Teensy or Dragonfly.
