OSH Park
Profile for PeskyProducts
Shared projects
BMX055+MS5637.v01z
by
PeskyProducts.
2
layer board of
0.71x0.51
inches
(17.91x12.83
mm).
Shared on
August 4th, 2016 01:23.

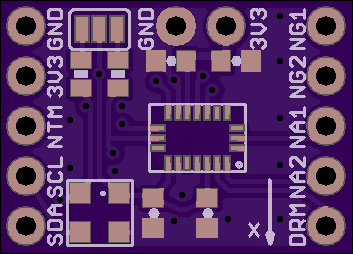

10 DoF BMX055 + MS5637 motion sensor breadboard breakout or add-on shield. Improved layout and added copper keep out under BMX055 and 4.7 uF transient capacitor. Improved 3V3 in and rearranged capacitors.
BMX055+MS5637.v01y
by
PeskyProducts.
2
layer board of
0.71x0.51
inches
(17.91x12.83
mm).
Shared on
August 4th, 2016 00:58.
10 DoF BMX055 + MS5637 motion sensor breadboard breakout or add-on shield. Improved layout and added copper keep out under BMX055 and 4.7 uF transient capacitor.
ESP8285.v02a
by
PeskyProducts.
4
layer board of
0.71x0.61
inches
(17.96x15.39
mm).
Shared on
July 30th, 2016 18:57.
ESP8285 environmental station with BME280 humidity, pressure, temperature sensor and VEML6075 UVAB light sensor. Using MIC5219 3.3 V, 500 mA LDO with 2.5 - 12 V VIN so board can be mounted on a 9 V battery. Improved copper pour and silk screen.
EM7180+MPU9250Nano.v03b
by
PeskyProducts.
4
layer board of
0.41x0.41
inches
(10.29x10.29
mm).
Shared on
July 27th, 2016 07:15.
Small wearable reference design for EM7180 managing the MPU9250 9 DoF IMU. Easy-to-solder 1-mm through holes on one side for power, I2C and interrupt attached in a thin wire bundle. Added ADO to change I2C address of EM7180 to gang more than one wearable nano board.
EM7180+MPU9250Nano.v03a
by
PeskyProducts.
4
layer board of
0.41x0.41
inches
(10.29x10.29
mm).
Shared on
July 27th, 2016 04:16.
Small wearable reference design for EM7180 managing the MPU9250 9 DoF IMU. Easy-to-solder 1-mm through holes on one side for power, I2C and interrupt attached in a thin wire bundle.
