Shared projects

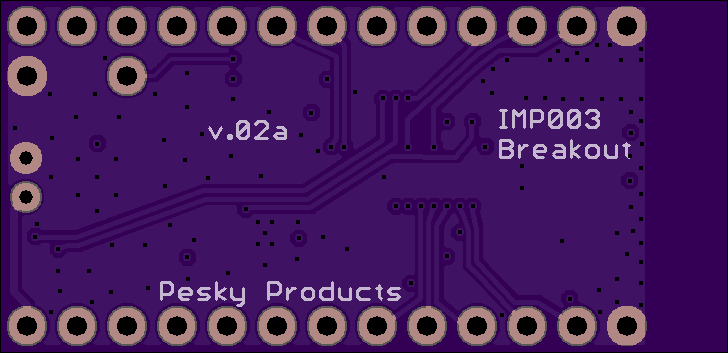

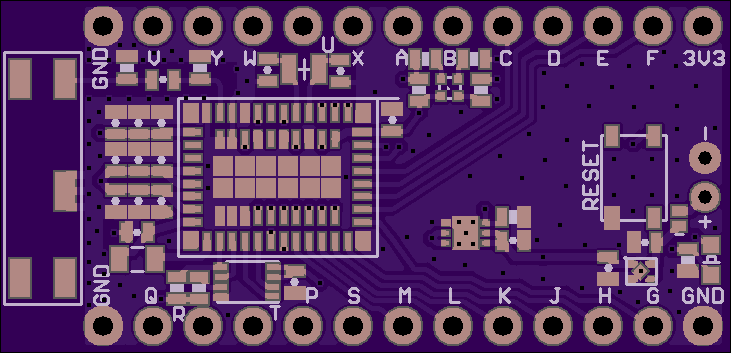

IMP003.v02a

by PeskyProducts.
Top
Bottom

4 layer board of 1.46x0.71 inches (36.96x17.91 mm).
Shared on April 27th, 2016 00:21.

Exposed VBAT and pin N; final production design.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

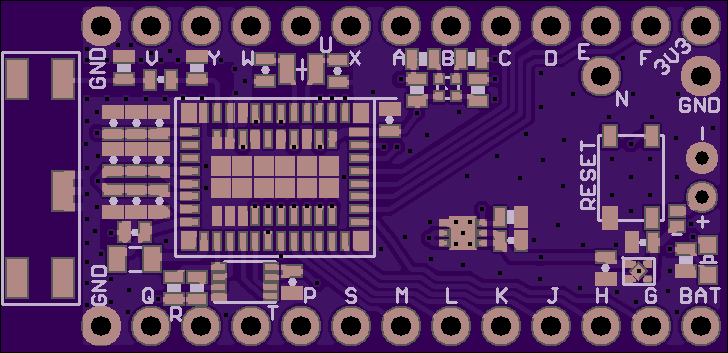

IMP003.v02

by PeskyProducts.
Top
Bottom

4 layer board of 1.46x0.71 inches (37.08x17.91 mm).
Shared on April 26th, 2016 03:42.

Significantly improved RF section, replaced pcb antenna with ceramic chip antenna, used 50 Ohm trace to antenna, and added 3V3 and GND at other board end.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

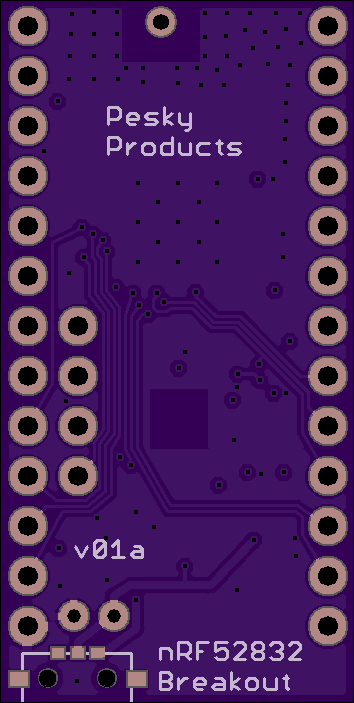

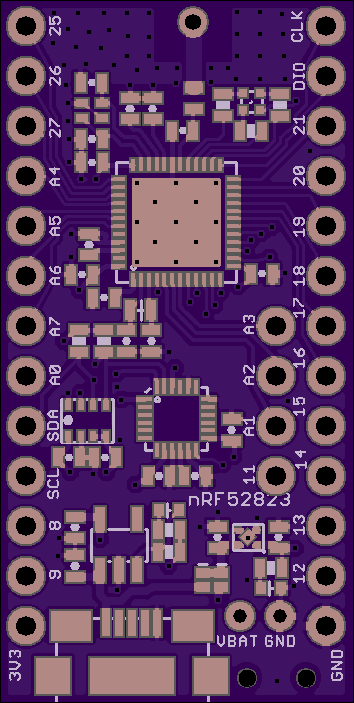

nRF52832_QFN48.v02a

by PeskyProducts.
Top
Bottom

4 layer board of 0.71x1.41 inches (17.96x35.71 mm).
Shared on April 25th, 2016 22:56.

Fixed trace error, fixed crystal footprint, reversed Vbat and GND so JST connector can more easily be used, exposed pin 11.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

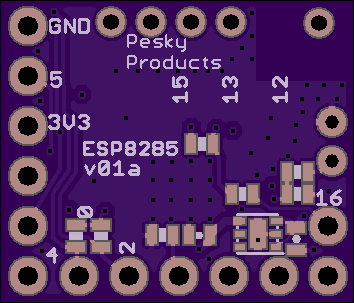

ESP8285Controller.v01a

by PeskyProducts.
Top
Bottom

4 layer board of 0.71x0.61 inches (17.96x15.39 mm).
Shared on April 25th, 2016 18:34.

Joystick controller using MAX11607 4-channel ADC for joystick input. Powered from a 9 V battery. Using WLCSP for MAX11607.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

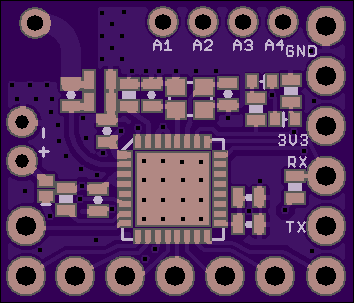

ESP8285Controller.v01

by PeskyProducts.
Top
Bottom

4 layer board of 0.71x0.61 inches (17.96x15.39 mm).
Shared on April 25th, 2016 18:31.

Joystick controller using MAX11607 4-channel ADC for joystick input. Powered from a 9 V battery

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
