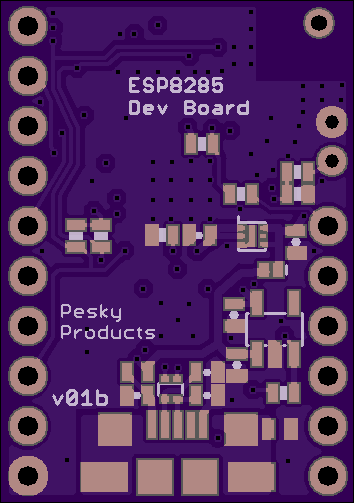

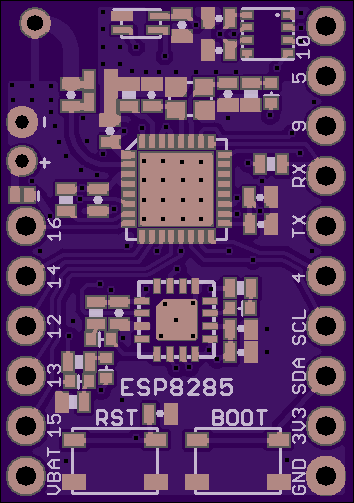

ESP8285DevBoard.v01b

by

4 layer board of 0.71x1.01 inches (17.96x25.55 mm).
Shared on July 26th, 2016 03:59.

Added GND plane connection to antenna for poor man’s dipole.

Copy this HTML into your page to embed a link to order this shared project

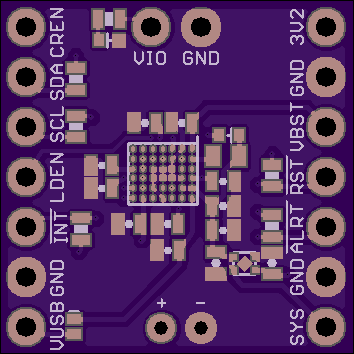

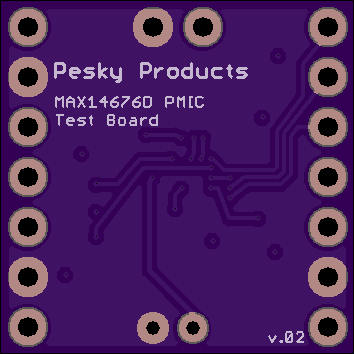

MAX14676D.v02

by

4 layer board of 0.71x0.71 inches (17.96x17.96 mm).
Shared on July 23rd, 2016 23:32.

Added on-board LDO as VIO. Increased pad size by 10%.

Copy this HTML into your page to embed a link to order this shared project

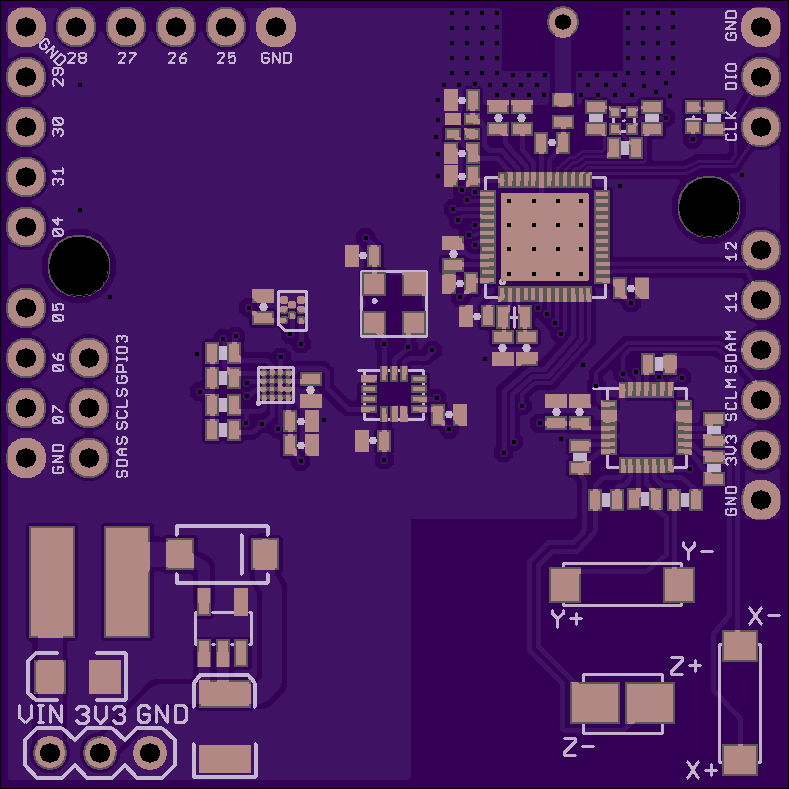

by

4 layer board of 1.58x1.58 inches (40.03x40.03 mm).
Shared on July 23rd, 2016 03:26.

Spelunker’s aid with nRF52832 for BLE, EM7180 as master to BMI160, MS5637, and RM3100 inertial sensors and 3V3 boost converter for AA battery power.

Copy this HTML into your page to embed a link to order this shared project

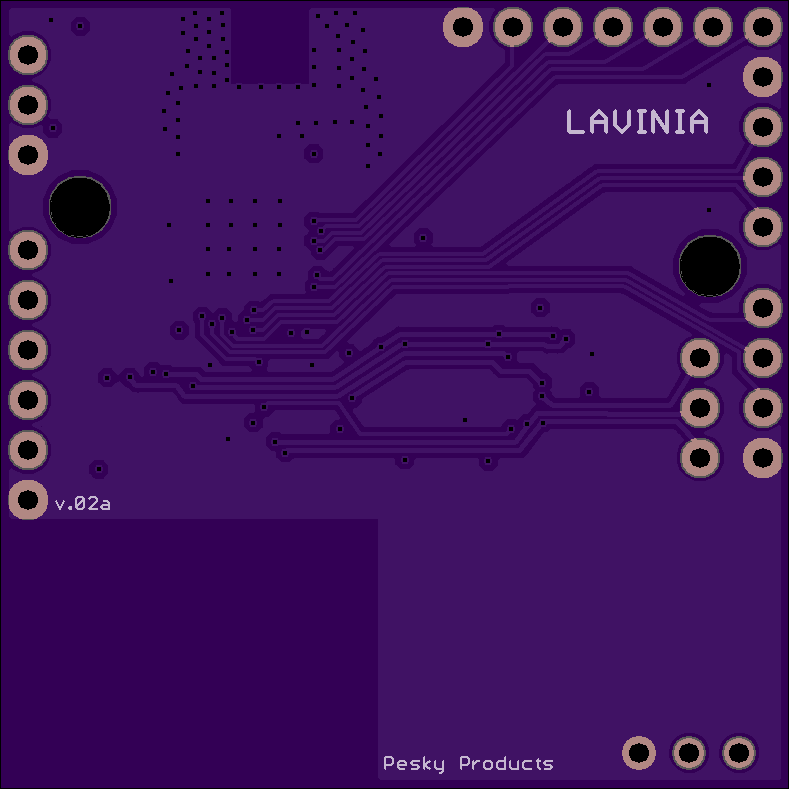

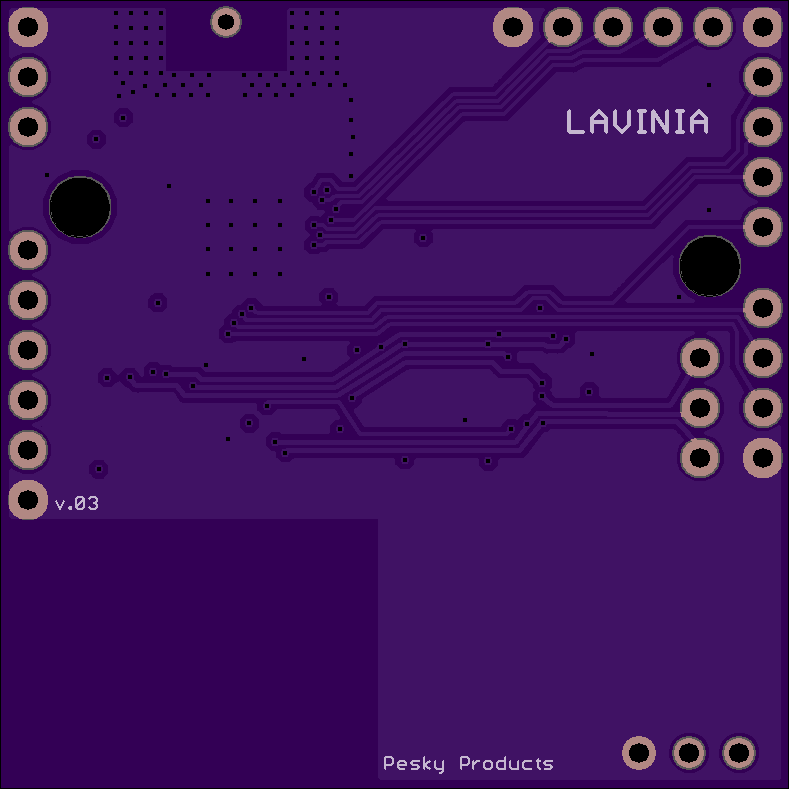

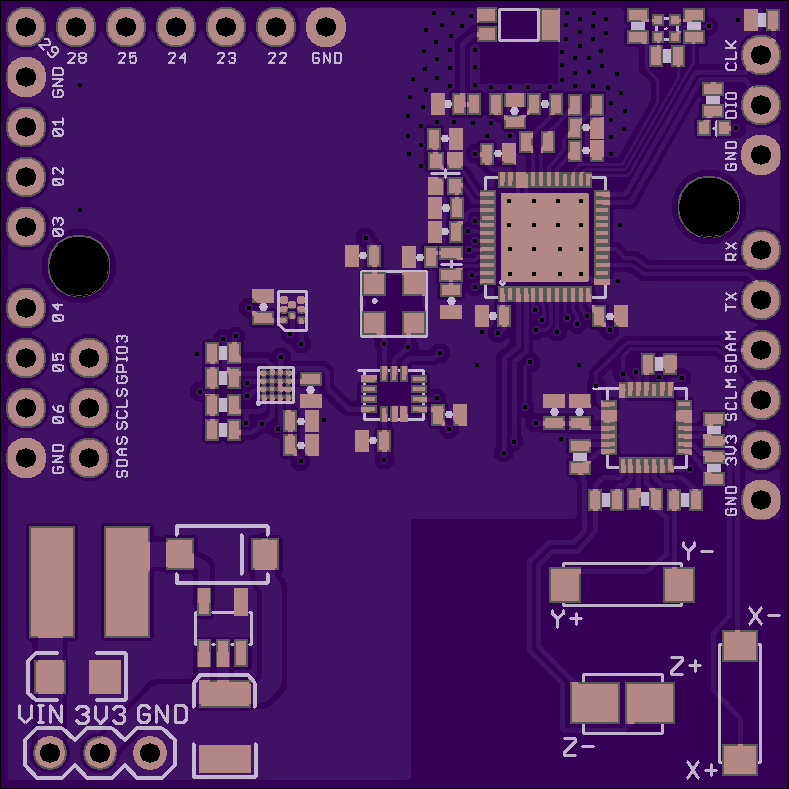

by

4 layer board of 1.58x1.58 inches (40.03x40.03 mm).
Shared on July 21st, 2016 19:40.

Added ABS05 32.768 kHz LSE and LX0404 rgb led for indication

Copy this HTML into your page to embed a link to order this shared project

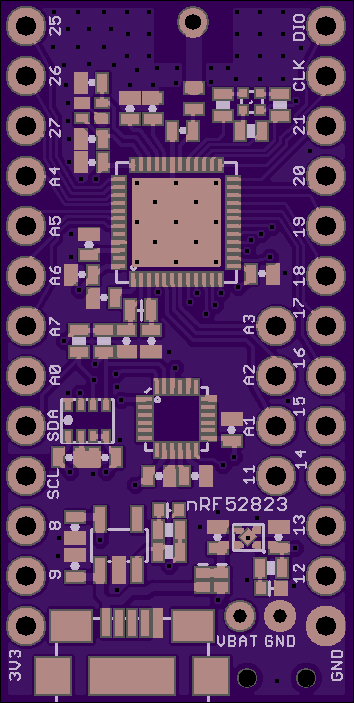

by

4 layer board of 0.71x1.41 inches (17.96x35.71 mm).
Shared on July 19th, 2016 04:35.

Production version

Copy this HTML into your page to embed a link to order this shared project
