Shared projects

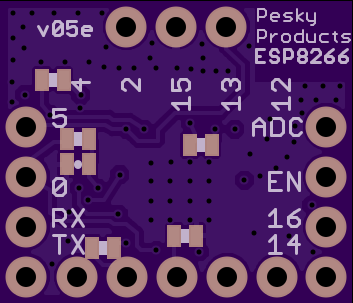

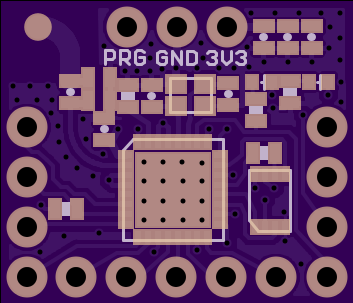

ESP8266.v05e

by PeskyProducts.
Top
Bottom

4 layer board of 0.71x0.61 inches (17.96x15.39 mm).
Shared on December 27th, 2015 22:50.

ESP8266 add-on board for Teensy 3.2 with all pins broken out. Teensy 3.2 program pin can be connected to ESP8266 GPIO 5 to affect OTA programming of the Teensy via UART transfer from the ESP8266 to the Teensy on Serial3. Simple solder pad for wire antenna is very effective.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

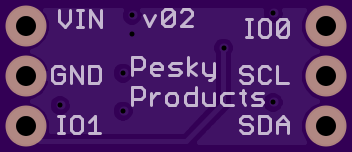

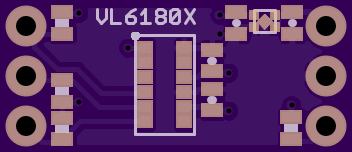

VL6180X.v02

by PeskyProducts.
Top
Bottom

4 layer board of 0.71x0.31 inches (17.91x7.75 mm).
Shared on December 13th, 2015 23:08.

Four-layer board, smaller components.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

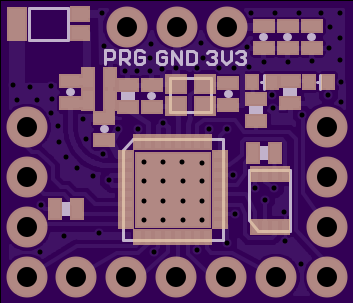

ESP8266.v05d

by PeskyProducts.
Top
Bottom

4 layer board of 0.71x0.61 inches (17.96x15.39 mm).
Shared on December 9th, 2015 08:27.

ESP8266 add-on for Teensy 3.2 for OTA Teensy programming.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

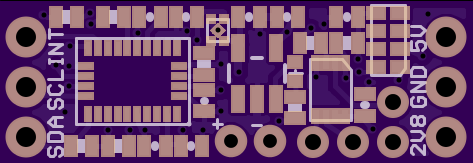

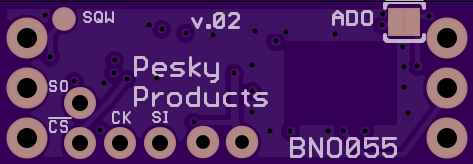

BNO055LiPoBoard.v02

by PeskyProducts.
Top
Bottom

4 layer board of 0.95x0.33 inches (24.03x8.28 mm).
Shared on December 4th, 2015 08:25.

BNO055 Motion sensor, MAX1555 LiPo battery charger, TLV70728 LDO voltage regulator, W25Q80BLUXIG 8 Mbit SPI Flash Memory, and a M41T62LCC RTC on a very small board.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

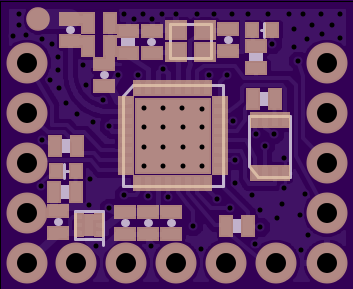

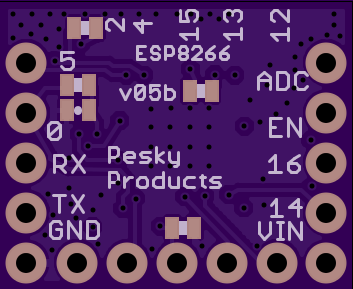

ESP8266.v05b

by PeskyProducts.
Top
Bottom

4 layer board of 0.71x0.58 inches (17.96x14.68 mm).
Shared on November 29th, 2015 00:02.

ESP8266 with all pins broken out, 8 Mbit SPI flash, 500 mA LDO. Boards works fine with a pcb antenna. Will it work just as well with a soldered wire for an antenna?

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
