OSH Park
Profile for PeskyProducts
Shared projects

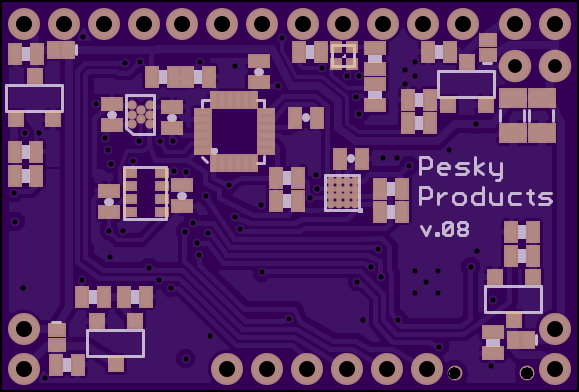

TeensyFlightController.v08
by
PeskyProducts.
4
layer board of
1.16x0.78
inches
(29.41x19.91
mm).
Shared on
February 14th, 2016 07:59.
Added solder jumpers for easier BLDC use, reduced board size.

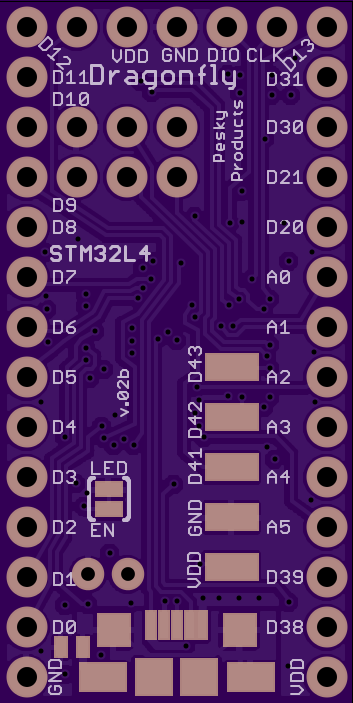

Dragonfly.v02b
by
PeskyProducts.
4
layer board of
0.71x1.41
inches
(17.93x35.71
mm).
Shared on
February 6th, 2016 19:47.
Swapped INT and CS pins, fixed pin labelling.

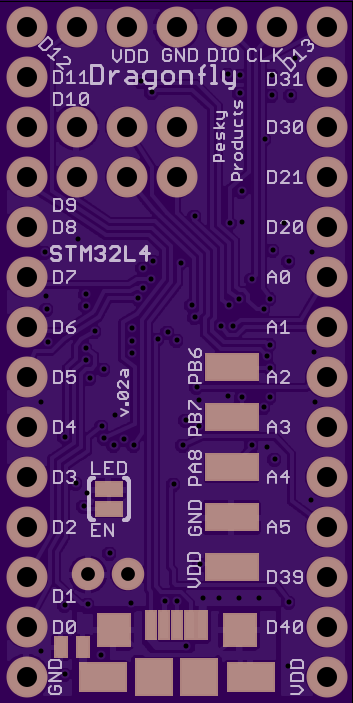

Dragonfly.v02a
by
PeskyProducts.
4
layer board of
0.71x1.41
inches
(17.93x35.71
mm).
Shared on
February 6th, 2016 04:45.
Corrected trace error, added current limiting resistor on Boot button.
MPU9250+BME280.v01a
by
PeskyProducts.
4
layer board of
0.48x0.25
inches
(12.22x6.35
mm).
Shared on
February 4th, 2016 06:48.
MPU9250 IMU and BME280 pressure, humidity, temperature sensor for mounting on the back smd pads of Dragonfly.v02.
Dragonfly.v02
by
PeskyProducts.
4
layer board of
0.71x1.41
inches
(17.93x35.71
mm).
Shared on
February 2nd, 2016 01:47.
Second iteration of STM32L4 breakout. Replaced TLV70733 with NCP161 3.3 V LDO with 500 mA current and 18 microA Iq, replace I2C EEPROM with 32 Mbit SPI NOR flash on fast QSPI port, added PAS3225 3.3V 0.11 F supercap on VBAT for RTC backup, put SMD pads on back for auxiliary serial port, reversed battery terminal polarity so LiPo JST connector can be soldered to the board, and added power-on led disable via back solder jumper for low power applications.
