Shared projects

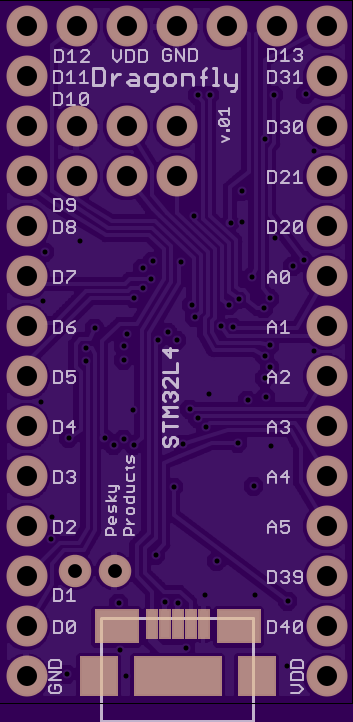

Dragonfly.v01

by PeskyProducts.
Top
Bottom

4 layer board of 0.71x1.41 inches (17.93x35.71 mm).
Shared on January 20th, 2016 02:55.

STM32L4 microcontroller programmable using Arduino IDE.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

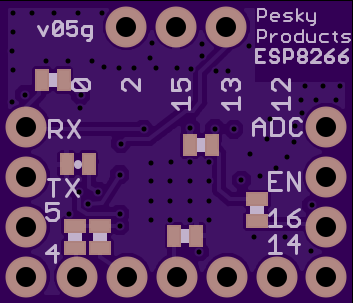

ESP8266.v05g

by PeskyProducts.
Top
Bottom

4 layer board of 0.71x0.61 inches (17.96x15.39 mm).
Shared on January 16th, 2016 19:10.

Added zero Ohm jumper to connect EXT_RST and GPIO16 to enable wake from deep sleep. Put GPIO 0 and 2 on back row for easier access when mounted on a Teensy 3.2.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

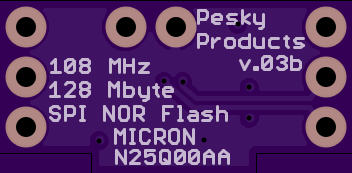

SPIFlashBoard.v03b

by PeskyProducts.
Top
Bottom

4 layer board of 0.71x0.35 inches (17.91x8.79 mm).
Shared on January 8th, 2016 19:39.

Teensy add-on for N25Q00AA 1 Gbit SPI NOR flash memory.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

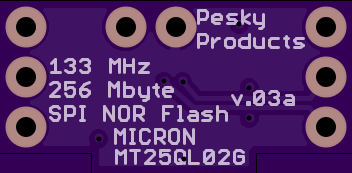

SPIFlashBoard.v03a

by PeskyProducts.
Top
Bottom

4 layer board of 0.71x0.35 inches (17.91x8.79 mm).
Shared on January 8th, 2016 07:18.

Teensy add-on board for MT25QL02GCBA8E12-0SIT 2 Gbit SPI NOR flash memory chip.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

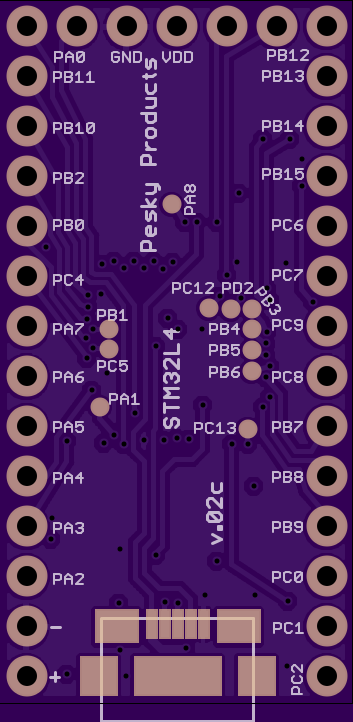

STM32L4LQFP64.v02c

by PeskyProducts.
Top
Bottom

4 layer board of 0.71x1.41 inches (17.93x35.71 mm).
Shared on January 7th, 2016 04:40.

Connected VUSB to PA9.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
