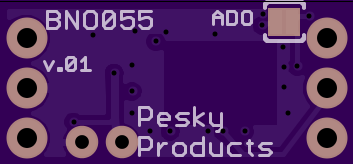

BNO055LiPoBoard.v01
by
PeskyProducts.
4
layer board of
0.71x0.33
inches
(17.93x8.28
mm).
Shared on
November 28th, 2015 22:17.
BNO055 motion sensor, MAX1555 LiPo Battery Charger, and TLV70728 LDO regulator in a very small package.

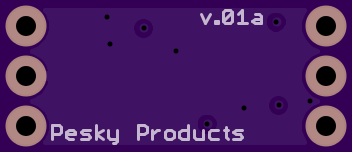

P12347-01CT.v01a
by
PeskyProducts.
4
layer board of
0.71x0.31
inches
(17.91x7.75
mm).
Shared on
November 28th, 2015 05:04.
Breakout board for Hamamatsu’s P12347-01CT color/proximity sensor.

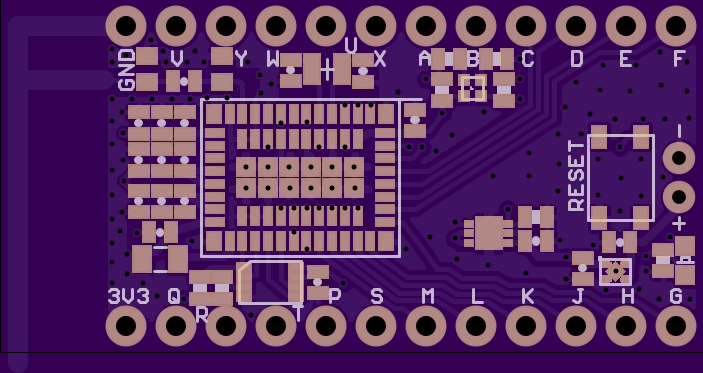

IMP003.v01b
by
PeskyProducts.
4
layer board of
1.41x0.71
inches
(35.71x17.91
mm).
Shared on
November 14th, 2015 09:29.
Teensy-sized breakout board for Murata’s IMP003 module with combination ST32M405F processor and Broadcom 43362 wifi engine following the reference design at Electronic Imp. Improved layout, replaced 3V3, 500 mA MIC5528 LDO with 3V3, 450mA NCP161 LDO voltage regulator with only 18 microAmps quiescent current.

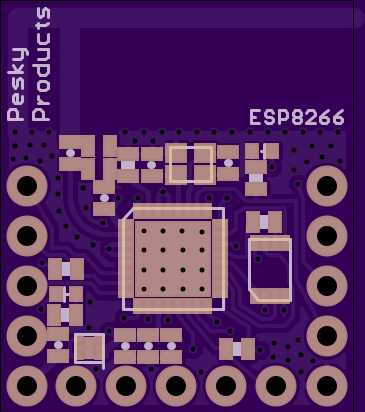

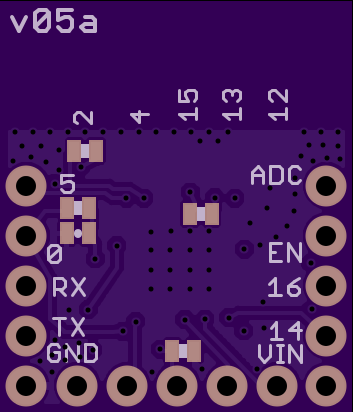

ESP8266.v05a
by
PeskyProducts.
4
layer board of
0.71x0.82
inches
(17.96x20.93
mm).
Shared on
November 11th, 2015 09:21.
ESP8266 add-on to give Teensy-3.1-based projects wifi access and an extra SPI port. Using 3V3, 500 mA MIC5528 LDO and 4 Mbit Macronix SPI flash memory.

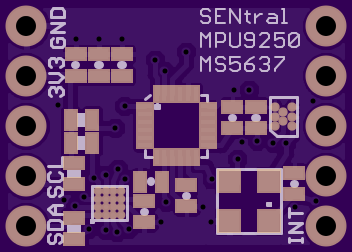

SENtralReferenceDesign.v03
by
PeskyProducts.
4
layer board of
0.71x0.51
inches
(17.91x12.83
mm).
Shared on
November 10th, 2015 03:13.
Reference design for the EM7180 sensor hub and MPU9250 9 DoF motion sensor and MS5637 pressure sensor. SENtral manages the sensors providing quaternions, Euler angles, linear acceleration, gravity and drift-compensated altitude at 400 Hz update rates. Master I2C bus and SENtral GPIOs broken out for addition of external sensors.
