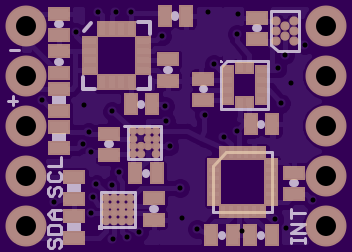

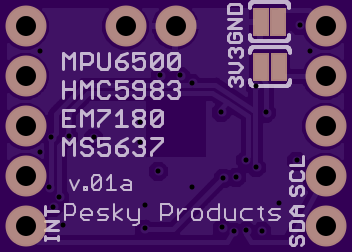

EM7180MPU6500HMC5983MS5637.v01a
by
PeskyProducts.
4
layer board of
0.71x0.51
inches
(17.91x12.83
mm).
Shared on
October 11th, 2015 19:41.
Sensor fusion test board to gauge perfromance of the HMC5983 magnetometer for improved heading accuray. Improved layout.

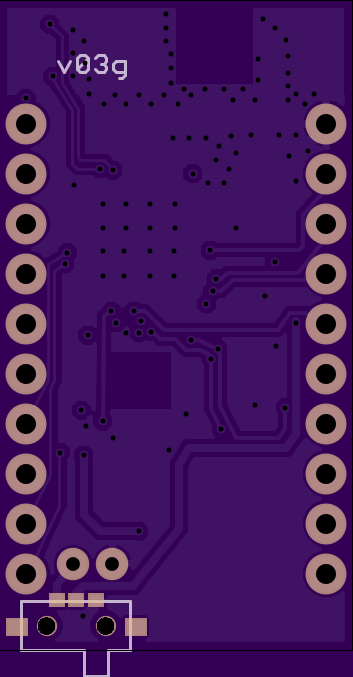

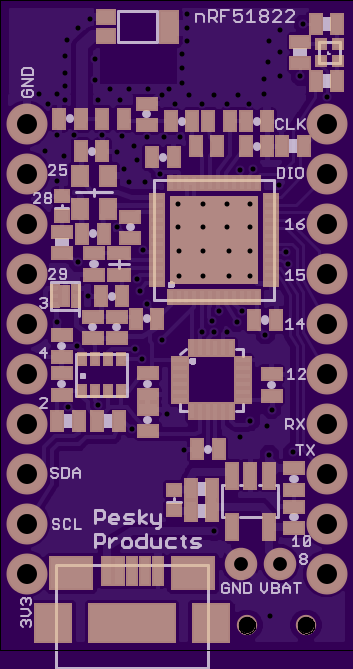

nRF51822.v03g
by
PeskyProducts.
4
layer board of
0.71x1.30
inches
(17.96x33.07
mm).
Shared on
October 5th, 2015 03:40.
Breakout board for nRF51822 SoC with Cortex M0 processor and Bluetooth LE 2.4 GHz radio. Also on board are Bosch’s BMP280 pressure sensor and Invensense’s MPU9250 9 DoF motion sensor, and MAX1555 LiPo battery charger with USB (charging only). Replaced TLV70733 200 mA 3V3 regulator with MIC5528 500 mA 3V3 regulator. LED indication for 3V3 on, battery charging, and GPIO-controlled rgb LED. Side through-holes for I2C, UART, SWD program port and 12 GPIOs.

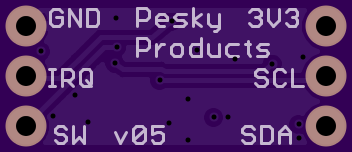

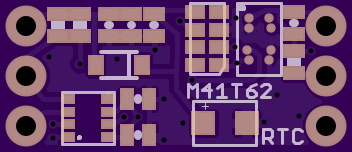

EnvironmentalDataLogger.v05
by
PeskyProducts.
4
layer board of
0.71x0.31
inches
(17.91x7.75
mm).
Shared on
October 3rd, 2015 07:15.
ST Microelectronic’s M41T62 ultra-low-power real time clock coupled with Bosch’s BME280 pressure, humidity, and temperature sensor and ST’s M2402DRC 2Mbit EEPROM in an appallingly small add-on board for Teensy 3.1. Power is supplied via digital write to general GPIO pins since the total power requirement never exceeds 2 mA. Communication is via I2C and there are 4K7 pullup resistors on board. The 512 Hz square-wave output allows the Teensy 3.1 microcontroller to make periodic calibration updates to the RTC calibration register so the clock is continuously compensated for maximum (~2 ppm or 1 minute a year) accuracy. The Taiyo Yuden PAS3225 2.6V 14 mF super capacitor and 1N4148 diode provide power to the RTC time keeper even when disconnected from the microcontroller. The PAS3225 5 microAhour super cap can run the RTC (which needs ~330 nA at 2.6 V) for about 18 hours. The board is now a tiny weather logging station: pressure, temperature, and humidity can be logged once per minute for 15 days! Went back to standard 1N4148 diode.

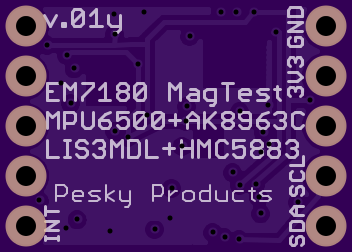

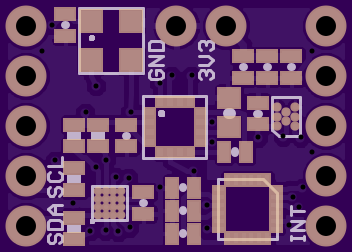

MagneticSensorTestBoard.v01y
by
PeskyProducts.
4
layer board of
0.71x0.51
inches
(17.91x12.83
mm).
Shared on
October 3rd, 2015 05:19.
Breakout board to test magnetometer performance. Magnetometers include Honeywell’s HMC5883, Asahi Kasei’s AK8963C, and ST Microelectronics' LIS3MDL. Board allows comparative test of basic performance and test of effects of different mag data on EM7180 sensor fusion using the MPU6500 accel/gyro. Fixed LIS3MDL package error.

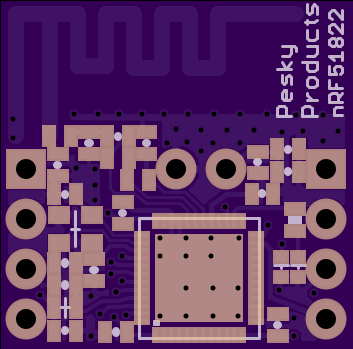

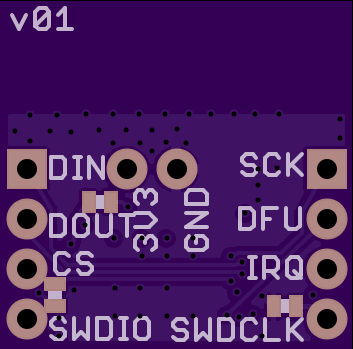

nRF51822TeensyAddOn.v01
by
PeskyProducts.
4
layer board of
0.71x0.70
inches
(17.96x17.75
mm).
Shared on
September 27th, 2015 02:34.
Small board for direct mounting on the teensy 3.x with the nRF51822 communicating with the teensy via hardware SPI like Adafruit’s SPI Friend. Should allow use of Adafruit’s software to create Teensy-based bluetooth peripheral nodes.
