M41T62RTC+BME280+M24512DFC.v04
by
PeskyProducts.
2
layer board of
0.71x0.31
inches
(17.91x7.75
mm).
Shared on
June 17th, 2015 06:13.
Reattempt
TPS61088.v01
by
PeskyProducts.
2
layer board of
0.97x0.56
inches
(24.66x14.10
mm).
Shared on
June 12th, 2015 04:43.

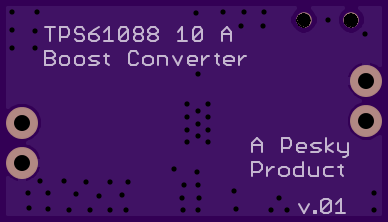

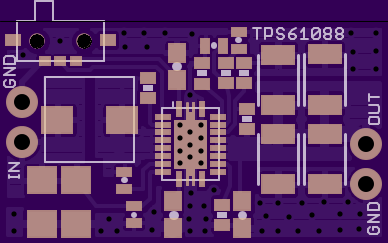

TI’s TPS61088 boost converter here configured to up-convert a one-cell LiPo battery to 4.8 V at up to 10 A. Changing a single resistor changes the output voltage from 4.8 V (300 K) to 9.6 V (600 K). On-off switch for easy power down. Intended to attach directly to a LiPo battery to allow higher motor drive voltages.
nRF51822QFN48.v01
by
PeskyProducts.
4
layer board of
0.71x0.90
inches
(17.96x22.91
mm).
Shared on
June 8th, 2015 20:29.

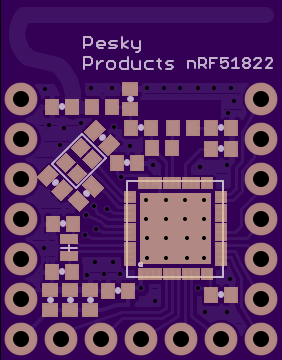

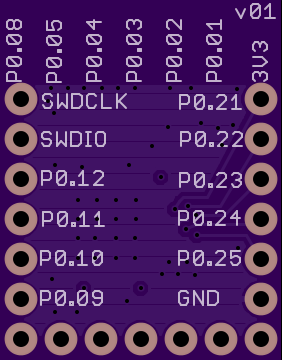

Prototype nRF51822 board for testing sensor interfaces and BT programming.
MPU9250MicroTeensyShield.v06
by
PeskyProducts.
4
layer board of
0.61x0.30
inches
(15.39x7.62
mm).
Shared on
June 6th, 2015 07:39.
Micro add-on board for the MPU9250 9 DoF motion sensor and MS5637 altimeter to be mounted on the smd pads on the back of the Teensy 3.1. First attempt at a four layer board.
ElectronicOwl.v02
by
PeskyProducts.
2
layer board of
0.56x0.68
inches
(14.22x17.27
mm).
Shared on
June 5th, 2015 08:28.
Simple circuit using LCM555 timer for clock to operate SN54LV163A binary 1 - 7 counter which drives FFB3904 dual mosfets that control two rgb LEDs which, lastly, cause the owl’s eyes to glow with continuously varying color. Intended as a wearable pendant for little girls and daring men. Added SMD switch for power on/off. Added rechargeable 3V, 3.4 mAH coin cell Li-ion battery and charging circuit. Removed through-hole JST connector. Added top hole for keychain.
