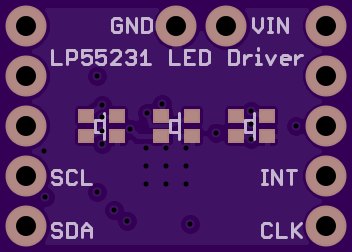

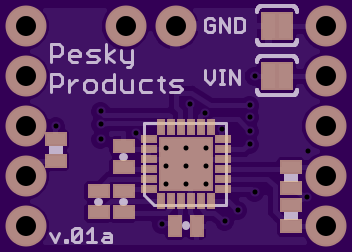

LP55231LedDriverAddOn.v01a
by
PeskyProducts.
4
layer board of
0.71x0.51
inches
(17.91x12.83
mm).
Shared on
September 25th, 2015 07:27.
Programmable LP55231 led driver with three common-cathode Kingbright rgb leds in a standard Teensy 3.1 add-on board. Board can be mounted onto a teensy or used on a breadboard, and can be operated from the Teensy host or as a stand-alone, LiPo-battery-operated device. Vin is between 2.7 and 5.5 V. Switched red leds to D7-9 since driven directly by VIN as per data sheet.

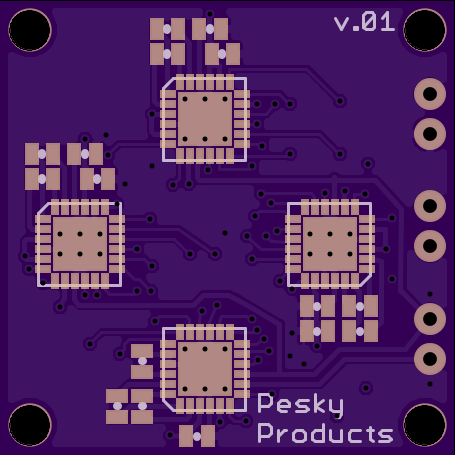

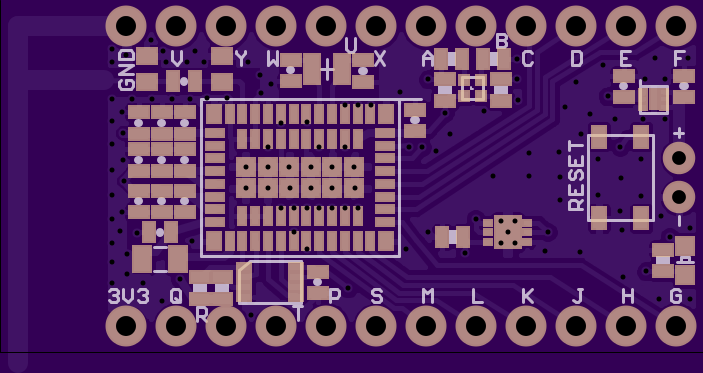

MX3AClone.v05
by
PeskyProducts.
4
layer board of
0.40x0.40
inches
(10.16x10.16
mm).
Shared on
September 24th, 2015 07:12.
Variant of MX-3A sensorless BLDC ESC using the C8051F850 instead of the larger C8051 F330 and using TI’s low on-resistance (8.8 mOhm for N-type, 16.2 mOhm for P-type) NexFets instead of the usual SOT-23 packages. Improved layout.

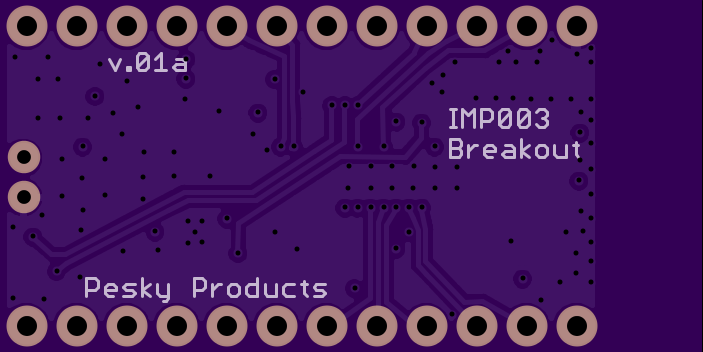

IMP003.v01a
by
PeskyProducts.
4
layer board of
1.41x0.71
inches
(35.71x17.91
mm).
Shared on
September 22nd, 2015 04:37.
Teensy-sized breakout board for Murata’s IMP003 module with combination ST32M4F processor and Broadcom Wifi following the reference design at Electronic Imp. Improved layout, fixed SPI flash trace error, moved photodetector for side mounting.

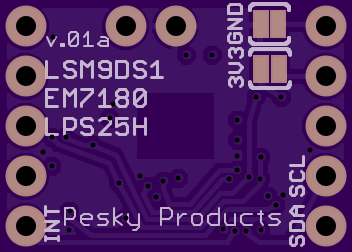

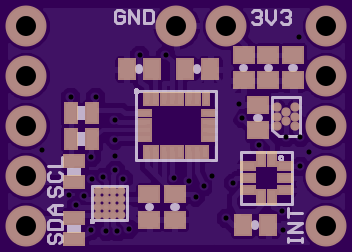

EM7180+LSM9DS1+LPS25H.v01a
by
PeskyProducts.
4
layer board of
0.71x0.51
inches
(17.91x12.83
mm).
Shared on
September 17th, 2015 06:36.
Breakout board for LSM9DS1 9 DoF motion sensor plus LPS25H altimeter with the EM7180 SENtral sensor fusion hub to test inclusion of pressure data in the 9 DoF sensor fusion result. Replaced INT_M with DRDY_M.

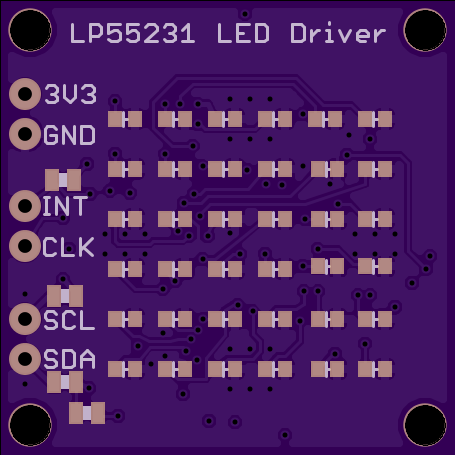

LedSquare.v01
by
PeskyProducts.
4
layer board of
0.91x0.91
inches
(23.11x23.11
mm).
Shared on
September 13th, 2015 19:24.
Test board for LP55231 Programmable LED Driver each driving 9 leds.
