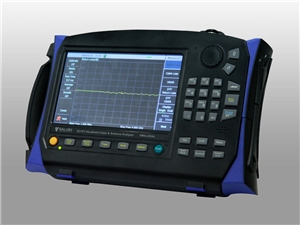

SK-4500-TC Image

SK-4500-TC

Antenna Analyzer by Bird (5 more products)
Download Datasheet Request Quote

Note : Your request will be directed to Bird.

The SiteHawk SK-4500-TC is an easy to operate and field ready antenna and cable analyzer that operates from 1 to 4500 MHz. The analyzer can be used to conduct FDR (Frequency Domain Reflectometry) measurements, Fault location or DTF (Distance to Fault Measurements) and Cable Loss measurements over a given frequency range. The analyzer has a USB communication port for connection to storage devices and battery charging.

It can be used with Worldwide Cellular and PCS/DCS systems; supporting measurement of CDMA, GSM, and LTE Protocols. Other applications include 3G, Broadcast, Government, Tactical Military, Microwave, Paging, Public Safety, Trunking, WLAN, and TETRA

Product Specifications

    Product Details

    • Part Number :
      SK-4500-TC
    • Manufacturer :
      Bird
    • Description :
      SiteHawk Antenna and Cable Analyzer from 1 to 4500 MHz

    General Parameters

    • Cable Loss :
      0 dB to 30 dB
    • Connection Supported :
      USB Type-C, USB 3.0
    • Connectors :
      N Type - Female
    • Equipment Type :
      Handheld Analyzer
    • Features :
      Cable Loss, Distance-to-fault measurement, FDR, Return Loss, VSWR
    • Frequency Accuracy :
      ±2.5×10-6
    • Impedance :
      50 Ohms
    • Return Loss :
      0 dB to -60 dB
    • Return Loss Resolution :
      0.01 dB
    • SWR :
      1.0 to 65.0
    • Data Points :
      51 to 3201
    • Frequency :
      1 to 4500 MHz
    • Frequency Resolution :
      1kHz
    • Measurement Speed :
      1ms / data point
    • Output Power :
      10 dBm
