APT3-05400590-1010-LS-D4-FAC

RF Amplifier by AmpliTech | Visit website (664 more products)

Note : Your request will be directed to AmpliTech.

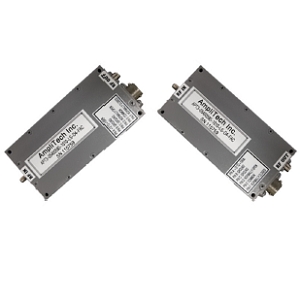

The APT3-05400590-1010-LS-D4-FAC is a Low Noise amplifier that operates from 5.4 to 5.9 GHz. It provides a P1dB of 12 dBm and a gain of 28 dB with a noise figure of less than 0.9 dB. An internal limiter at the input provides protection of up to 2W CW of RF input power over the full band. There is provision for a Fault Alarm signal via one of the pins on the external MS3112E8-4P connector (used for power) that is triggered by a pre-defined change in current draw. It is available in a module with SMA female connectors and is ideal for receiver front end, radar, Satcom and test equipment applications.

Product Specifications

    Product Details

    • Part Number :
      APT3-05400590-1010-LS-D4-FAC
    • Manufacturer :
      AmpliTech
    • Description :
      C-Band Super Low Noise Amplifier with Fault Detection

    General Parameters

    • Type :
      Low Noise Amplifier
    • Configuration :
      Module with Connector
    • Application :
      Radio System, Telemetry
    • Industry Application :
      SATCOM, Radar, Test & Measurement
    • Frequency :
      5400 to 5900 MHz
    • Gain :
      28 to 30 dB
    • Gain Flatness :
      0.3 to 0.5 dB
    • Noise Figure :
      0.7 to 1 dB
    • P1dB :
      10 to 12 dBm
    • P1dB :
      10 to 15 mW
    • Input Power :
      2 W
    • Pulsed/CW :
      CW
    • VSWR :
      1.25:1, 1.40:1
    • Supply Voltage :
      5 to 15 V
    • Operating Temperature :
      -54 to 85 Degrees C
    • Storage Temperature :
      -54 to 115 Degrees C
