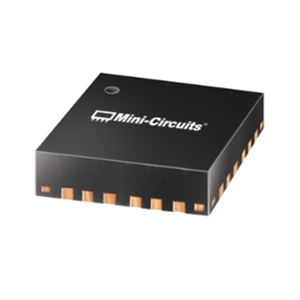

MDB-24H+ Image

MDB-24H+

RF Mixer by Mini Circuits (507 more products)
Download Datasheet Request Quote

Note : Your request will be directed to Mini Circuits.

The MDB-24H+ is a frequency mixer with an RF/LO frequency from 5 GHz to 21.5 GHz and IF frequency from 0 to 5 GHz. The mixer is fabricated using InGaP HBT technology with integrated LO and RF Baluns. The mixer measures 4 x 4 x 1 mm and is available in a surface mount package. It can be used for SATCOM, Commercial and military radars, WiFi and ISM band applications.

Product Specifications

    Product Details

    • Part Number :
      MDB-24H+
    • Manufacturer :
      Mini Circuits
    • Description :
      5 GHz to 21 GHz RF Mixer with an Integrated Balun

    General Parameters

    • Type :
      Double Balanced Mixer
    • Industry Application :
      SATCOM, Military, Radar
    • Application Type :
      VSAT, WiFi, ISM Band
    • RF Frequency :
      5 to 21.5 GHz
    • LO Frequency :
      DC to 5 GHz
    • IF Frequency :
      5 to 21.5 GHz
    • Conversion Loss :
      6.9 to 11.7 dB
    • Noise Figure :
      6.9 dB
    • LO Drive - Power :
      15 dBm
    • P1dB :
      10 dBm (Input)
    • IP3 :
      14 to 23 dB
    • LO/RF Isolation :
      21 to 35 dB
    • LO/IF Isolation :
      28 to 39 dB
    • Package Type :
      Surface Mount
    • Dimension :
      4 x 4 x 1 mm
    • Operating Temperature :
      -40 to 85 Degrees C
    • Storage Temperature :
      -65 to 150 Degrees C
    • Grade :
      Military, Space, Commercial
