Antenna Alignment Tool with Android Tablet

The AAT30C from Sunsight is an Antenna Alignment Tool with an accuracy of 0.3 degrees RMS in azimuth and 0.1 degrees in Tilt and Roll. This Alignment Tool is the ideal product for traditional RF panel antenna alignment. It measures antenna alignment in azimuth, latitude/longitude, tilt, roll (plumb), MSL height, and AGL height (with laser rangefinder option). Click here to view specs.

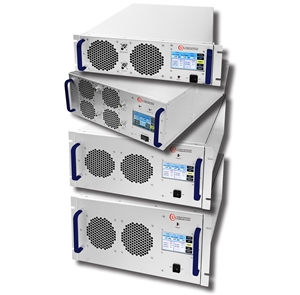

800 Watt Solid State Power Amplifier from 1 to 6 GHz

The AMP2030-800 is a solid state GaN power amplifier that operates from 1 to 6 GHz. It provides a saturated output power of 800 watts with a gain of over 59 dB. This rack mount amplifier can be controlled via the front panel on the amplifier system. It is available in a rack mount unit that measures 24 x 56 x 36 inches with N & SC-type female connectors and weighs 200 kg. This Class AB amplifier has built-in protection circuits, an instantaneous ultra-wide bandwidth and is suitable for all single channel modulation standards. Click here to view specs.

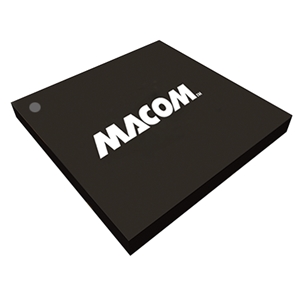

4 W Ka-Band Power Amplifier from 27.5 to 30 GHz

The MAAP-011250 from MACOM is a Ka-band power amplifier that operates from 27.5 to 30 GHz. The amplifier provides an output power of 4 watts. It is available in a 5 x 5 mm QFN package and is ideally suited for MILCOM applications. Click here to view specs.

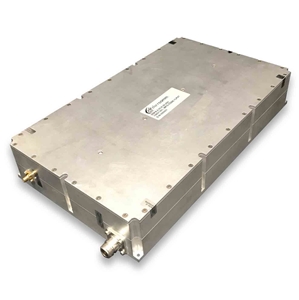

300 W Solid State GaN Power Amplifier from 2 to 6 GHz

The SSPA 2.0-6.0-250 is a solid state GaN power amplifier that operates from 2 to 6 GHz. It provides a nominal output power of 250 watts and a saturated power of 300 watts with a small signal gain of 70 dB. This broadband GaN SSPA is designed to be employed in systems where high power and medium efficiency and linearity are required across a large bandwidth. It has an input and output VSWR specified at 2.0:1 maximum and a discrete blanking control line is included with a 10 uSec maximum turn on/off time. The amplifier is available in a module that measures 8.0" X 13.5" X 2.37" and weighs 15 lbs. It is designed and tested to withstand MIL-STD-810 shock and vibration requirements. Click here to view specs.

500 W LDMOS Transistor for RF Energy Applications

The BLC2425M10LS500P from Ampleon is a 500 Watt LDMOS power amplifier transistor for RF energy applications that operates from 2400 to 2500 MHz. It provides up to 500 watts of power with an efficiency of up to 67%. This rugged device is capable of withstanding a load mismatch of up to VSWR 20:1. It has integrated ESD protection and internal input/output matching. The transistor is available in an air cavity SOT1250 plastic package and is ideal for consumer/commercial cooking, industrial, scientific and medical applications. Click here to view specs.

2 to 18 GHz DLVA with 45 dB Dynamic Range

The A15-ML055 from Akon is a Detector Log Video Amplifier (DLVA) that operates from 2 to 18 GHz. It has a dynamic range of 45 dB and Tangential Signal Sensitivity (TSS) of -42 dBm. This DLVA has an excellent log slope variation and has fast rise and fall times of 20 nS and 150 nS. It is available in a ruggedized package that measures 2.5 x 1.5 x 0.44 inches and is ideal for Military, Space and Industrial applications. Click here to view specs.

3-Way Power Divider from 350 to 1000 MHz

The PD2430 is a 3-Way power divider/combiner that operates from 350 to 1000 MHz. This Wilkinson power divider passes DC current to all ports making it ideal for use in active systems. It has an insertion loss of less than 1 dB, isolation of over 18 dB and a VSWR of 1.35:1. The divider has an amplitude balance of 0.3 dB and phase balance of less than 4 degrees. It is available in a module with SMA connectors. This power divider covers the UHF band and can be used for RFID applications as well. Click here to view specs.

20 dB RF Coaxial Attenuator from DC to 18 GHz

The 03.02.620 from Hytem is a RF Coaxial Attenuator that operates from DC to 18 GHz. This 20 dB attenuator can handle an input power of up to 100 watts. It is available with SMA male/female connectors. Click here to view specs.

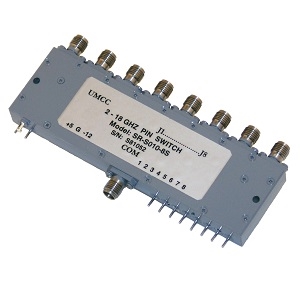

SP8T Pin Diode Absorptive Switch from 2 to 18 GHz

The SR-S010-8S from UMCC is an absorptive SP8T PIN-switch that operates from 2 to 18 GHz. It can handle an input power of up to 27 dBm, has an insertion loss of less than 3.9 dB, an isolation of more than 60 dB and switching speed of 80 ns. The switch requires a supply voltage of -12 / +5 V while consuming up to 260 mA of current. It is available in a module with SMA female connectors. Click here to view specs.

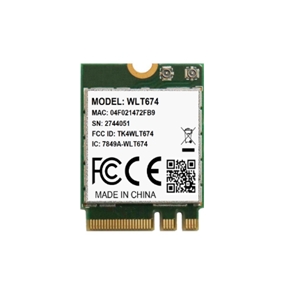

Dual Band 2.4GHz / 5GHz WiFi + Bluetooth Combo Module

The WLT674 from Compex Systems is a Dual Band Wi-Fi (2.4/5 GHz) and Bluetooth Low Energy module. It is based on Qualcomm Atheros QCA6174A-5 chipset and supports 2x2 MIMO with two spatial streams. It also supports BT-WLAN coexistence and ISM-LTE coexistence. The module requires a 3.3V DC power supply and measures 22mm × 30mm × 3mm. It is ideal for use in medical devices, security systems, robots, video streaming, PoS, digital signs, gaming machine, medical equipment, tablet PCs, handheld devices and thin client devices. Click here to view specs.

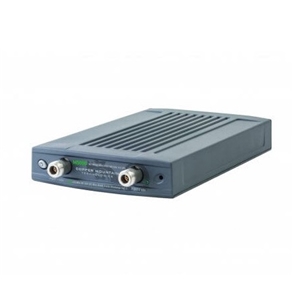

8.5 GHz VNA with Metrology-Grade Performance

The M5090 from Copper Mountain Technologies is a 2-port, 8.5 GHz Vector Network Analyzer that delivers metrology-grade performance. This computer-controlled VNA has a dynamic range of 130 dB, a measurement speed of 70 µs and can be used to measure all four S parameters (S11, S21, S12, S22). The ports are matched to 50 ohms. The VNA is delivered with factory calibration certificates containing no data. The add-on option for ISO17025/Z540-1 Accredited, Traceable Calibration Certificate and Uncertainties is available and needs to be specified at the time of order. Click here to view specs.

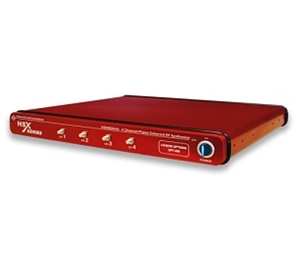

10 MHz to 40 GHz, Phase Coherent, Multi-Channel RF Synthesizers

The HSX Series are broadband, phase coherent frequency sources that are available in five frequency configurations from 10 MHz to 3 GHz, 6 GHz, 12 GHz, 24 GHz and 40 GHz. They exhibit industry leading phase noise and spectral purity performance coupled with a highly accurate dynamic range of +20 dBm to -110 dBm. They are available in 1, 2, 3 or 4 channel Custom COTS models that can be ordered with any combination of frequency options. The HSX Series exhibits optimal phase coherency between each channel providing the ultimate in channel-to-channel stability. Click here to view specs.

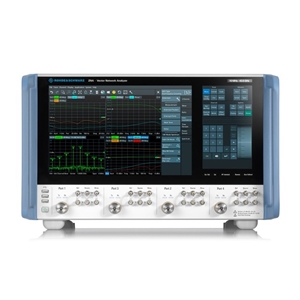

High-End VNAs from 10 MHz to 26.5/43.5 GHz

The R&S ZNA series of 2/4 ports high-end vector network analyzers operate from 10 MHz to 26.5/43.5 GHz (R&S ZNA26/43). These VNAs are a powerful, universal test platform for characterizing active and passive DUTs. They provide an outstanding dynamic range of 146 dB and a trace noise as low as 0.001 dB at 1 kHz IF bandwidth. These VNAs have an unique hardware concept, they can perform mixer measurements for RF and IF in parallel, delivering measurement speed twice as fast as with the conventional approach. The VNAs have a 100 dB power sweep range, a pulse generator, and modulator per test port, versatile intermodulation measurement capabilities and spectrum analyzer functionality. The R&S ZNA is the first purely touch-operated vector network analyzer, using a 12.1" touchscreen as the main display and a 7" touchscreen instead of a hard key panel. Click here to view specs.

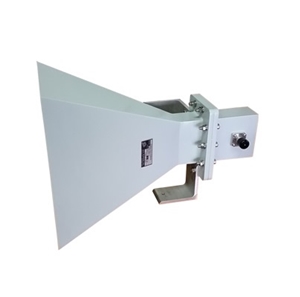

Horn Antenna from 2 to 4 GHz with 15 dBi Gain

The SAS-590-11 from AH Systems is an octave band horn antenna that operates from 2 to 4 GHz. This antenna provides a gain of up to 15 dBi and can handle up to 300 watts of avg. power and 3K watts of peak power. It has a WR-320 to N-Type female adapter at the connection interface and is matched to 50 ohms. The antenna has a low VSWR of 1.5:1 and is excellent for both immunity and emissions testing. It has been pre-calibrated up to 1 meter. Click here to view specs.

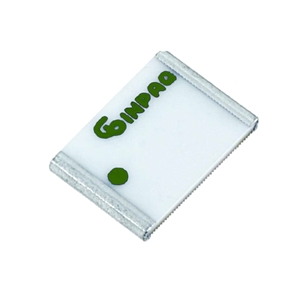

2.4/5 GHz Chip Antenna for Automotive Applications

The VGAP-CLB-AS-A1 from INPAQ is a 2.4/5 GHz automotive chip antenna that delivers a gain of up to 3.5 dBi with an efficiency of 81 %. The antenna is available in a surface mount package that measures 5.2 x 3.7 x 0.7 mm and is ideal for 5G automotive applications. Click here to view specs.
