9 kHz to 50 GHz PXI Vector Signal Analyzer

The M9393A is a PXI vector signal analyzer from Keysight Technologies that operates from 9 kHz to 8.4 GHz, 14 GHz, 18 GHz or 27 GHz (Now available up to 50 GHz). This signal analyzer has an analysis bandwidth of 40 MHz (standard), 100 MHz or 160 MHz. The M9393A is comprised of four individual PXIe modules - M9365A PXIe downconverter, M9308A PXIe synthesizer, M9214A PXIe digitizer, and M9300A PXIe frequency reference. The M9300A PXIe frequency reference module can be shared between multiple modular instruments. Click here to see products specs

20 GHz Vector Network Analyzer

The R&S ZNB20 from R&S is a mid range vector network analyzer with two or four test ports for the frequency range from 100 kHz to 20 GHz. It has a dynamic range of 135 dB which makes it possible to perform precise measurements on wideband DUTs or components whose behavior at low frequencies is especially important. The analyzer has a large 12.1" touch screen interface which makes it easy to control and review test results. The ports on the R&S 20 have 2.92 mm Male connectors. Click here to see products specs

High Performance Handheld Microwave Analyzers

The FieldFox Handheld RF and Microwave Analyzers from Keysight are available in multiple frequency configurations up to 50 GHz. This series of analyzers have been developed for tough working environments. They are rugged and meet most MIL-Specs. They provide high performance in a handheld form factor and weigh under 3.2 Kg. The analyzers are available in a number of combinations - Spectrum Analyzers, VNA, Cable & Antenna Analyzers. Click here to see products specs

High Performance 2 & 4 Port Vector Network Analyzer Series

The Keysight E5080A are high performance 2 and 4 port Vector Network Analyzers that are available in 4.5 GHz, 6.5 GHz and 9 GHz configurations. When compared to the popular E5071C ENA, the E5080A offers a number of performance advantages which include a wider dynamic range (typically 147 dB) and faster measurement speeds - 10 times faster in real-world test scenarios. These enhancements improve precision and throughput in the testing of RF components such as filters with deep rejection bands. The new ENA uses the Keysight PNA and PXI Series software architecture, making it easier for engineers to take measurements across multiple Keysight VNAs. They also have an intuitive large screen touch screen interface. Click here to see products specs

High-Performance Signal & Spectrum Analyzers

The R&S FSW series of signal and spectrum analyzer are high performance analyzers that operate at frequencies up to 85 GHz (2 Hz to 85 GHz (8, 13.6, 26.5, 43.5, 50, 67 and 85 GHz). The analyzers have a low phase noise of -137 dBc, wide analysis bandwidth of 160 MHz and a straight forward and intuitive interface with a hight resolution 12" touch screen. Click here to see products specs

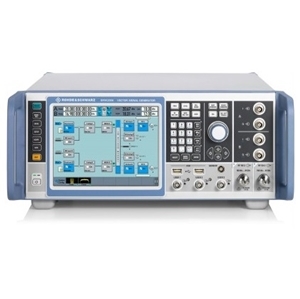

Vector Signal Generator for applications up to 6 GHz

The R&S SMW200A from Rohde and Schwarz is a touch screen vector signal generator which can generate signals of up to 3 or 6 GHz. It can provide up to 18 dBm of an output power, has a phase noise of -139 dBc/Hz and a setting time of 1 ms. The R&S SMW200A is ideal for generating complex, digitally modulated signals for the communication, aerospace and defense sectors. The Fading scenarios such as 2x2 MIMO, 8x2 MIMO for TD-LTE and 2x2 MIMO for LTE-Advanced carrier aggregation can be simulated easily. It can also be equipped with an optional second RF path for frequencies up to 6 GHz. Click here to see products specs

54 MHz to 13.6 GHz USB Signal Generator

The SynthHD from Windfreak Technologies is a dual channel software tunable RF Signal Generator and frequency sweeper that operates from 54 MHz to 13.6 GHz. It is controlled and powered by a device running Windows or Android via USB port. The generator has two independent channels can be configured to run as two different frequencies, or the same frequency with different phases. It can generate signals with an output power from -50 to 18 dBm. The SynthHD has non-volatile on board memory and can be programmed to fire up by itself on any frequency, power, sweep and modulation setting to run stand alone in the field. Click here to see products specs

20 MHz to 6 GHz Programmable Signal Generators

The Lab Brick LSG Series from Vaunix is a range of USB-compatible signal generators that operate from 20 MHz to 6 GHz. They can be used in Automated Test Equipment (ATE), portable LO source and engineering/production test lab applications. The generators have high output levels and excellent spectral purity. They are powered and controlled via USB and require no additional DC supply voltage. They offer several operating modes, including continuous-wave (CW) and swept-frequency. Each device comes with a USB flash drive containing the GUI software and digital version of the programming guide, along with a 6-ft. USB cable. All Lab Brick LSG signal generators are ROHS compliant and can be used with any PC or laptop computer with USB 2.0 port (or powered USB hub) and Windows 2000, XP, Vista, or Windows 7 operating system. They measures 4.90 x 3.14 x 1.59 in. (124 x 80 x 40 mm) and weigh less than 1 lb. (0.45 kg). Click here to see products specs

EMC & RF Power Meters from 9 kHz to 18 GHz

The RadiPower® are RF power meters designed for CW power measurements during EMC testing. This series of power heads can measure RF power from 9 kHz to 18 GHz (two options available - 9 kHz to 6 GHz and 80 MHz to 18 GHz). These power meters can measure CW power with a power range from -55 dBm to 10 dBm and an accuracy of 0.2 dB. The power heads are available with N Type connectors and can be controlled via USB. Click here to see products specs

USB/Ethernet Controlled Miniature Signal Generators

The ASG Series of Miniature Signal Generators from AtlanTecRF operate from 25 MHz to 6 GHz. They are tuneable in 1 kHz steps and can generate an output power of up to 13 dBm, controllable in 0.1 dB steps. The output signal from these modules have excellent spectral purity with a phase noise better than -106 dBc/Hz at 1 GHz with a 100 kHz offset from the carrier. Spurious are typically lower than -70dBc and harmonics less than -25dBc.

The versatile ASG digital interface provides control options which include direct USB with convenient and clearly functional GUI plus input power derivation but each unit also has the capability of being driven by RS232. Additionally, for both the 6GHz version of the ASG Miniature Signal Generator and its 3 GHz sibling there is an option of Ethernet control thereby allowing totally remote and unattended operation in the field and picking up all the logistics and cost advantages.

The ASG series of Miniature Signal Generators suitable for use in most RF application including test and measurement, communications systems and covert interception and countermeasures. The generators available in a compact module that measure just 21 x 72 x 100 mm and weigh less than 300 grams. Click here to see products specs

Handheld Cable & Antenna Analyzer

The S820E is a Handheld Cable & Antenna Analyzer that is available in multiple frequency configurations - 8 GHz, 14 GHz, 20 GHz, 30 GHz and 40 GHz. The site master S829E has a 110 dB dynamic range from 20 MHz to 40 GHz, can do fast field measurements - 650 &mus/data point and supports both coaxial and waveguide measurements. It can carry out Return Loss, VSWR, Cable Loss, Distance-To-Fault, Smith Chart, Transmission Measurement and Swept Cable Loss measurements. The S802E has a 8.4 inch touchscreen with daylight/nighttime viewable modes. Click here to see products specs

Real-time Modular Spectrum Analyzers from 100 kHz to 27 GHz

The RTSA7500 Series from Berkeley Nucleonics is a range of modular real-time spectrum analyzers that are designed to analyze wireless signals in the lab, on the manufacturing floor or out in the field. They have a real-time trigger mode for measuring complex data signals such as Wi-Fi and LTE along with markers for tracking specific frequencies. These analyzers can capture elusive and time-varying signals across real-time bandwidth (RTBW) up to 100 MHz and have probability of intercept (POI) as short as 1.02 μs. They have a spurious free dynamic range up to 100 dBc and DSP filtering and decimation. Click here to see products specs

Real-Time Spectrum Analyzer and Recorder from 9 kHz to 6 GHz

The BB60C is a Real-Time Spectrum Analyzer and RF Recorder that operates from 9 kHz to 6 GHz. It has a realtime bandwidth of 27 MHz and a resolution bandwidth of up to 10 MHz. The Signal Hound BB60C is ideal for real-time spectrum monitoring, manufacturing process control, interference hunting, spread spectrum signal analysis, capturing intermittent events, and general purpose spectrum analysis. When compared to the BB60A this new model has improved SFDR (Spurious-Free Dynamic Range) by typically 20 dB the noise floor has been flattened by reducing frequency band transitions more than 8 dB operating temperatures have been extended down to -40°C and up to +65°C and streaming I/Q (In-phase Quadrature) bandwidth is now selectable from 250 kHz to 27 MHz. It is small in size and light weight, weighing only 1.1 lbs. It has good spectral purity, wide temperature range operation, broadband I/Q streaming capability, open source code spectrum analysis software. Click here to see products specs

Ultra Compact Spectrum Analyzer 2 to 8 GHz

The J0SSAP10 from SAF Tehnika is a powerful handheld spectrum analyzer that operates from 2 GHz to 8 GHz. This battery-powered device is a great tool for any microwave radio engineer performing equipment installation, link troubleshooting and site planning. The device can connect to any antenna or system via an SMA connector and has an easy to use touchscreen interface which can be used while wearing gloves. This devices is available in multiple frequency configurations up to 40 GHz. Click here to see products specs

34 MHz to 4.4 GHz Software Controlled RF Signal Generator

The Windfreak SynthNV is software controlled RF signal generator that operates from 34.4 MHz to 4.4 GHz. It includes an on board RF power detector which can be used with the sweep function as a basic RF network analyzer. The SynthNV also has non-volatile on board memory so it can be programmed to fire up by itself on any frequency, power or modulation setting. This compact and light weight signal generator can be controlled and powered by a PC running Windows XP, Windows 7, or Android via its USB port. Click here to see products specs

USB Real Time Spectrum Analyzer from 9 kHz to 6.2 GHz

The RSA306 is a compact/portable Real Time Spectrum Analyzer that uses your PC and Tektronix SignalVu-PC™ RF Signal Analysis Software to provide real time spectrum analysis, streaming capture and deep signal analysis capabilities for signals from 9 kHz to 6.2 GHz. It has options for mapping, modulation analysis, standards support, pulse measurements, and frequency settling and displays real time spectrogram to minimize time spent on transient and interference hunting. It is ideal for maintenance, installation, value-conscious design and manufacturing and interference hunting. Click here to see products specs

Real-time, Hand-Held Spectrum Analyzer Up to 20 GHz

The SPECTRAN V5 Series from Aaronia is a range of real-time, hand held spectrum analyzers that operate 1 Hz to 20 GHz. These spectrum analyzers have a real-time bandwidth of 200 MHz and can analyse the weakest signals due to low noise signal processing down to -170dBN/Hz. They have real-time streaming, ultrafast LO sweeps, high-resolution TFT touch screen display with 800x480 pixel resolution, a tracking generator and GPS. The Spectran V5 can continuously stream data and save it gap-free on a PC via USB, and has polyphase filter technology that can capture small signal detail. They are available in a small, compact design and can be controlled either by the unit&rsquos touch screen, a multifunctional jog dial, motion control, hot keys or a real-time remote control (via GSM, WLAN or USB). Click here to see products specs

High Performance Computer Controlled VNA from 100 kHz to 20 GHz

The Cobalt C1220 is a modular computer controlled Vector Network Analyzer that operates from 100 kHz to 20 GHz. It is ideal for measuring S-parameters and has a dynamic range of 145 dB. Cobalt VNAs feature hybrid dual-core DSP+FPGA signal processing engines, and new frequency synthesizer technologies. This architecture enables high performance with measurement speeds of less than < 10 µs and a frequency setting resolution of 1 Hz. The VNA can be controlled by any Windows PC or laptop. Click here to see products specs

USB Controlled 1 Port Vector Network Analyzer from 150 kHz to 6 GHz

The ShockLine MS46121A Series is a 1 Port USB controlled VNA (Vector Network Analyzer). It is available in two frequency options from 40 MHz to 4 GHz and 150 kHz to 6 GHz. It provides performance and accuracy for 1 port measurements in a low cost and compact solution that can connect directly to the device under test. This series of VNA's can be controlled via USB by the ShockLine software installed on any PC. Up to 16 independent MS46121A VNAs can be operated in parallel from the same computer running ShockLine software (using a USB hub). These VNA's are ideal for RF and microwave applications in manufacturing, engineering and education. Click here to see products specs
